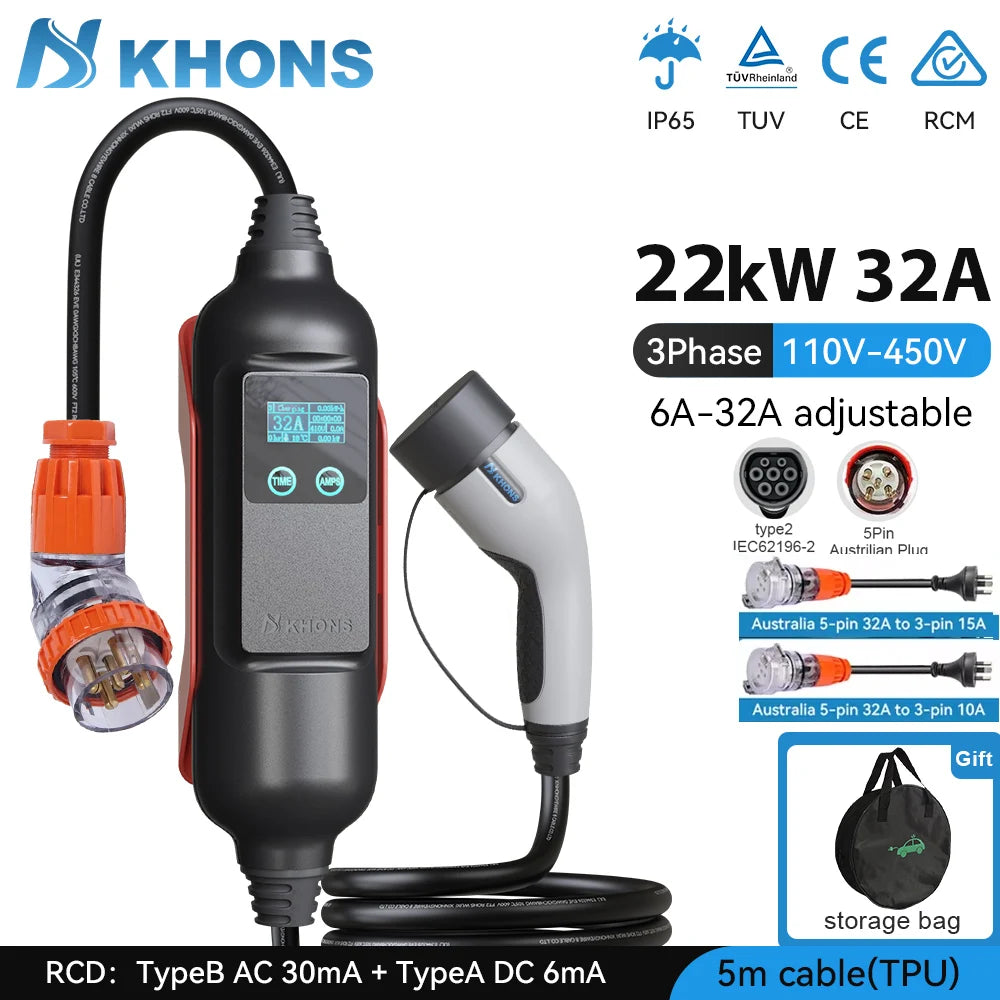

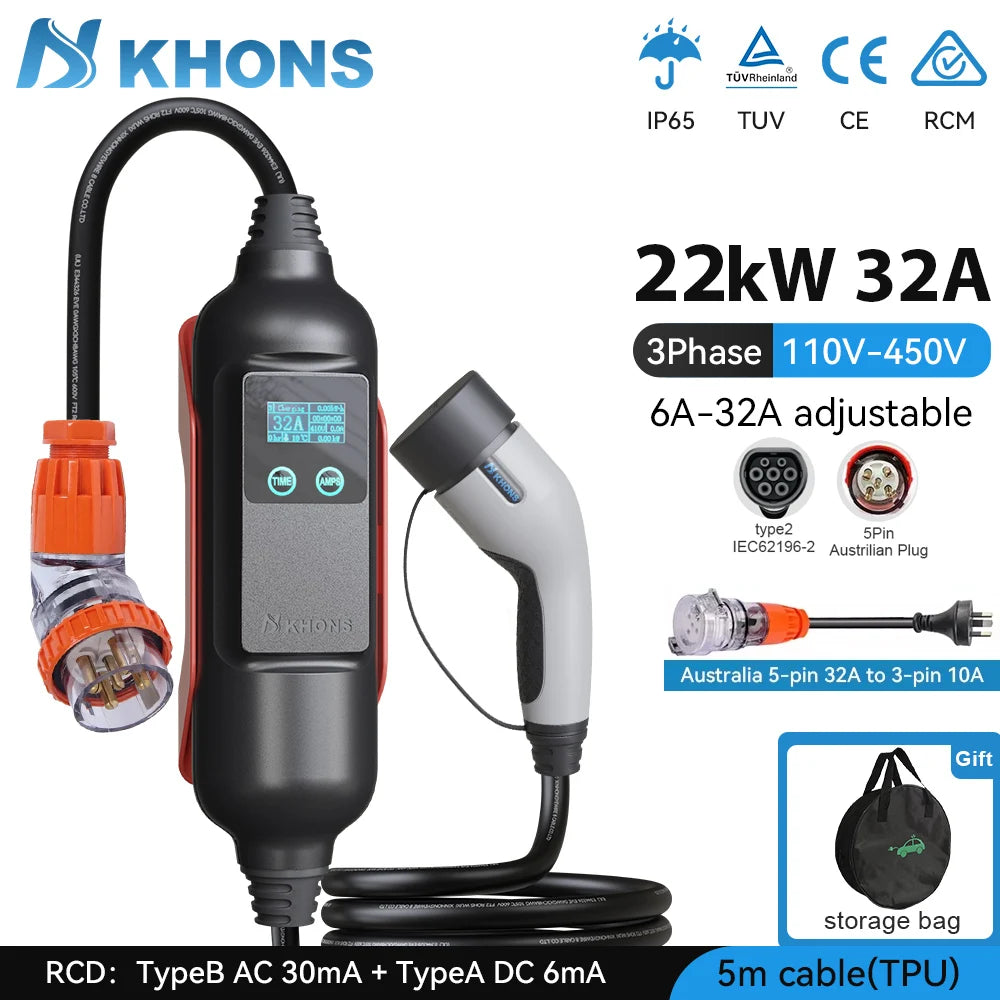

32A three-phase 22kw
Can operate between 110V-450V
Adjustable 6A-32A current
The charging start time can be set to 1-9 hours
Bluetooth 5.2
Wireless network 2.4G
5m TPU cable

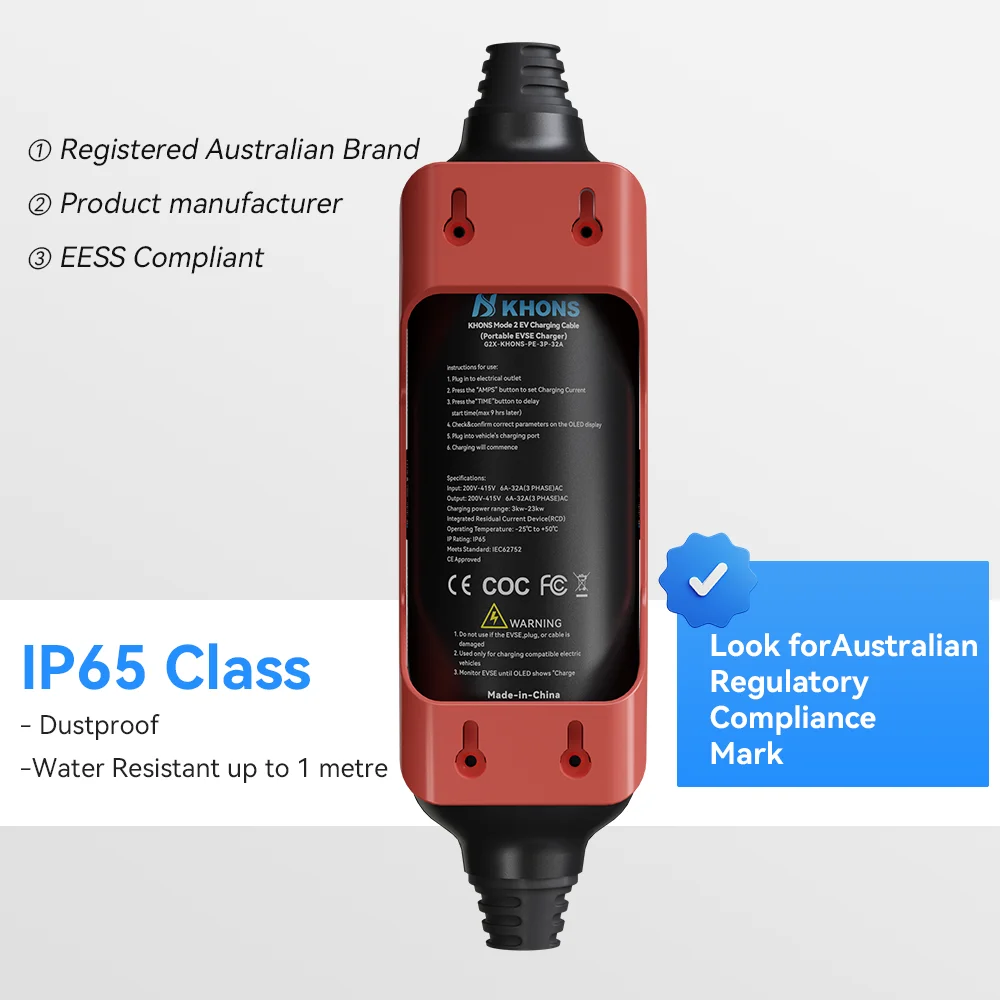

IP65
Privacy is protected
Dynamic load balancing

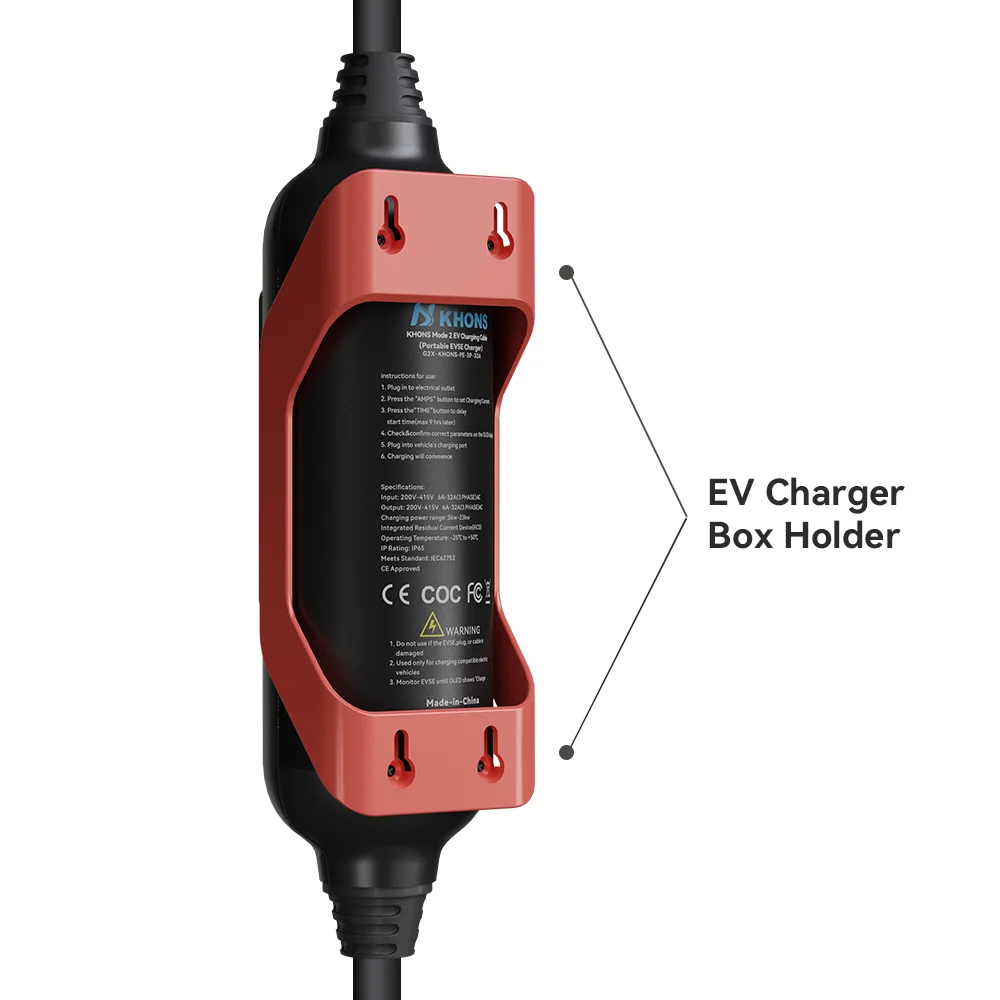

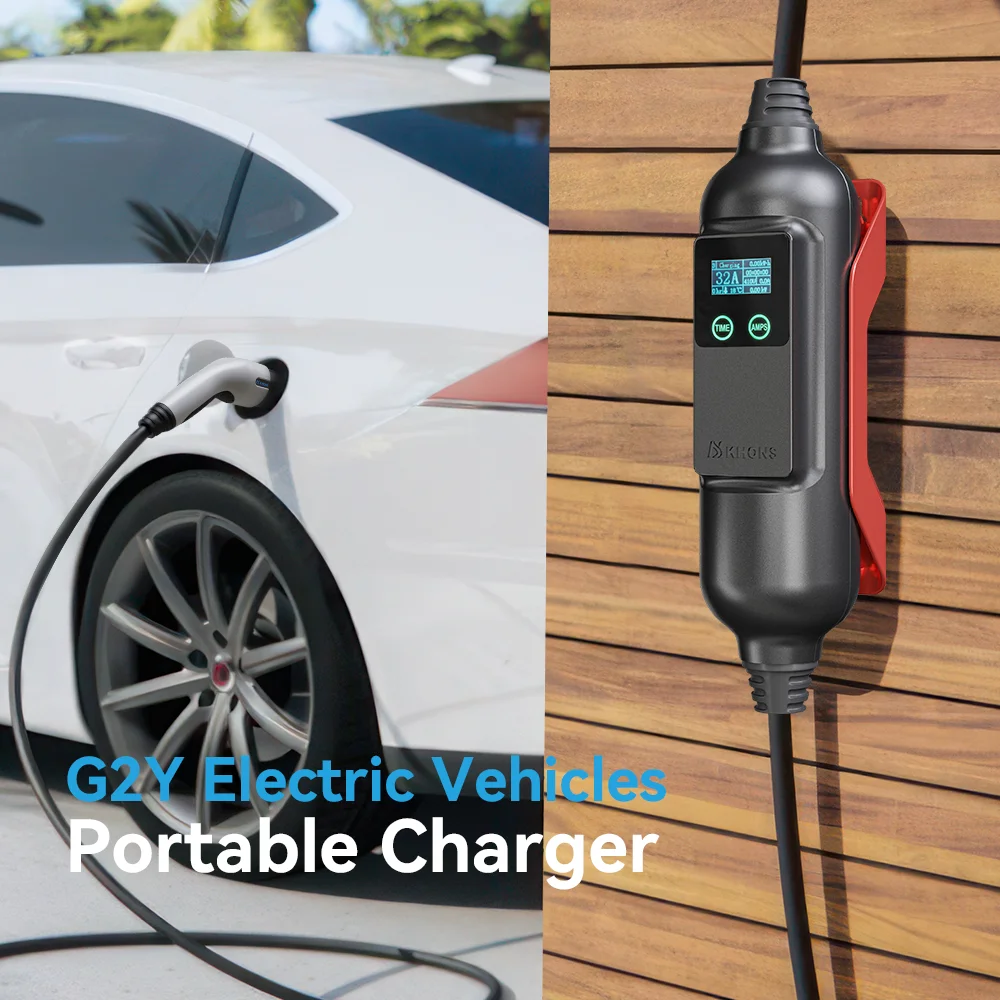

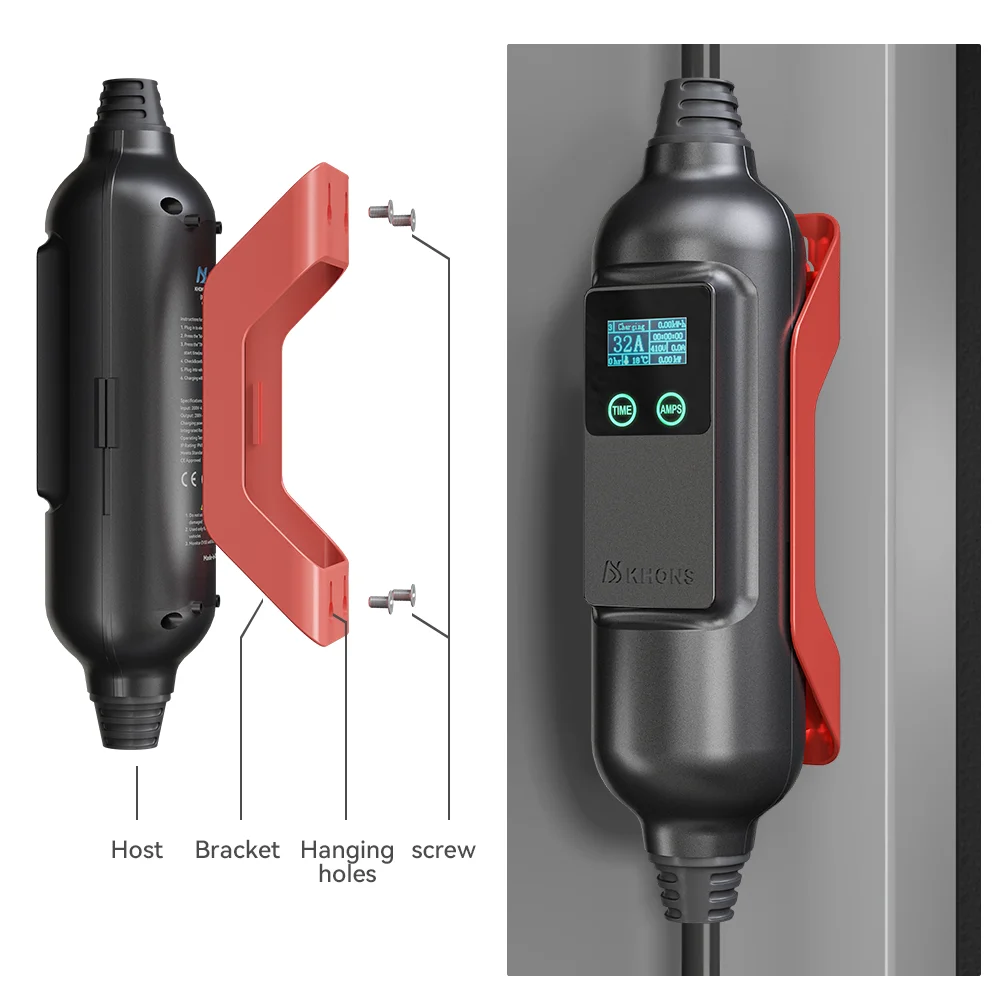

Portable/wall mounted
RCD: Type A AC 30mA+DC 6mA
Standard: IEC62196

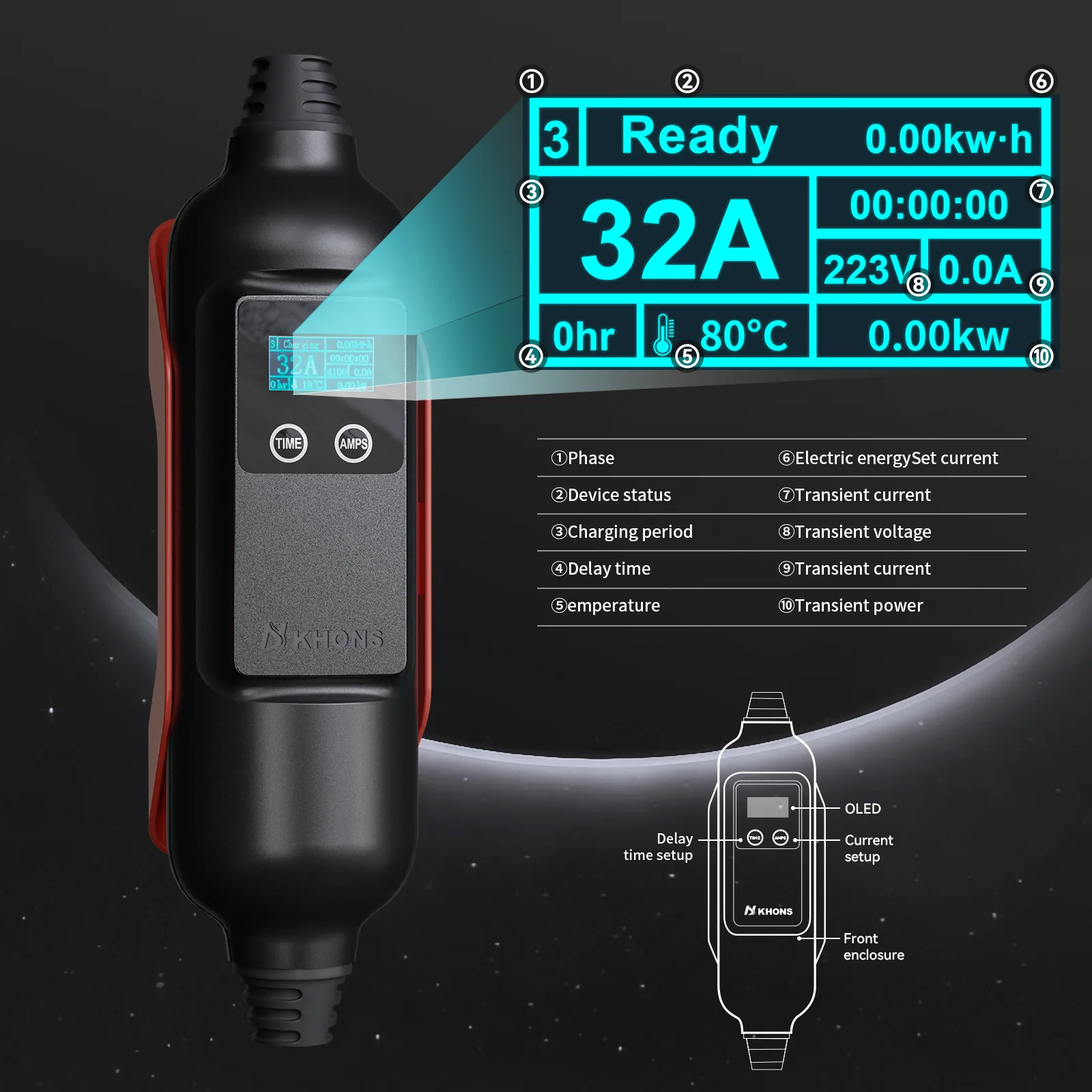

Screen size: 1.54 inches
Cable specifications:5*6mm²+1*0.75mm²/2*0.5mm²
Certificates: CE, ROHS, FCC, CQC, TUV, UKCA, TSE, UL, RCM, etc
Warranty: 2-year warranty

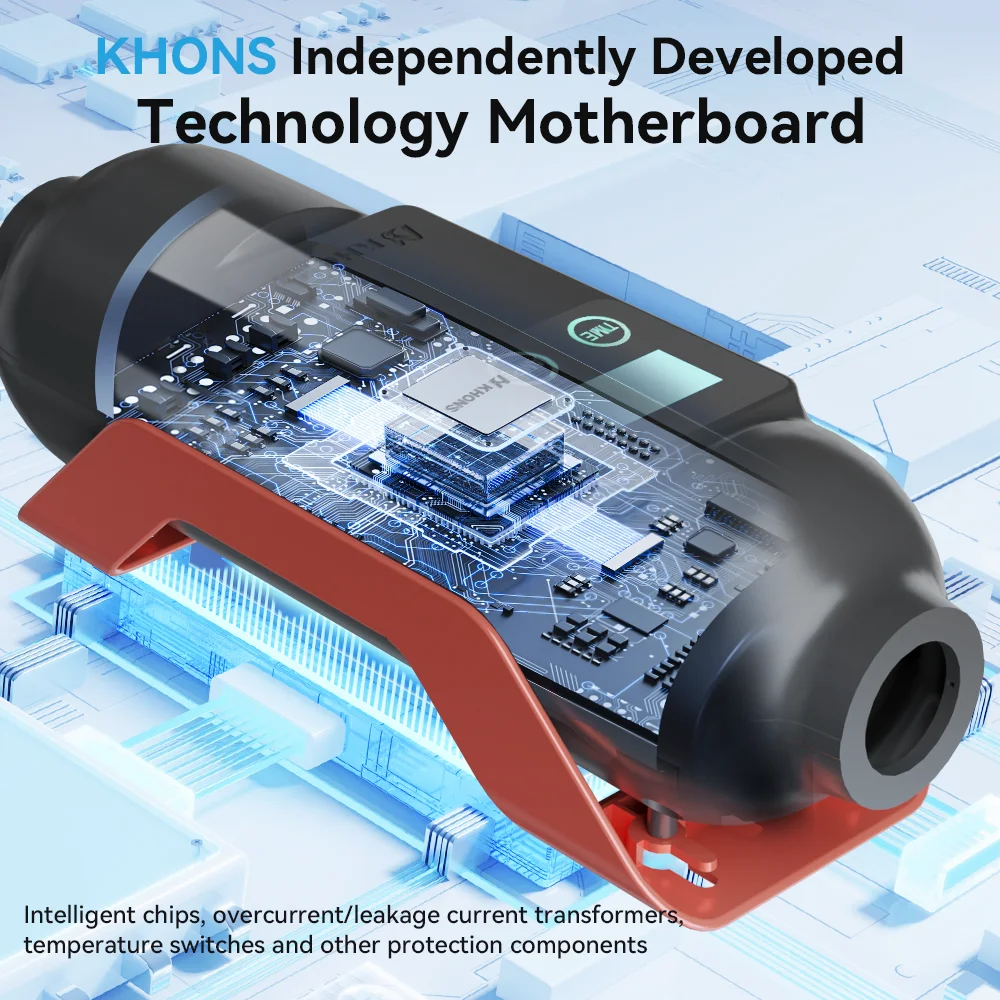

Electrical Protection:
Under voltage protection
Short circuit protection
Over temperature protection
Ground protection
UV resistance
Over voltage protection
Over load protection
Leakage protection
Lightning protection
Usage:
1. First charging method: Insert the plug into the socket, then remove the phone, download the application, and connect the device through WiFi and Bluetooth. After successful connection, adjust the current and schedule charging time through your phone. Then insert the plug into the vehicle and start charging.

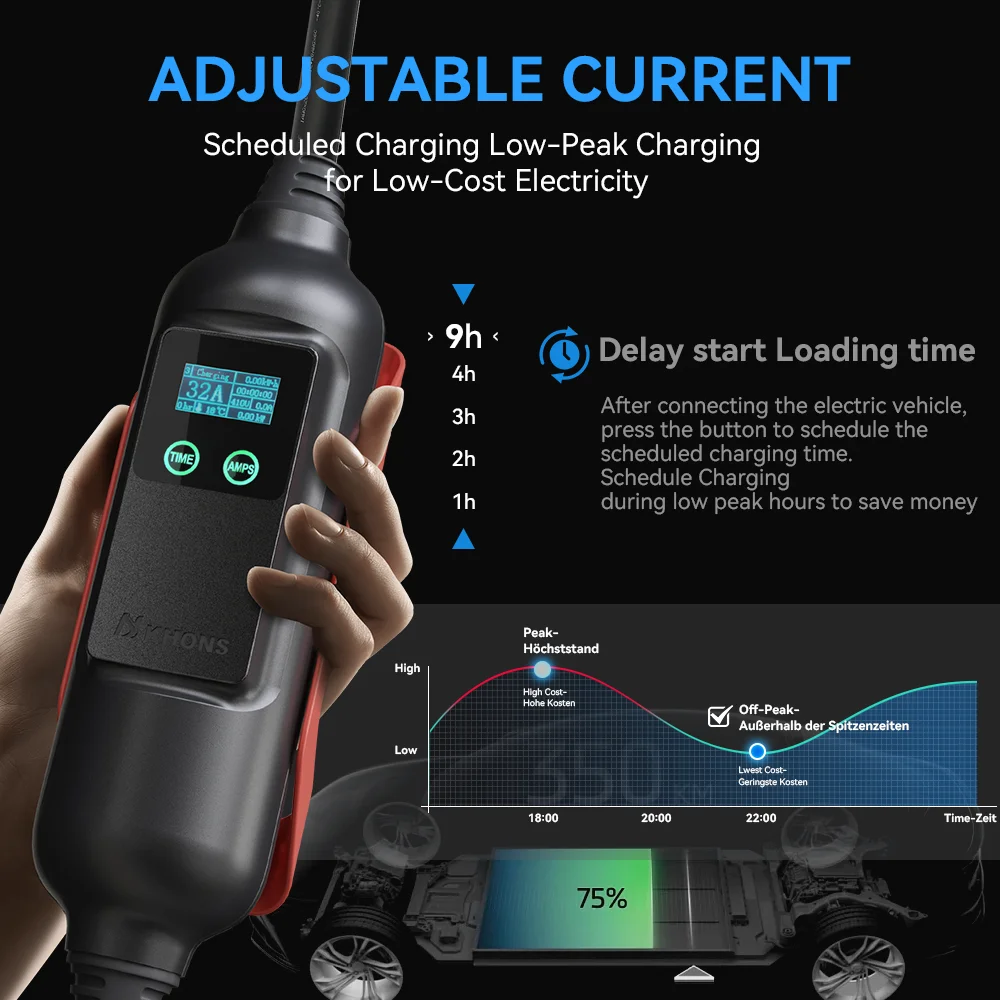

2. The second charging method is to insert the plug into the socket, set the required charging current through the "AMPS" button on the device, press the "TIME" button to set the charging start time (can be set to 1h-9h), then insert the plug into the vehicle and start charging.

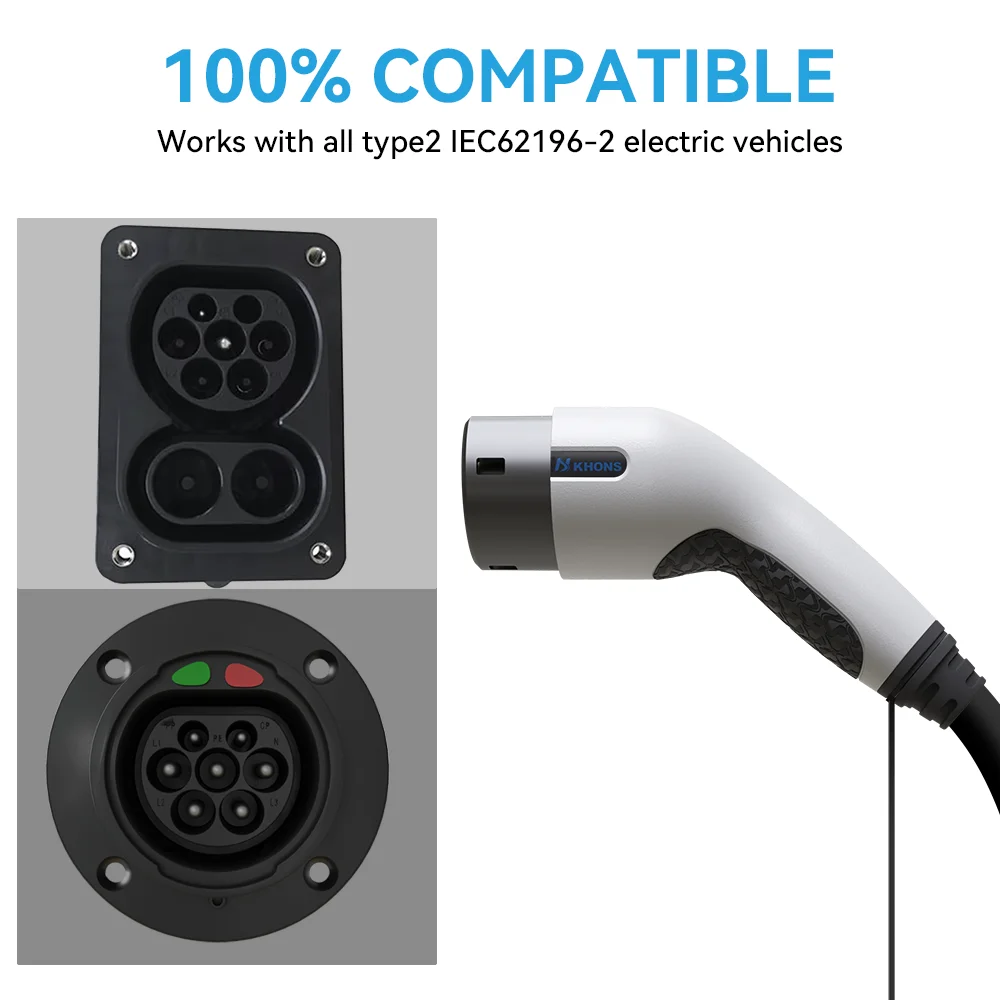

Our products are compatible with Toyota, Tesla, MG, Renault, BYD, BMW, Nissan, Audi, Mercedes Benz, Kia, Volvo, Volkswagen and other vehicles. In fact, our product is compatible with all pure electric and hybrid vehicles
Our EV charger are made of TPU cable material, which is lighter, has a longer lifespan, higher hardness, better temperature resistance, and better wear resistance than traditional TPE cables.
