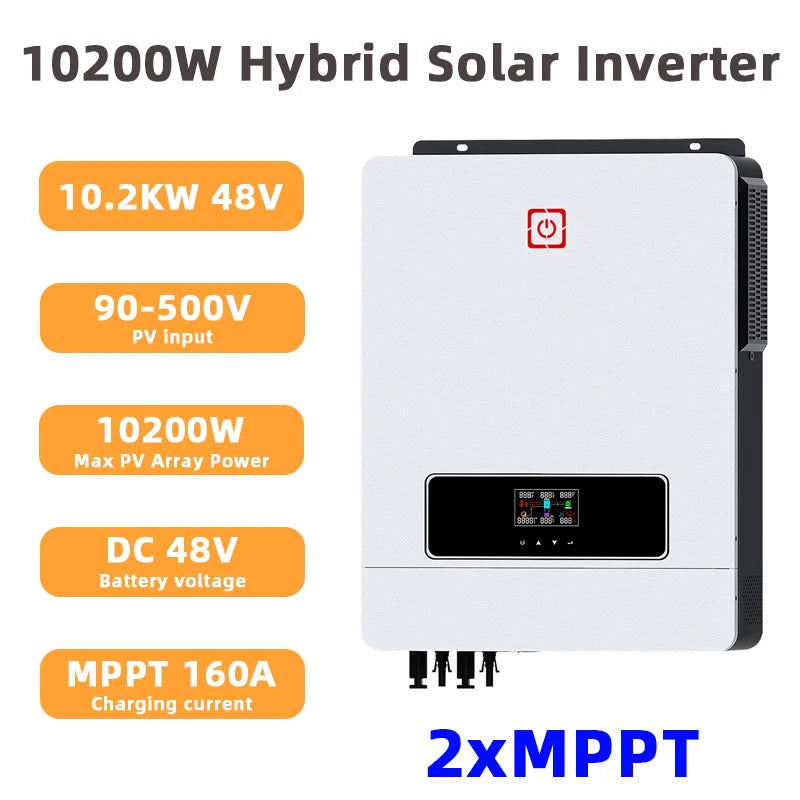

Y&H Hybrid Solar Inverter 1KW 1.6KW 1.8KW 3KW 4.2KW 6.2KW 10.2KW 220Vac MPPT Pure Sine Wave Inverter Solar Charger Controller
4.3 (63 items)
Limited Time Sale$146.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 203022793 | Release Date | 2025/09/21 | List Price | $147.00 | Model Number | 203022793 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Note：DO NOT CONNECT THE SECOND OUTPUT TO THE GRID,IT WILL DAMANGE YOUR INVERTER

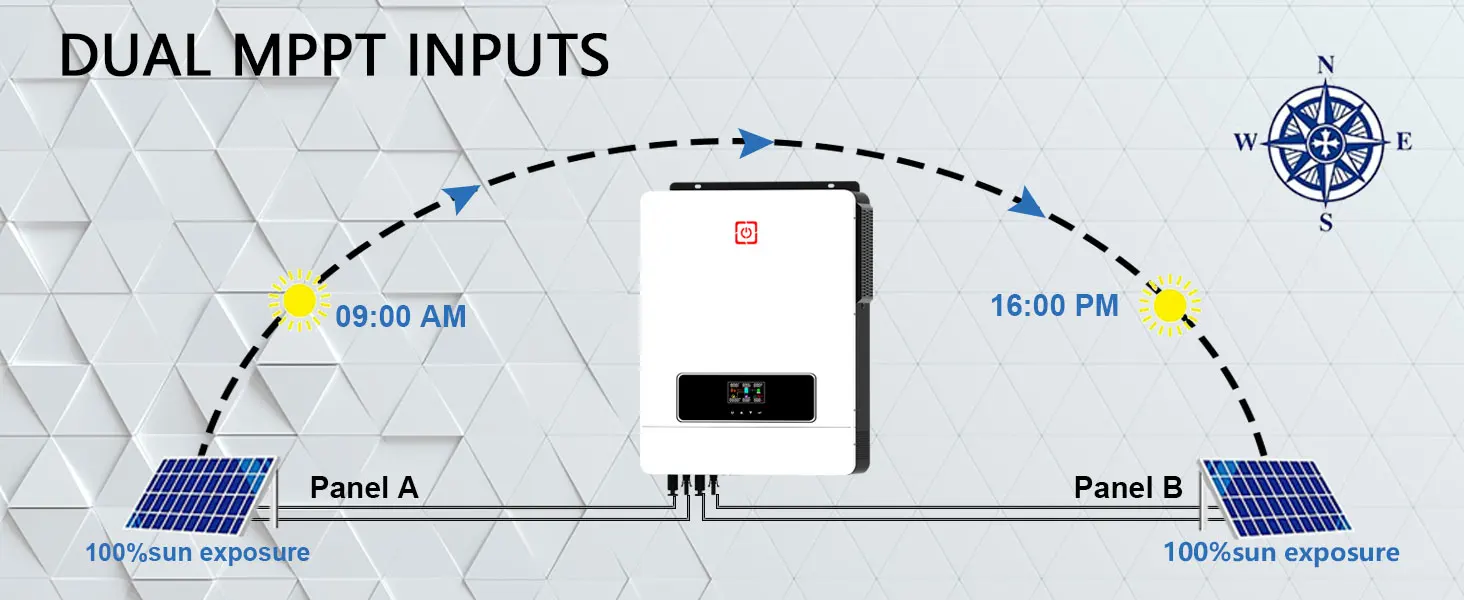

This inverter has been upgraded with 2*MPPT, please feel free to buy it!

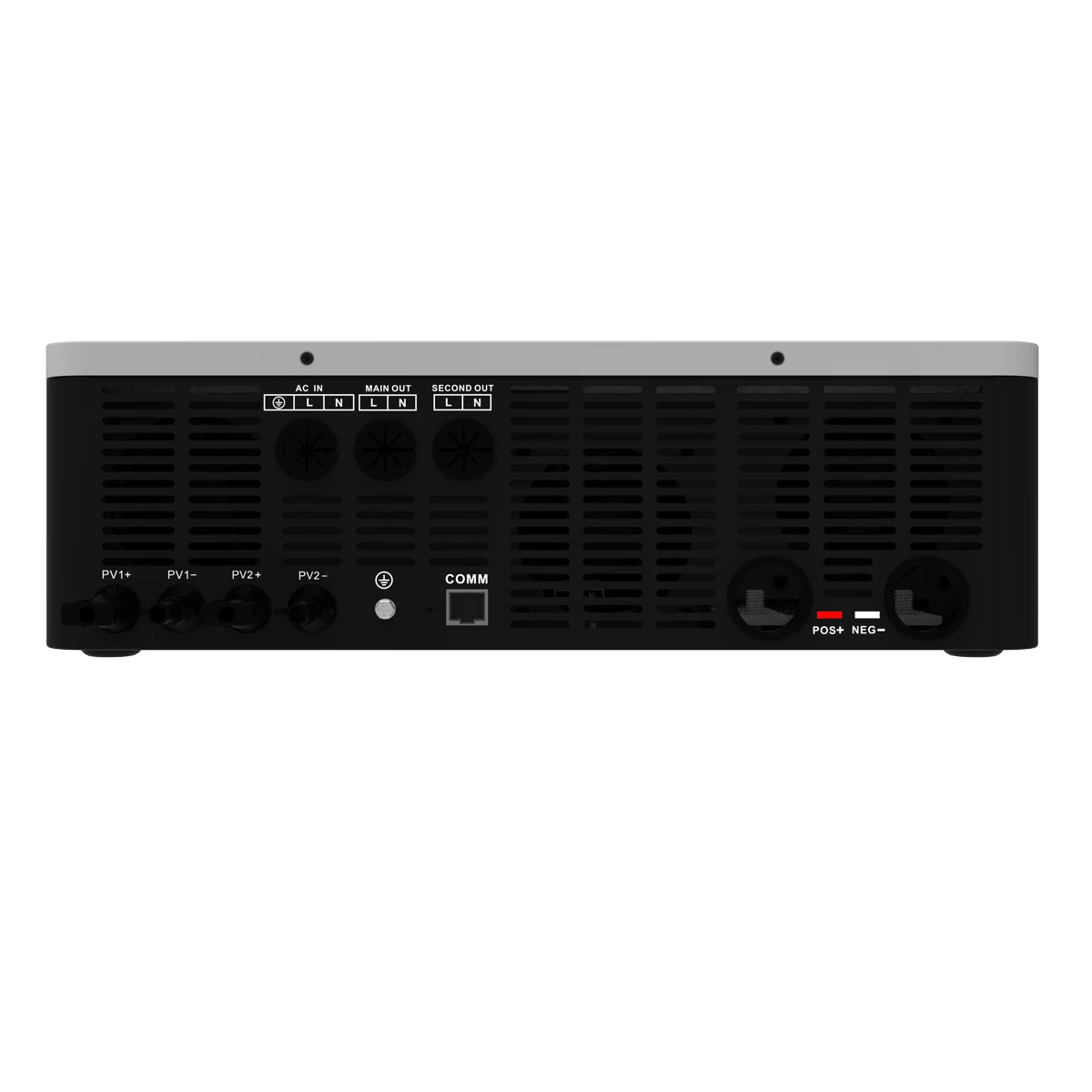

Dual AC output: under normal conditions, the main circuit and secondary circuit outputs are used normally. When there is no PV and mains power input and the battery voltage is too low, the main circuit is disconnected and only the secondary circuit output is retained to save power.
Otherwise, you don't need to connect to the second output.
Features of 48V DC solar power inverter：

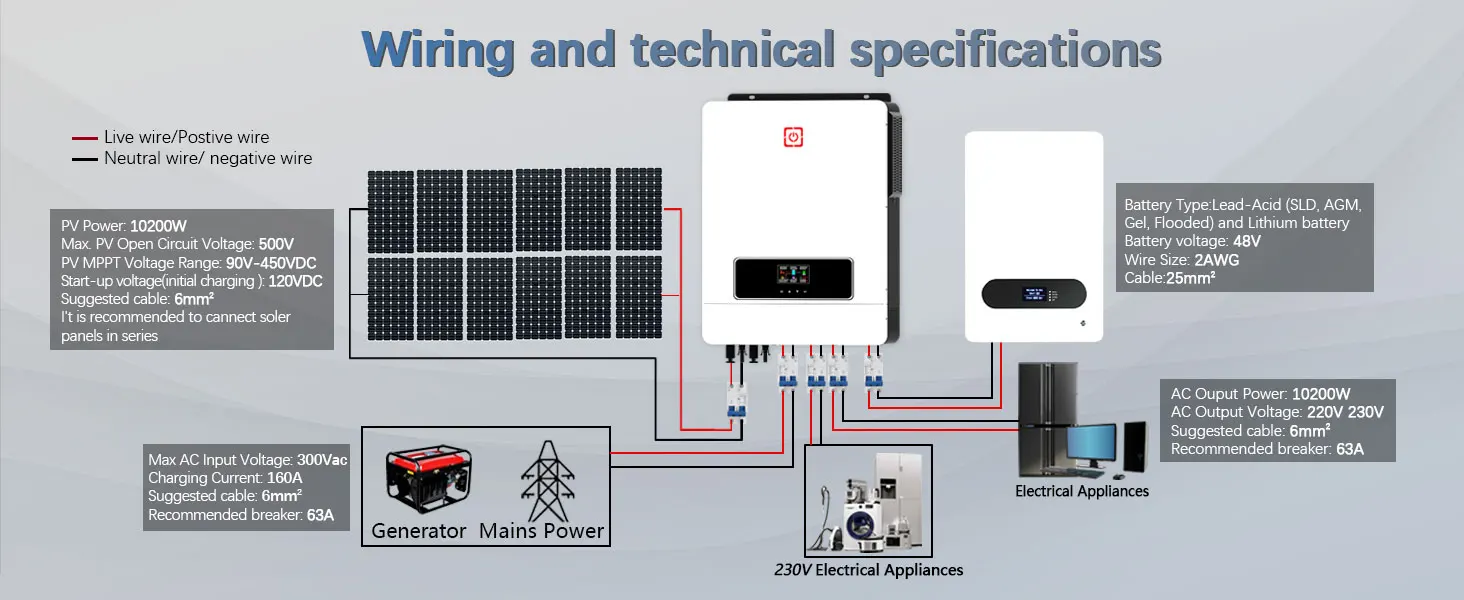

Basic System Architecture:
2.PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.
Pure sine Wave Inverter:

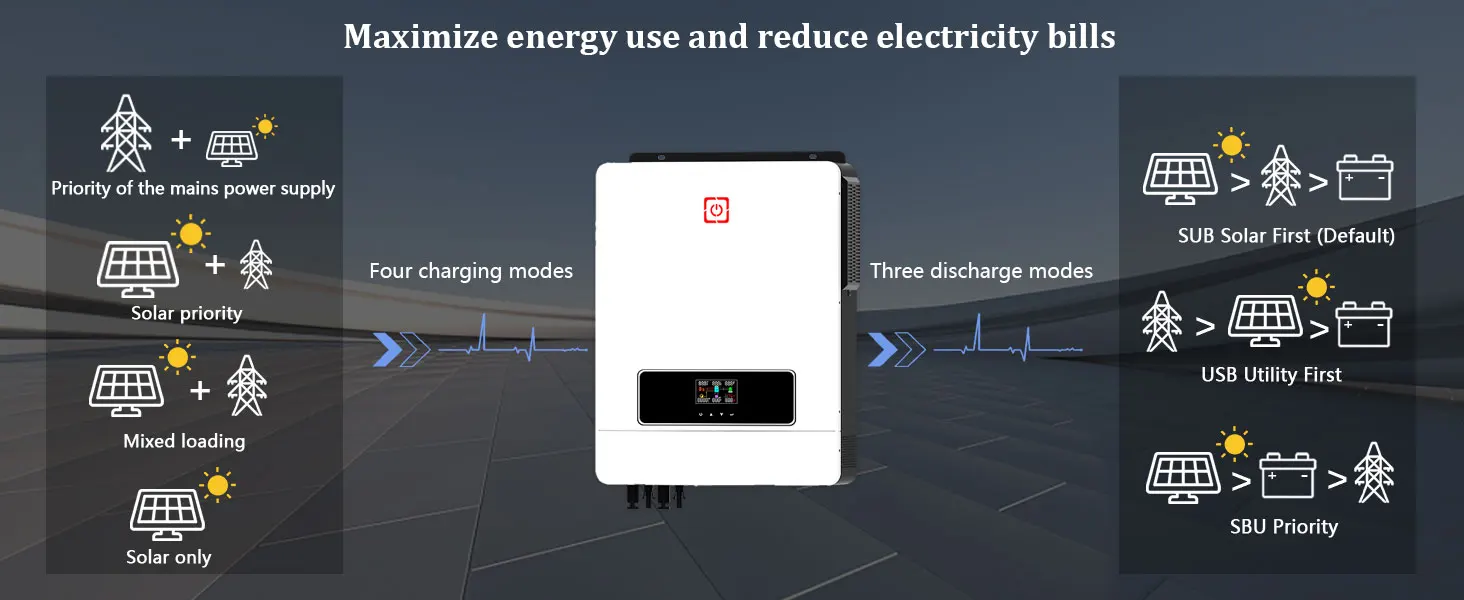

Four modes can be choose when charging battery:
SBU Priority: Solar energy provides power tothe loads as first priority. If solar energy is not sufficient to power all connected loads, battery energy will supply power to the loads at the same time.
New features:
Built-in BMS function. Lithium Battery Activation， has a reactivation feature to awaken a sleeping lithium battery. The small charge current to activate the protection circuit and if a correct cell voltage can be reached, it starts a normal charge.Dual AC output, one for the main load (UPS function), one for the conventional load
WIDE RANGE OF USES：
MPPT Inverter Charger Pure sine Wave 10200W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.（Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running. Avoid affecting your rest
Parameters:
INVERTER MODEL |
8.2KW |
10.2KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Output Frequency |
50Hz |
|
Peak Efficiency |
93% |
|
Nominal DC Input Voltage |
48Vdc |
|
High DC Recovery Voltage |
62Vdc |
|
High DC Cut-off Voltage |
63Vdc |
|
No Load Power Consumption |
70W |
75W |
Two Load Output Power | ||
Full Load |
8200W |
10200W |
Maximum Main Load |
8200W |
10200W |
Maximum Second Load(battery model) |
2733W |
3400W |
Main Load Cut Off Voltage |
44VDC |
|
Main Load Return Voltage |
48VDC |
|
Utility Charging Mode | ||
AC Charging Current(Max) |
140Amp |
160Amp |
Floating Charging Voltage |
54Vdc |
|
MPPT Solar Charging Mode | ||
Max.PV Array Power |
8200W |
10200W |
Nominal PV Voltage |
360Vdc |
|
PV Array MPPT Voltage Range |
90Vdc~500Vdc |
|
Max.PV Array Open Circuit Voltage |
500Vdc |
|
Max Charging Current |
160Amp |
160Amp |
Grid-Tie Operation | ||
Nominal Output Voltage |
220/230/240VAC |
|
Feed-in Grid Voltage Range |
195~253VAC |
|
Feed-in Grid Frequency Range |
49~51±1Hz/59~61±1Hz |
|
Nominal Output Current |
35.6A |
44.3A |
Power Factor Range |
>0.99 |
|
Maximum Conversion Efficiency |
98% |
|
General Specifications | ||
Safety Certification |
CE |
|
Operating Temperature Range |
-10℃ to 50℃ |
|
Storage temperature |
-15C~60℃ |
|
Humidity |
5%to 95% Relative Humidity(Non-condensing) |
|
Dimension(D*W*H),mm |
537*390*130 |
|
Net Weight,kg |
14.2 |
14 |
