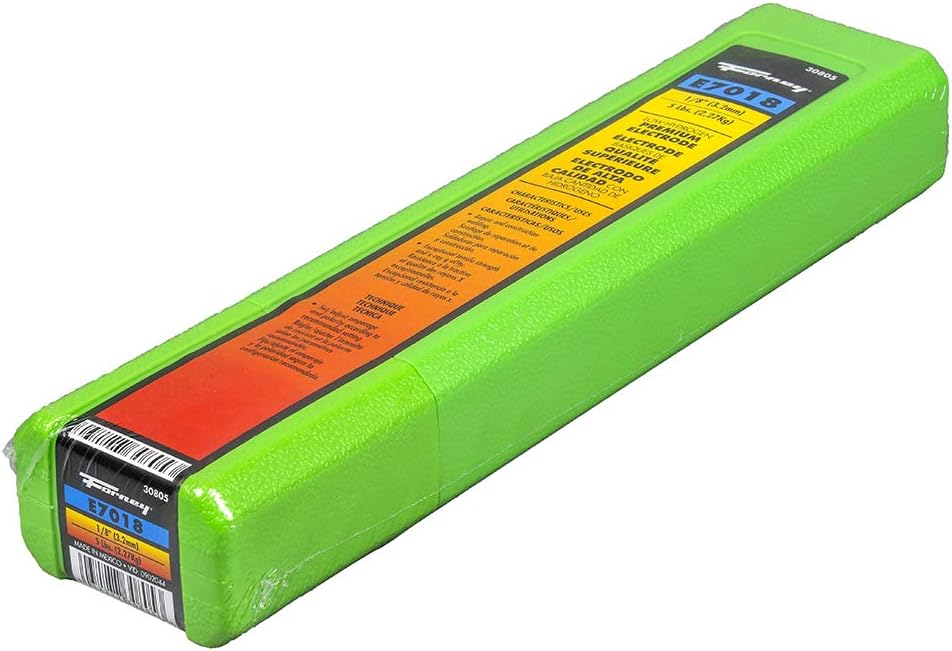

Forney 30910 E7018 Welding Rod, 5/32-Inch, 10-Pound

The Forney 30910 7018 Mild Steel Low Hydrogen Welding Rod produces quality results on low amperage DC welders and higher amperage AC welders. Suitable for all positions on hard enable steels without preheating. Good on cold rolled steels without preheating. Good on cold rolled sheets that do not react well with conventional rod. The low hydrogen content reduces cracking and peeling of the weld material. 5/32-Inch ie. 3. 96 mm diameter rod. 10-Pounds ie. 4. 53 kg. Tensile Strength 70, 000 PSI. Amperage 110-210 Amps DCEP Reverse or AC. Typical Spec Example E6011: E is for electrode. The next two numbers ie. 60, 70 or 80 indicates the tensile strength of the rod for example 60, 000. The third number tells the welding position; ie. 1=All position ie. 2=Flat or Horizontal position ie. 4=Flat, Horizontal, Overhead and Vertical Down position. The fourth number indicates the type of current to be used and coating of the rod; ie. 0=Cellulose Sodium, with deep penetration, use Direct Current Electrode Positive ie. 1=Cellulose Potassium, with deep penetration, use AC or Direct Current Electrode Positive, or Direct Current Electrode Negative ie. 3=Titania Potassium, with light penetration, use AC or Direct Current Electrode Positive ie. 8=Low Hydrogen, Iron Powder, with medium penetration use AC or Direct Current Electrode Positive. Claims for must be made within 90 days of the date of purchase. Proof of purchase required. This does not cover any product that has been subject to misuse, neglect, negligence, or accident, or that has been used in any way contrary to the purpose intended. Forney Industries is one of America's longest operating family-owned metal working product companies. Founded in 1932, Forney offers more than 5,000 products for the hardware, automotive, farm and ranch and do-it-yourself markets. If you have got metal working questions, we have answers. We are committed to your success regardless of location size or needs.

• EASY TO USE: Low spatter and superior slag removal. Virtually self cleaning in vertical down fillets.
• GENERAL PURPOSE: All position welding, low hydrogen rod for general purpose AC applications requiring low penetration, can also be used on DC+
• USES: All types of mild steel where ease of operation and good appearance is required. Great for light gauge metal, sheet metal, duct work, etc. Smaller sizes of rod are well suited to low heat on thin metals.
• UP TO THE CHALLENGE: Designed for welding head enable steels and projects involving hard to weld steels including thick sections and restrained joints with cracking issues
• EXCELLENT WELDS: Excellent wetting action, yielding smooth and flat beads with steady arc with either AC or DC. Excellent for poorly fitted joints. Ideal for general fabrication of cold roll steels
