ApplianPar Air Conditioner A/C Compressor Clutch Assembly with Plate Pulley Bearing Coil Kit for Chrysler 300 2011-2013 Jeep Grand Cherokee 2011-2016 Dodge Charger 2011-2013 Challenger Durango

Replaces part numbers: 68084274AB, 68084274AA, 68294506ACApplicable for Jeep Grand Cherokee 2011-2016; for Dodge Charger 2011-2013, Challenger 2011-2014, Durango 2011-2015Applicable for Chrysler 300 2011-2013, 3.6LClutch installation instructions:Before replacing the clutch1. Make sure it is a clutch failure, such as checking whether the power supply circuit is working properly. If the power supply circuit is working properly, the clutch does not engage. In this case, it needs to be replaced.2. Remove the compressor, remove the old electromagnetic clutch, check whether the compressor is damaged, and clean the front cover of the compressor and the contact surface of the coil after confirming that the compressor is not faulty.3. Install the new coil and fix it with screws or shaft retaining rings.4. Install the pulley and fix it with the shaft retaining ring. Check whether the pulley rotates and rubs against the coil. If there is friction, it is unqualified. Check the reason.5. Install the suction cup and adjust the gap to a reasonable gap between 0.4-0.6MM with a gap pad. After fixing the suction cup, power on to check whether the attraction is normal. After power off, the rotating pulley is separated from the suction cup. If there is no friction, it is qualified.

• Replaces part numbers: 68084274AB, 68084274AA, 68294506AC
• Applicable for Jeep Grand Cherokee 2011-2016; for Dodge Charger 2011-2013, Challenger 2011-2014, Durango 2011-2015
• Applicable for Chrysler 300 2011-2013, 3.6L

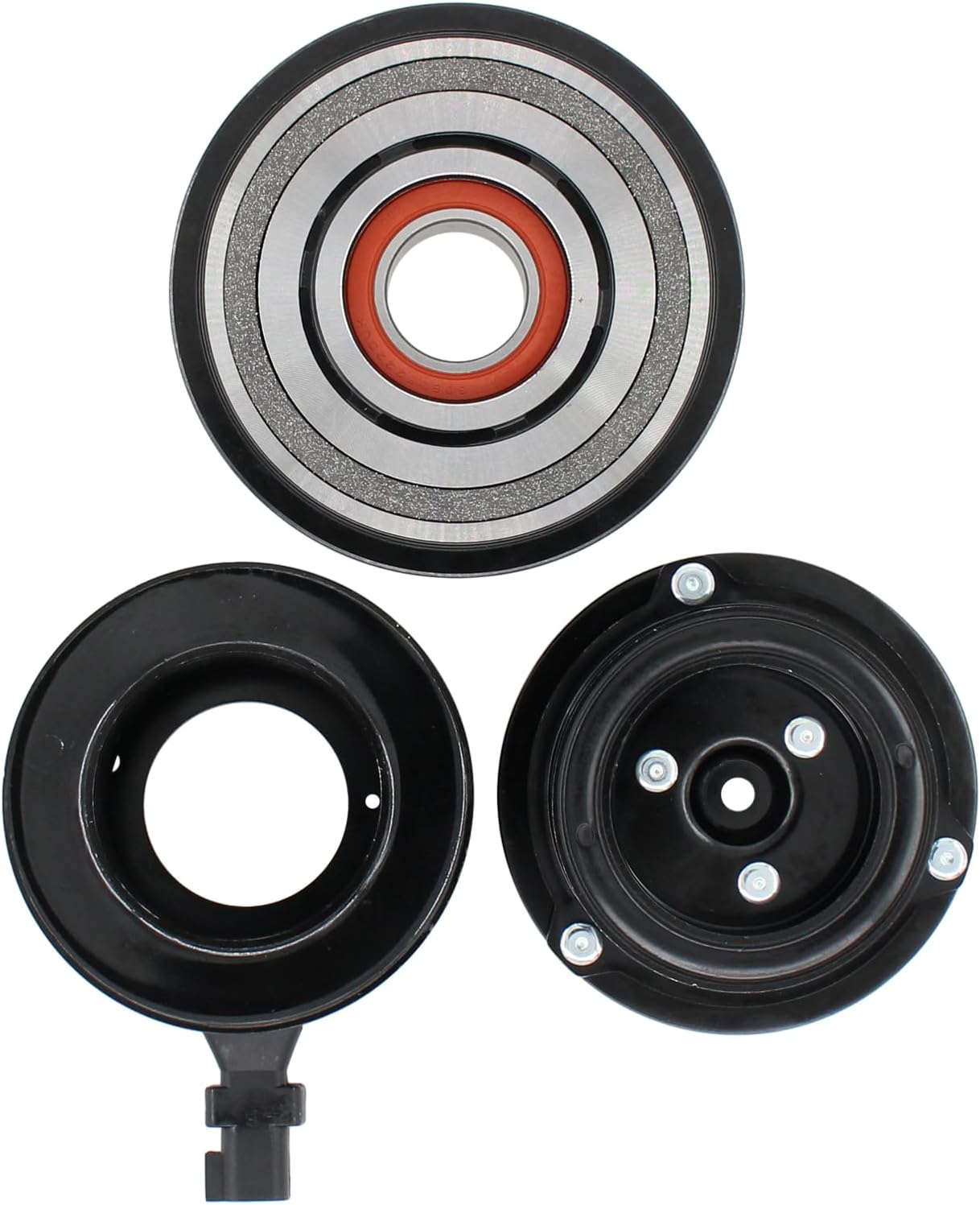

• Package includes: Package includes: 1 x A/C Compressor Clutch Assembly(Pulley, Front Plate, Electromagnetic coil )
• please find the clutch installation instruction in the subsequent product description
