ELING 2 Gauge Set 0-200km/h GPS Speedometer Gauge 110mm with Tachometer 0-8000RPM 4in1 Multi-Function Gauge Fuel Level Water Temp. 100-250℉ Oil Pressure 0-150PSI Voltmeter 12Volt for Car Racing Boat
4.8 (74 items)
Limited Time Sale$80.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 208102303 | Release Date | 2026/03/22 | List Price | $53.60 | Model Number | 208102303 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

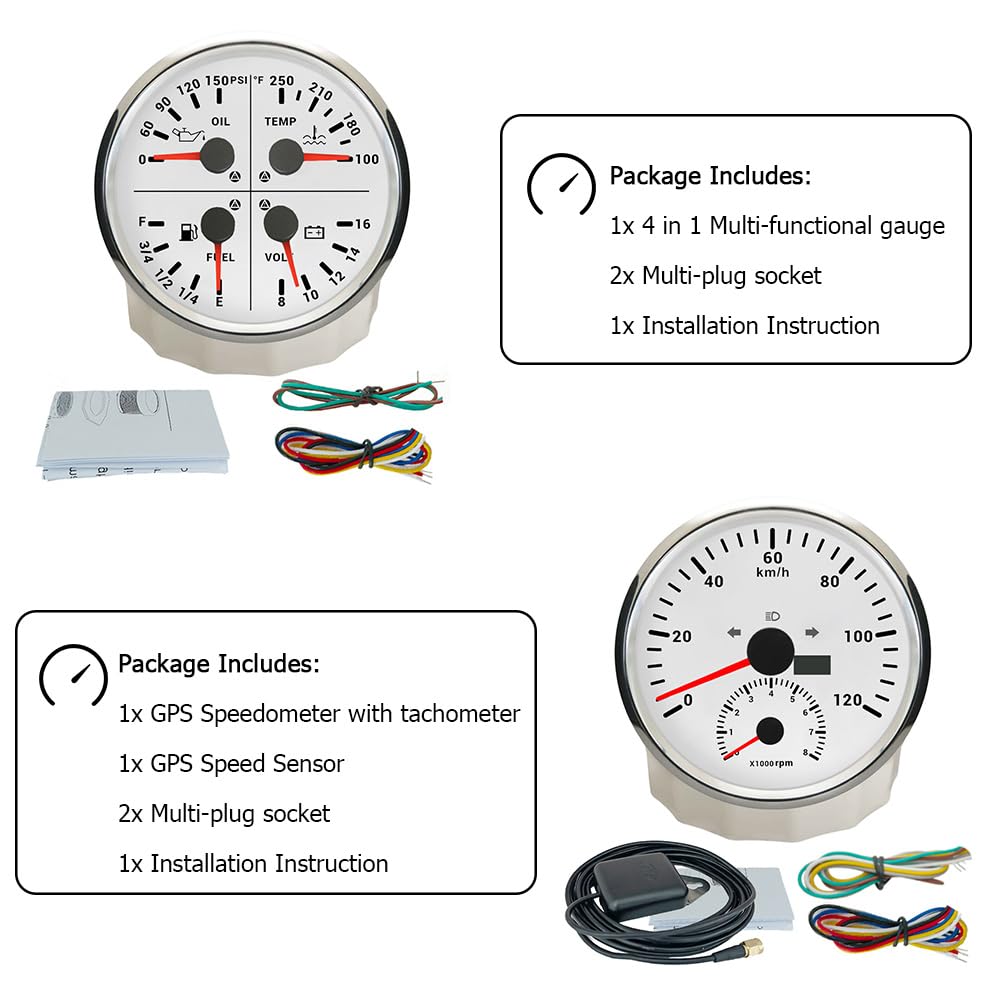

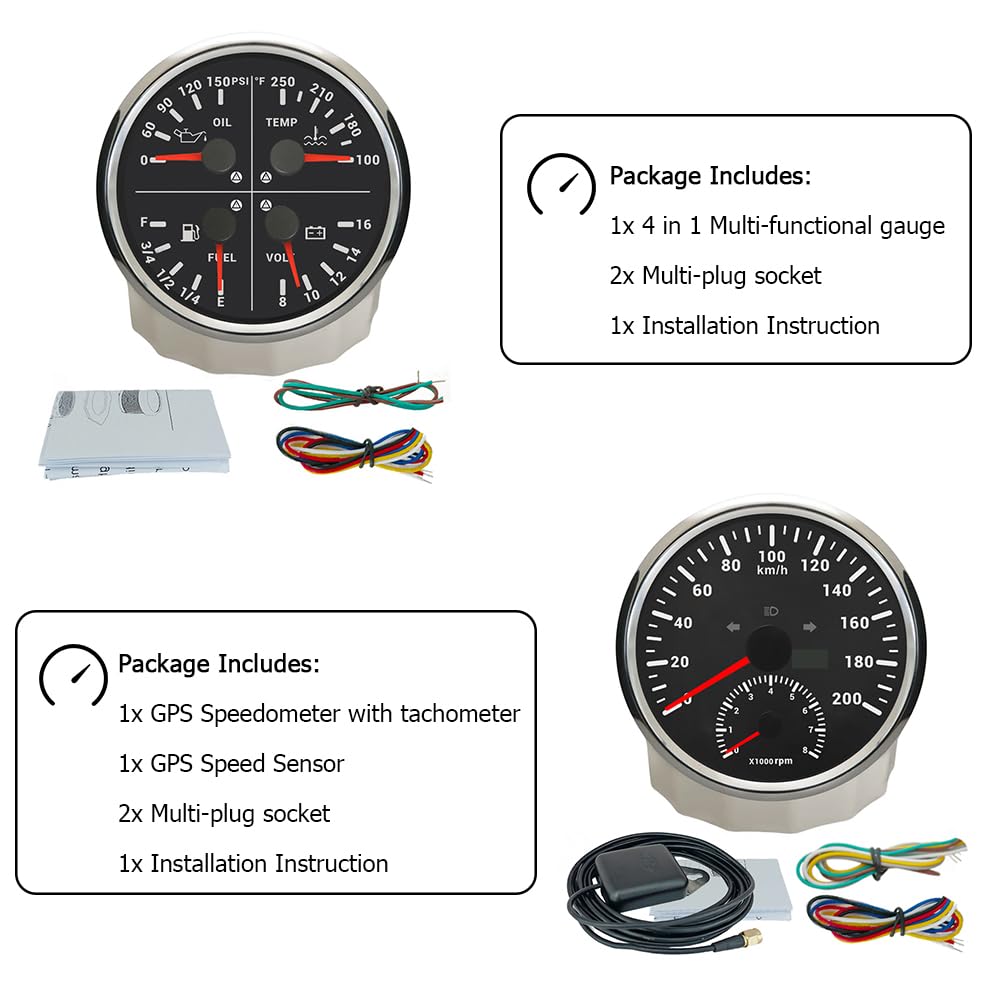

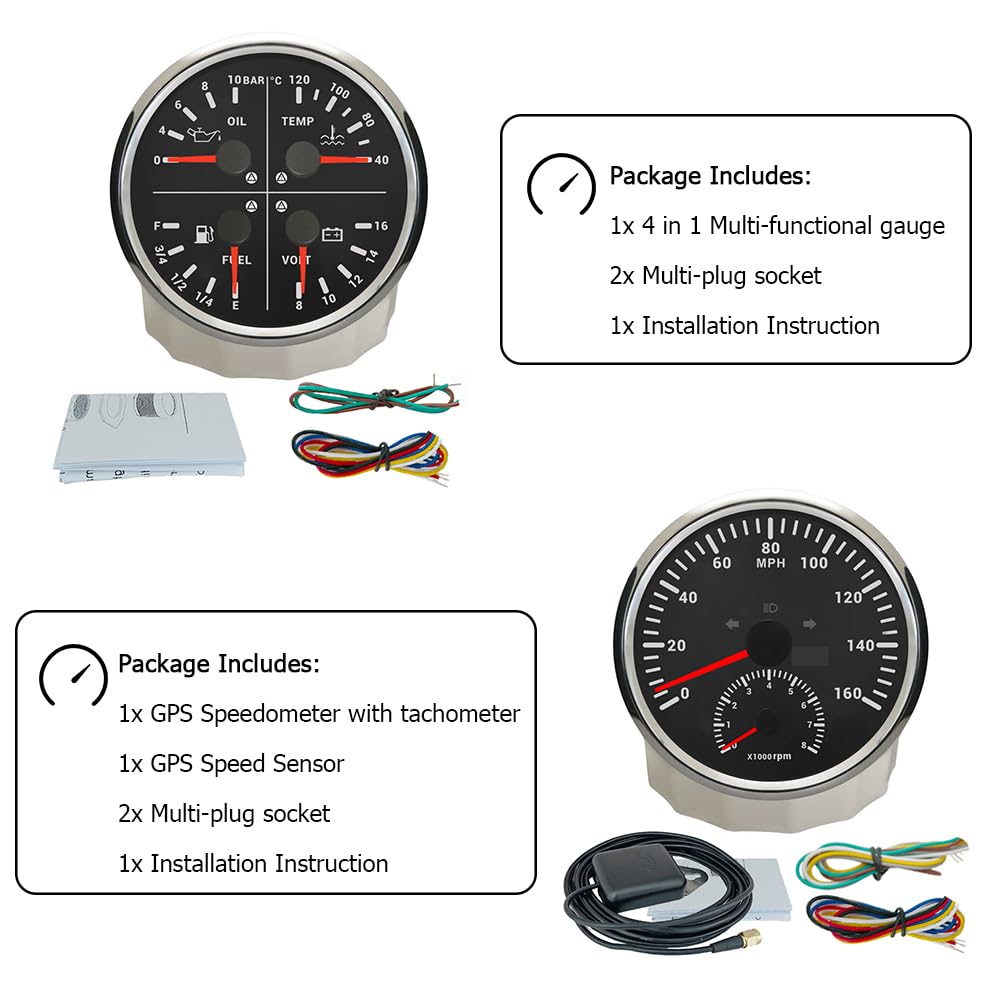

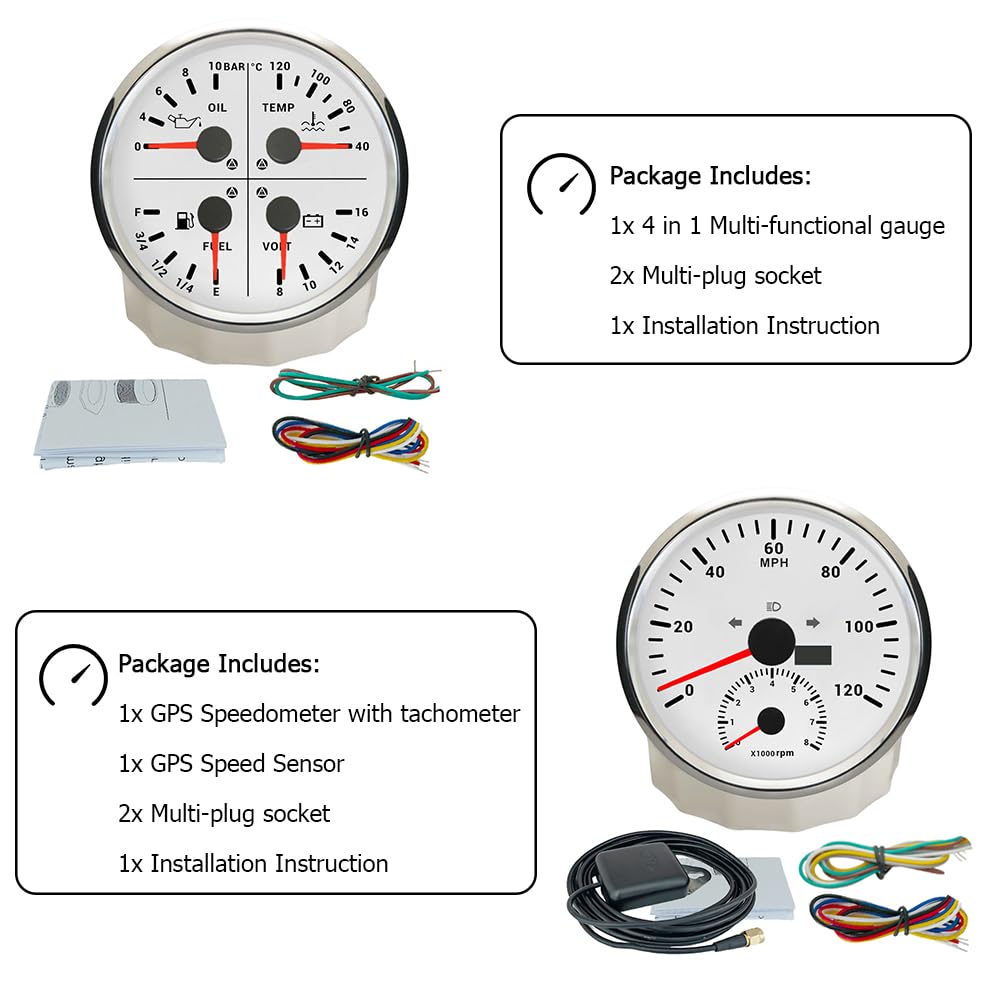

Product Features: -Suitable for all vehicles, boats and off-road vehicles -Speedometer signal comes directly from the satellite signal receiver (GPS Antenna), don't need other speed sensor. Tachometer needs to get rpm signal.-The LCD display clear display total mileage, and with indicating light(high beam, turn left, turn right)-The gauge has the advantages of high precision, quick location confirmation and short start up time. -IP67 waterproof and dustproof grade-Reverse polarity protection and anti-fogging performance-No Stationery Drift-Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc. -Using a stepper motor drive pointer, accurate display of the fuel level, water temp., oil pressure, voltage. -With curved glass (with anti-fogging function) 2in1 Multi-Function Gauge Technical Data: -Fixing dimension: 110mm -Indicating Range: GPS Speedometer:0-200KM/H Tachometer: 0-8000RPM Tripmeter: 0-999.9km Odometer: 0-999999km -Working Voltage: 12VDC/24VDC -Backlight: Red Package Includes: 1x 2in1 Multi-Function Gauge 1x GPS Speed Sensor 2x Multi-plug socket 1x Installation Instruction 4in1 Multi-Function Gauge Technical Data: -Fixing dimension: 110mm Oil Pressure Gauge: 0-150PSI (signal: 10-184ohm) Water Temperature Gauge: 100-250℉ (signal: 301-22ohm) Fuel Level Gauge: E-1/2-F (signal: 0-190ohm/240-33ohm) Voltmeter: 8-16V -Working Voltage: 12VDC -Backlight: Red -4in1 Multi-Function Gauge's alarm: Fuel Level<1/8 Water temperature>203℉ Oil pressure<11.60PSI Voltage <11.5V -Sensors need to be purchased separately Package Includes: 1x 4in1 Multi-Function Gauge 1x GPS Speed Sensor 2x Multi-plug socket 1x Installation Instruction
- Gauge Set-2in1 Multi-Function Gauge, 4in1 Multi-Function Gauge. Red backlight
- Gauge Set-GPS speedometer indicating range: 0-200KM/H, Tachometer indicating Range: 0-8000 RPM, Fuel Level Gauge indicating Range: E-1/2-F, Water Temperature Gauge indicating Range: 100-250℉, Oil Pressure Gauge indicating Range: 0-150PSI, Voltmeter indicating Range: 8-16V.
- Gauge Set-GPS Speedometer's signal: GPS signal, Tachometer's signal: Pulse signal, Fuel Level Gauge's Signal: 0-190ohm/240-33ohm, Water Temperature Gauge's Signal: 301-22ohm, Oil Pressure Gauge's Signal: 10-184ohm.

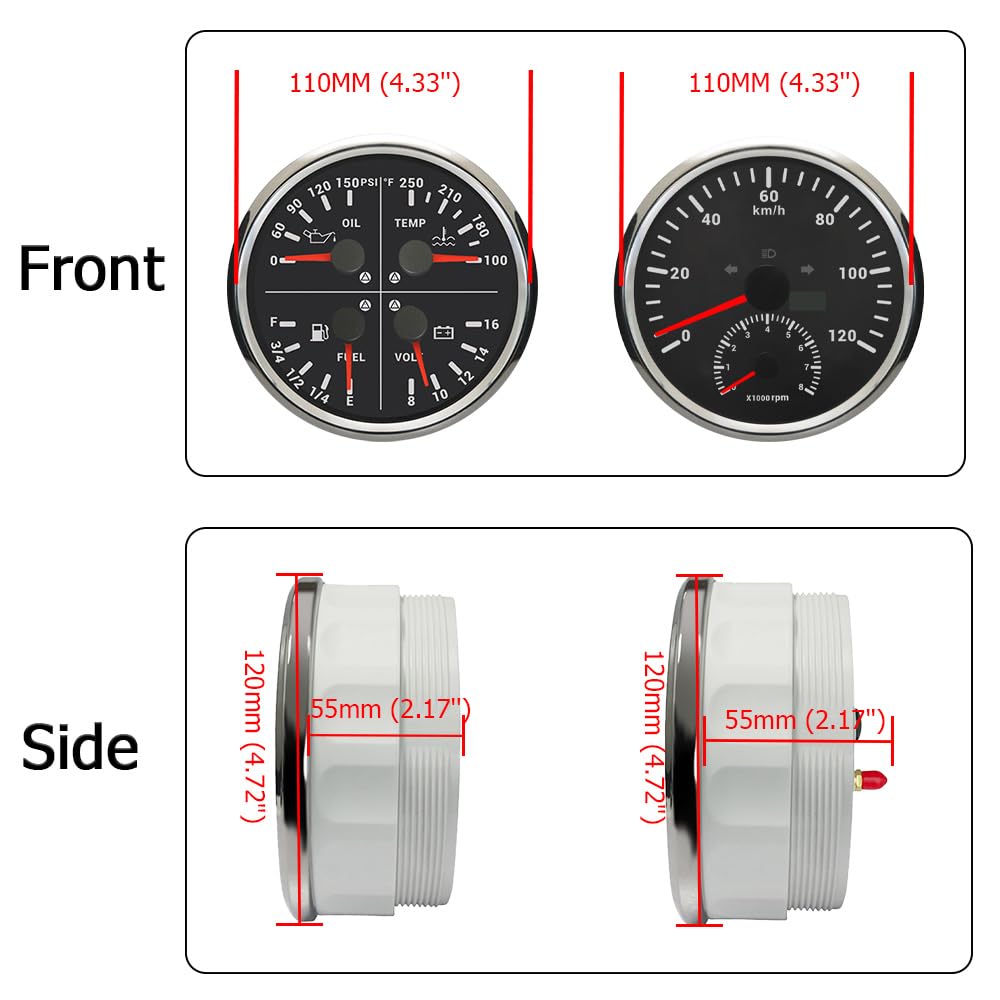

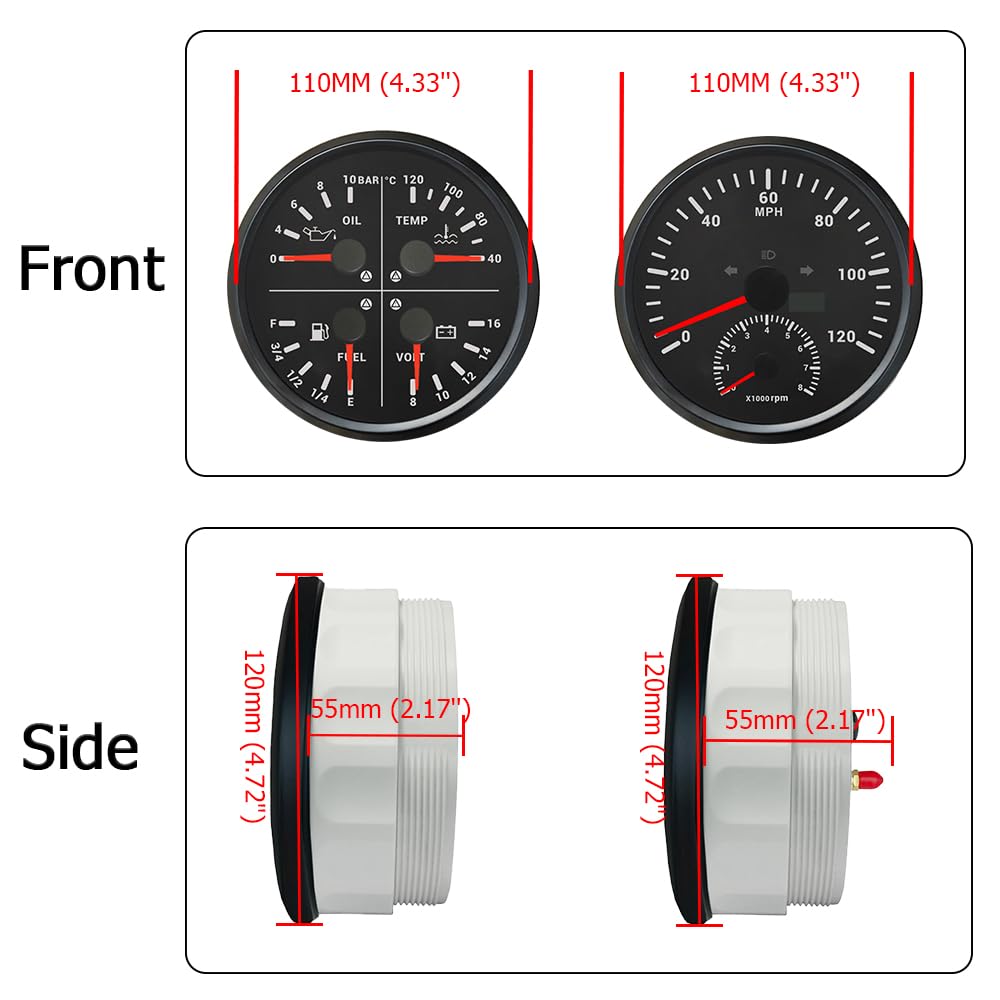

- Installtion: Cut an 111 mm (4 3/8") hole in the panel and allow a clearance of 55mm behind the panel to fit the gauge. Put the gauge in the hole and screw down.
- For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable.
| Manufacturer | ELING |
|---|---|
| Product Dimensions | 8.66 x 8.66 x 2.17 inches; 2.2 Pounds |
