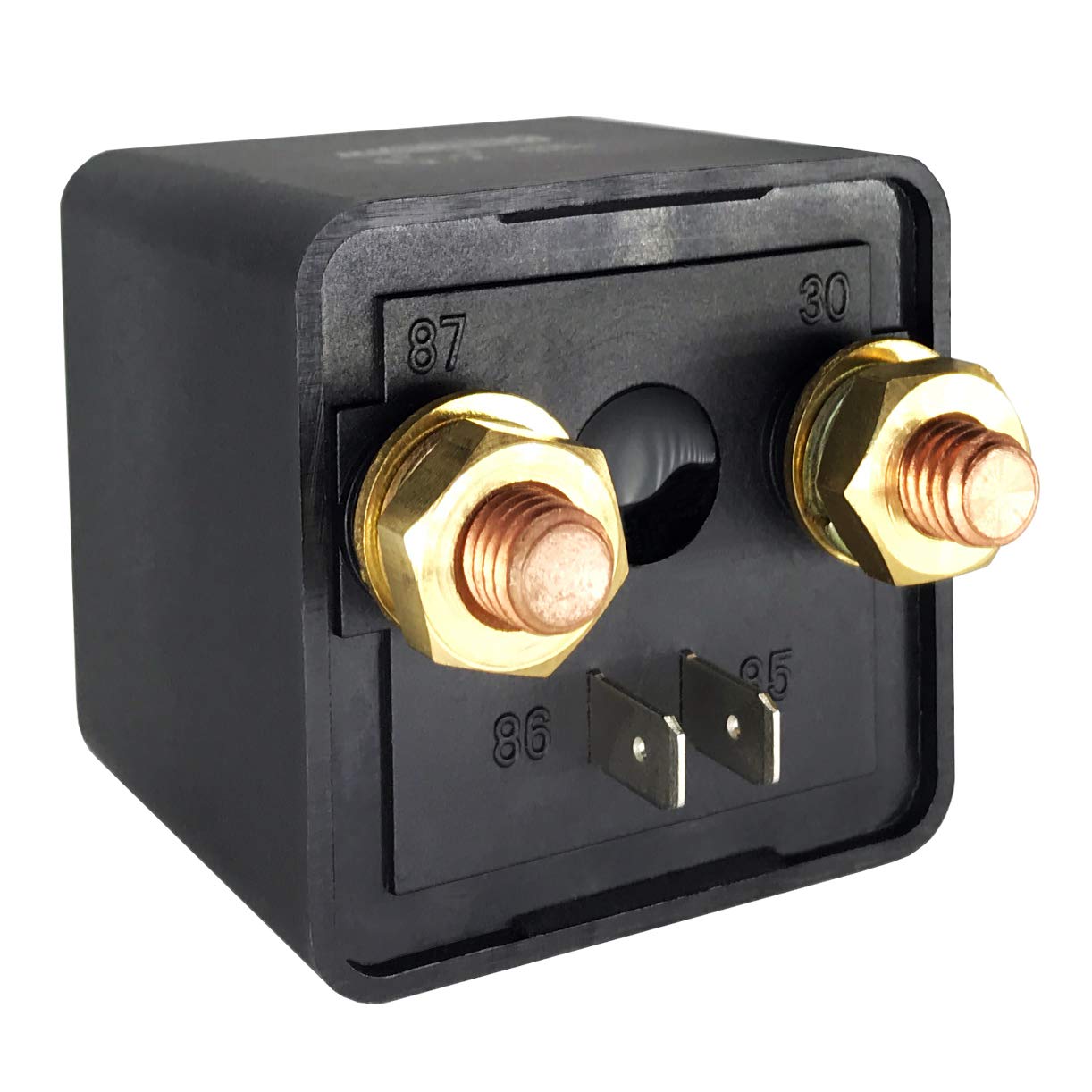

irhapsody Relay 200A, 12V Continuous Duty SPST 4-pin High Power Relay

12 V DC 200 Amp Split Charge Relay Heavy Duty 4 Pin SPST (Single Pole Single Throw) relay Nominal coil voltage: 12 V DC Pickup voltage: 8 V DC Dropout voltage: 1.2 V DC Maximum applied voltage: 14 V DC Max Switching Current: 200A Max Switching Voltage: 14 V DC Temperature Range: -30 ~ +80 degrees Celsius Feature 1), Advantage - coil power: 1.8W; coil resistance: 80 ohms. It is more reliable than 2.4W (60 ohms) and 4.8W (30 ohms) relays on the market. 2), Large capacity: 200 amp high current carrying capacity, heavy duty make/break relay. 3), Ideal for split charging or any vehicle needing a high power relay. Package Content: 1 x 200 Amp Relay

• Our coil power is 1.8W, and coil resistance is 80ohms. It is more reliable than 2.4W (60 ohms) and 4.8W (30 ohms) relays on the market
• Large capacity, high current carrying capacity, heavy-duty make/break relay. But never go beyond its capabilities, try to stay 10 to 15% below what the rate is for
• Rated voltage: 12vdc; Pickup voltage: 8v; Dropout voltage: 1.2v
• The size of the round stud terminals: M6/6mm
• Ideal for split charging or any vehicle needing a high power relay, easy to connect and is able to handle the load
