(10Pcs) 12V Relay Din Rail; Silm Relay 12V DC/AC 6Amp 5Pin 1NO 1NC SPDT with LED Indicator, Socket, Jumper DIN Rail Mount 12 Volt UL Certification
5.0 (63 items)
Limited Time Sale$34.73 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 208124332 | Release Date | 2026/03/22 | List Price | $23.16 | Model Number | 208124332 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Certifications】 12 Volt Relay through UL and VDE certification, Socket through UL / CSA and CE certification. The relay module thickness is only 0.24 "/6.2mm.

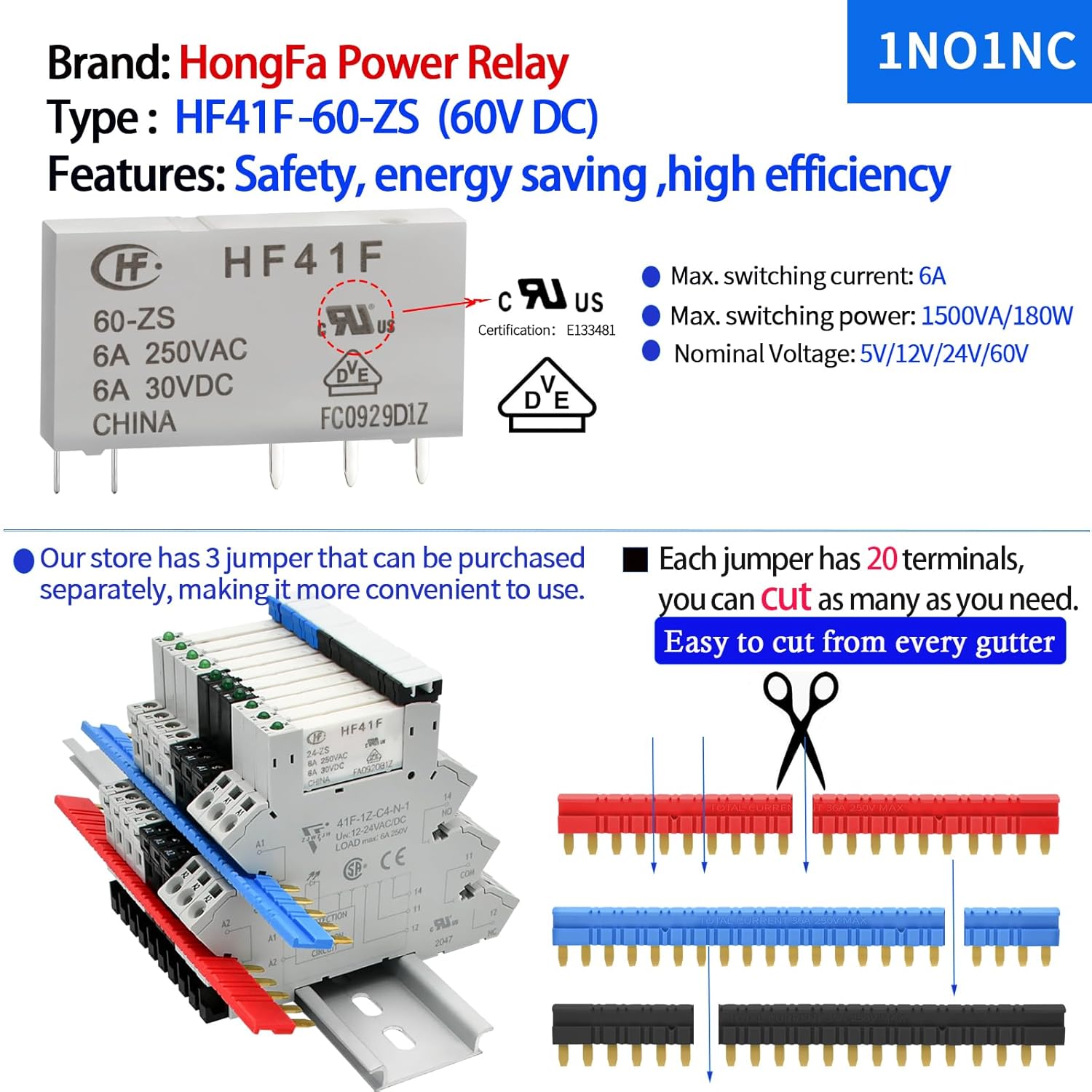

- 【5 pin relay 12v】12V Relay Coil Voltage: 12V DC and 12V AC , Contact : SPDT 1 Normally Closed + 1 Normally Open. Terminals : 5 Pin; Contact Rating: 6Amp 250VAC / 30VDC, Construction: Plastic seaied. Mechanical life: 10,000,000 Cycles; Electrical life: 300,000 Cycles.

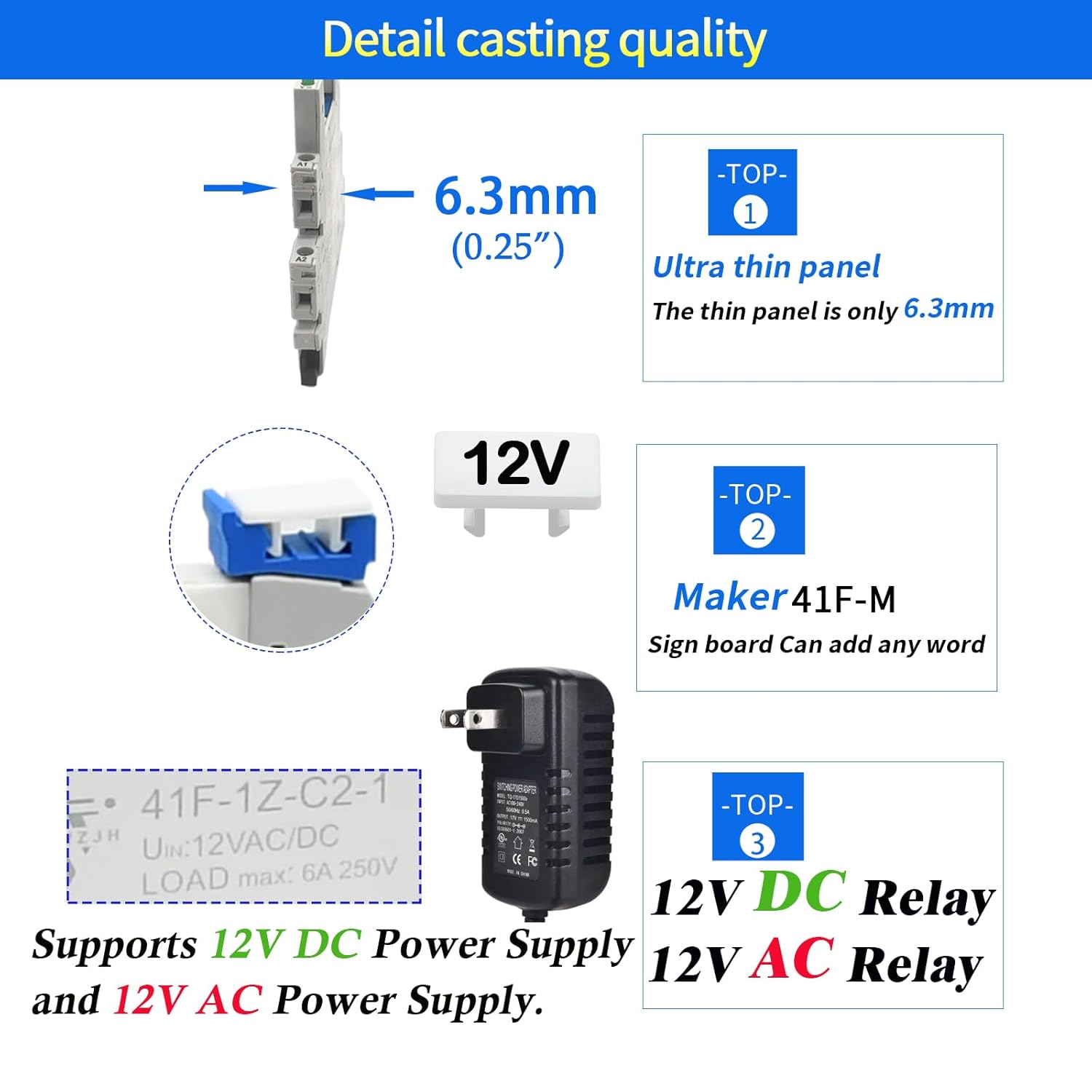

- 【Dimension】The socket is installed with screws, socket slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).

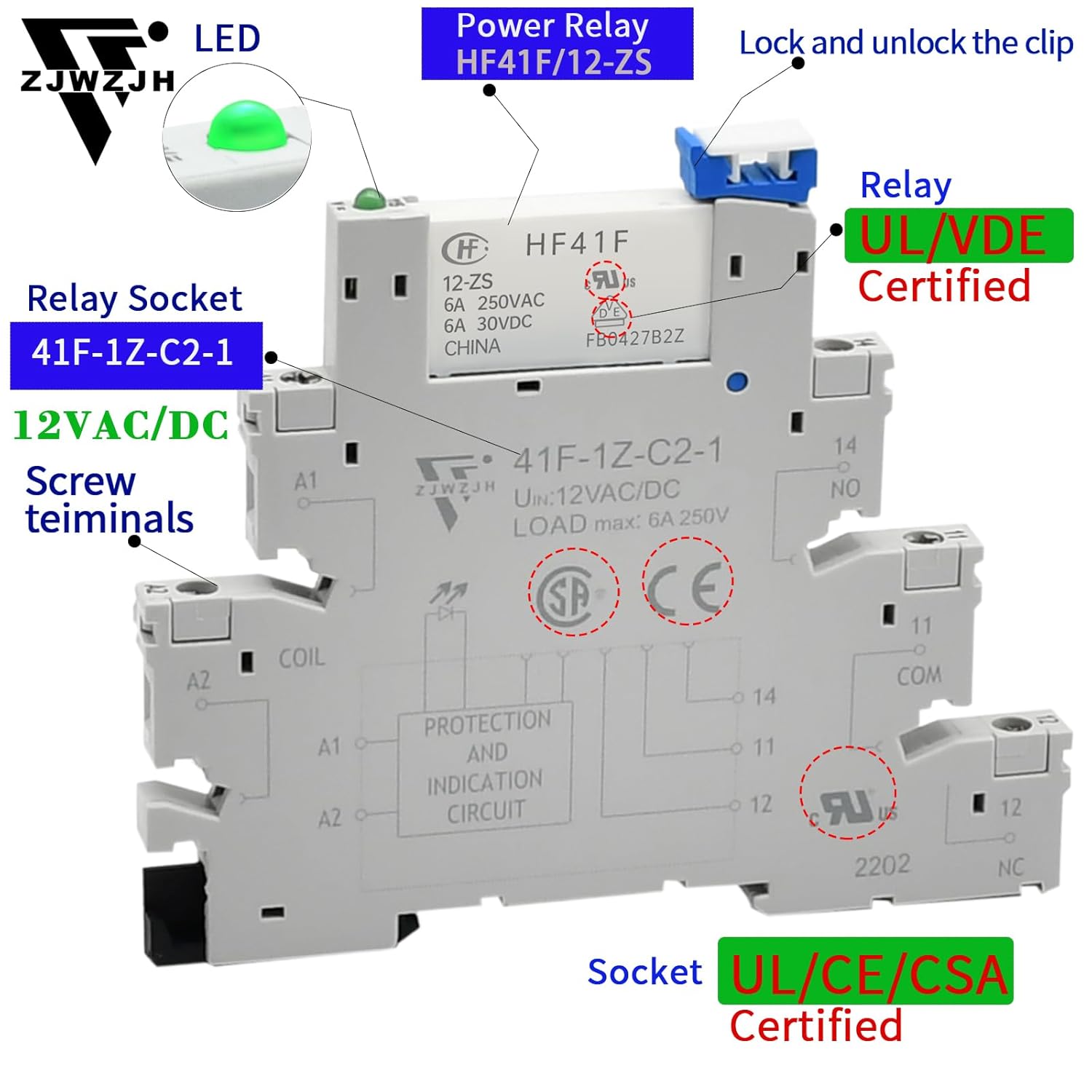

- 【Socket】Socket: Screw terminal, din rail mounting, with finger protection device.Relay Input voltage: 12V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

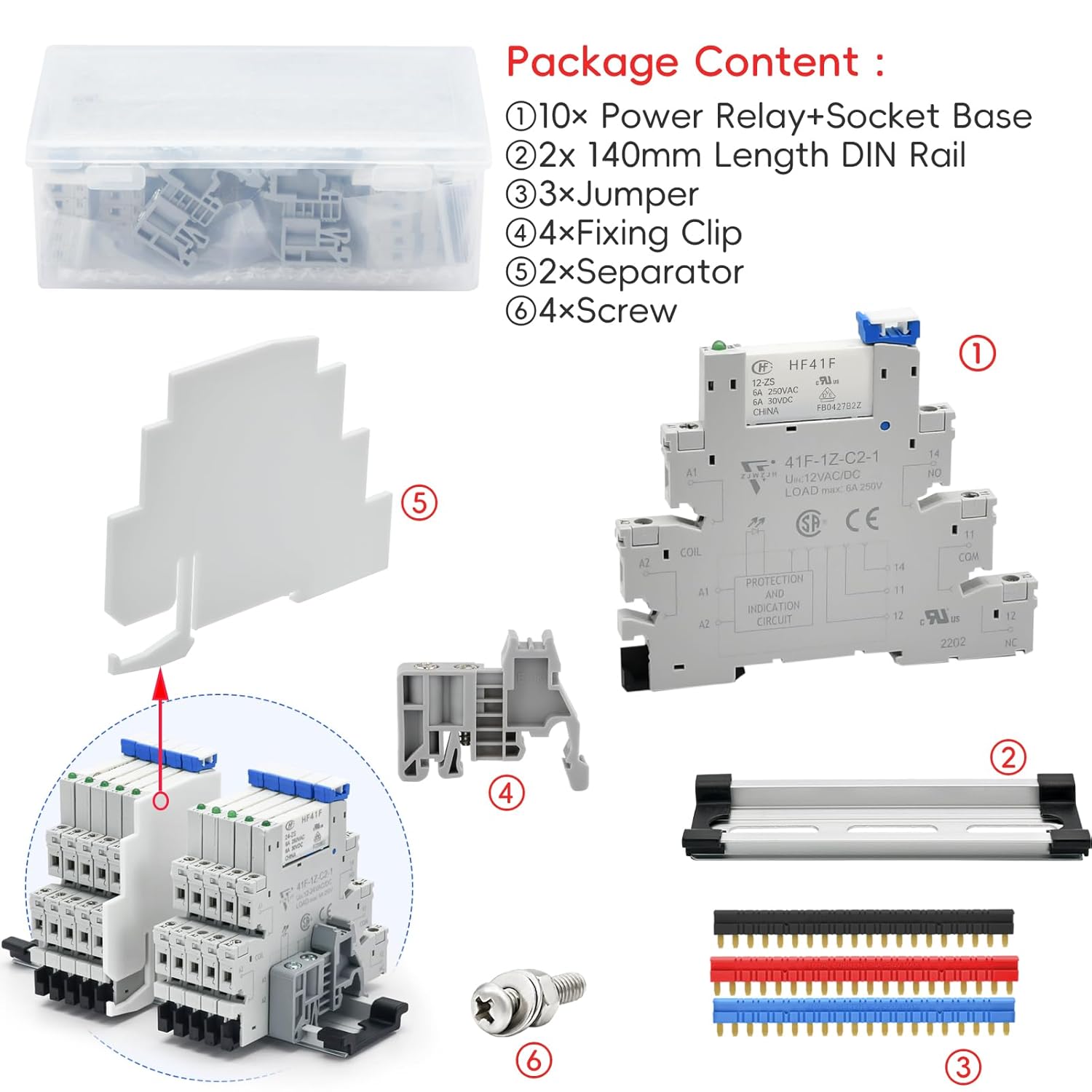

- 【Package】Package Content : 10× Power Relay; 10× Relay Socket Base; 2x 140mm Length DIN Rail; 3×Jumper; 4×Fixing Clip; 2×Separator; 4×Screw. Ambient temperature: -40℃ ~ 70℃.
| Manufacturer | ZJWZJH |
|---|---|
| Item model number | HF41F/12-10PCS |
| Product Dimensions | 3.48 x 0.25 x 2.79 inches; 1.12 ounces |
