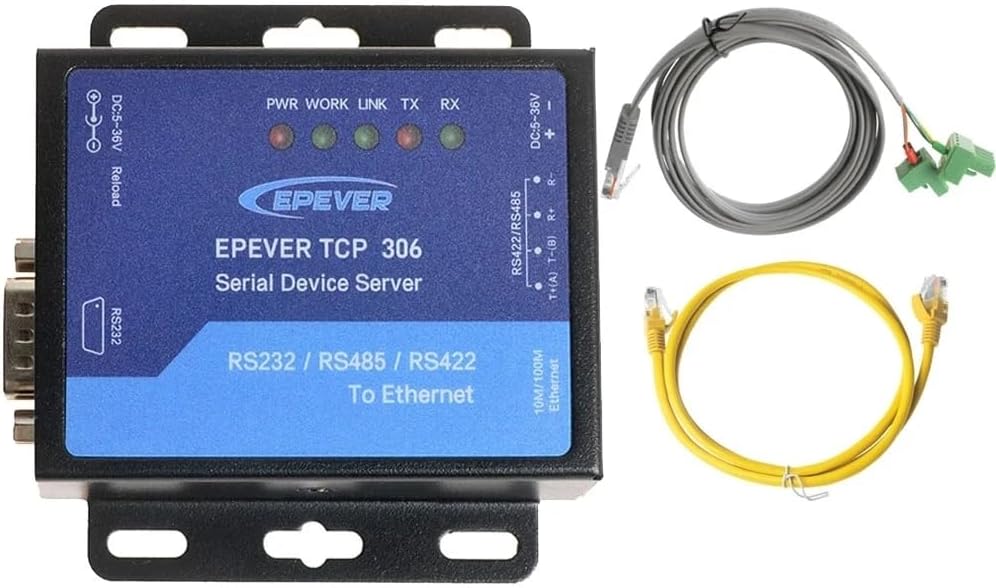

EPSOLAR TCP 306 Serial Device Server Remote Connecting with EPSolar Solar Controller Inverter and Inverter/Charger Via RS485 Port
5.0 (140 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 208555995 | Release Date | 2026/03/22 | List Price | $36.00 | Model Number | 208555995 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

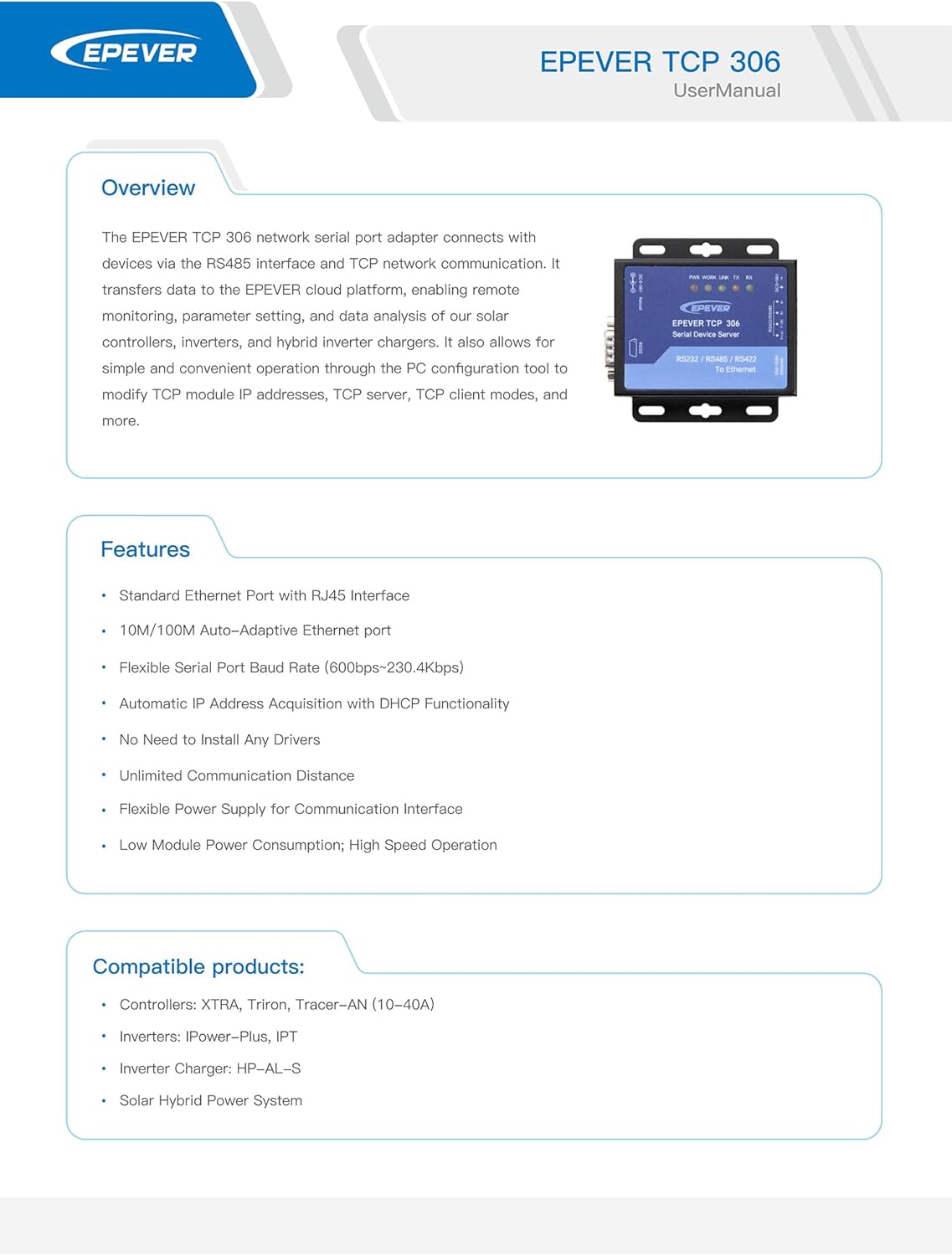

Description:The EPSOLAR TCP 306 network serial port adapter connects with devices via the RS485 interface and TCP network communication.It transfers data to the EPSOLAR cloud platform, enabling remote monitoring, parameter setting, and data analysis of our solar controllers, inverters, and hybrid inverter chargers.It also allows for simple and convenient operation through the PC configuration tool to modify TCP module IP addresses, TCP server, TCP client modes, and more. Features:1. Standard Ethernet Port with RJ45 Interface2.10M/100M Auto-Adaptive Ethernet port3.Flexible Serial Port Baud Rate (600bps~230.4Kbps)4.Automatic IP Address Acquisition with DHCP Functionality5. No Need to Install Any Drivers 6.Unlimited Communication Distance7. Flexible Power Supply for Communication Interface8.Low Module Power Consumption; High Speed OperationTechnical Specifications: Model: TCP 306Work voltage: 5V~36VDCWork current:116mA@5V；53mA@12V Ethernet type: Rj45, 10/100Mbps, cross-direct adaptiveSupport network protocol: IP、TCP/UDP、ARP、ICMP、IPV4、HTTPSerial port baud rate: 600bps~230.4KbpsTransmission mode:TCP Server、TCP Client、UDP Server、UDP Client Transmission delay: <10msWork temperature range:-25℃~75℃ Storage temperature range: -40℃~105℃ Relative humidity: ≤ 95% (N.C)Dimension (Length x Width x Height): 98.0mmx86.0mmx25.0mmReliable level: 1.5KV Electromagnetic isolationNet Weight: 205g
- Standard Ethernet Port with RJ45 Interface
- 10M/100M Auto-Adaptive Ethernet port
- Flexible Serial Port Baud Rete (600bps~230.4Kbps)
- Automatic IP Address Acquisition with DHCP Functionality
- No Need to Install Any Drivers
- Unlimited Communication Distance
- Compatible products: Controllers: XTRA, Triron, Tracer-AN (10-40A); Inverters: IPower-Plus, IPT; Inverter Charger: HP-AL-S; Solar Hybrid Power System
- Flexible Power Supply for Communication Interface
- Low Module Power Consumption; High Speed Operation
| Item Weight | 1.1 pounds |
|---|---|
| Manufacturer | YXSMPS |
| Item model number | TCP 306 |
