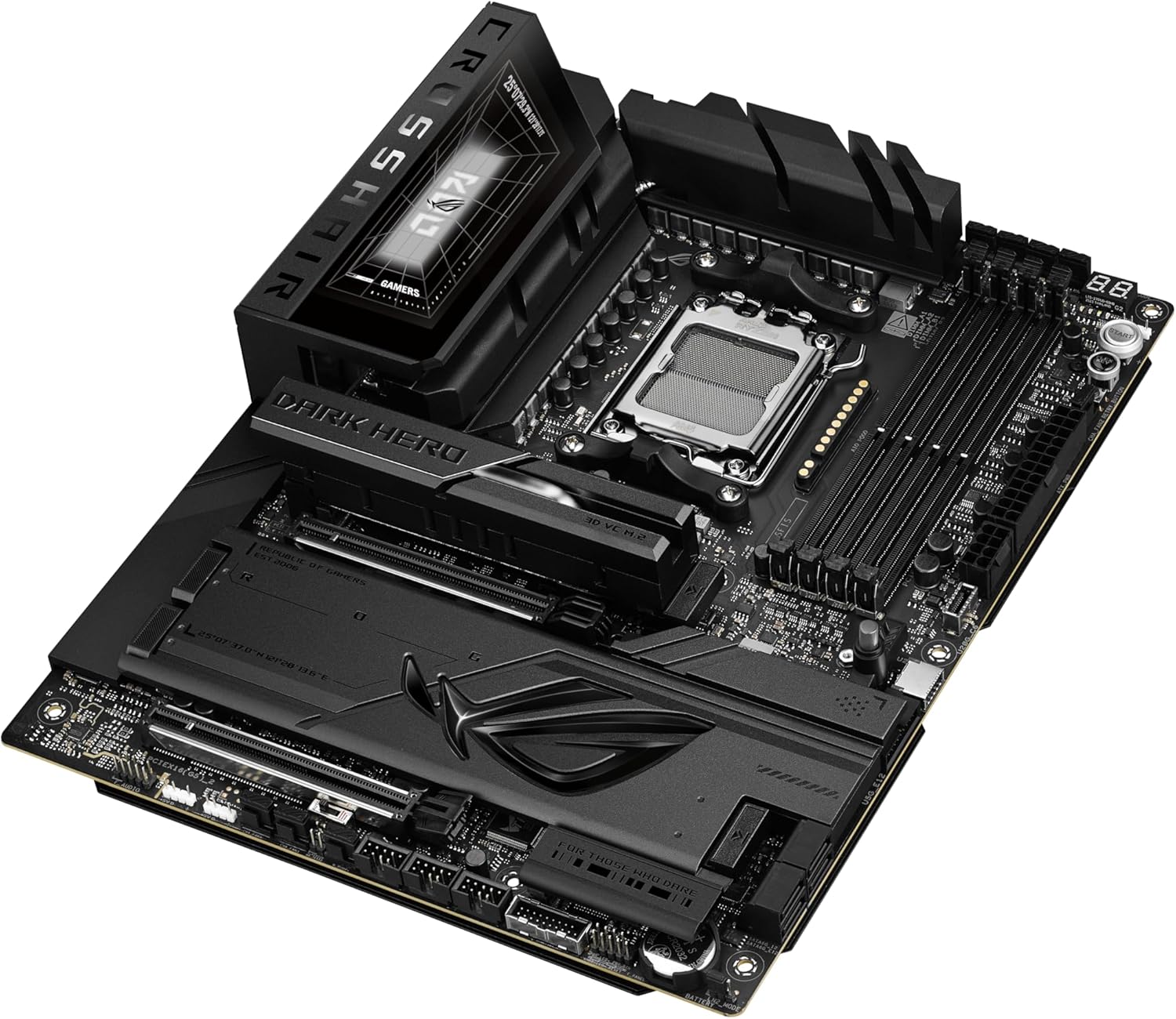

ASUS ROG Crosshair X870E Dark Hero ATX Motherboard, 20+2+2 Power Stages, DDR5 Slots, PCIe® 5.0, Five M.2 Slots, 3D VC M.2 heatsink, USB4®, AI Cache Boost, PCIe Slot Q-Release, AIO Q-Connector
4.8 (148 items)
Limited Time Sale$419.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209101402 | Release Date | 2026/03/29 | List Price | $280.00 | Model Number | 209101402 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
ASUS ROG Crosshair X870E Dark Hero ATX motherboard delivers 20+2+2 power stages, DDR5 support, PCIe 5.0, five M.2 slots with 3D VC heatsink, USB4 connectivity, AI Cache Boost, PCIe Slot Q-Release, and AIO Q-Connector for effortless high-end builds focused on stability, cooling efficiency, premium components, and advanced DIY features.
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors. Renowned Software: BIOS 64 MB, ASUS DriverHub, Dolby Atmos, GlideX, HWiNFO, exclusive 1-year Internet Security subscription, and bundled 1-year AIDA64 Extreme subscription Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intelligent Control: ASUS-exclusive AI Cache Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II, and AEMP to simplify setup and improve performance
- ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
- Robust Power Solution: 20(110A)+2(110A)+2 power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
- Optimized Thermal Design: 3D VC M.2 heatsink for one PCIe 5.0 M.2 slot, Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe and connected to the power stages with high-conductivity thermal pads
- Latest M.2 Support: Two onboard PCIe 5.0 M.2 slots and three PCIe 4.0 M.2 slots, all with substantial cooling solutions. Unmatched Personalization: I/O cover with Polymo Lighting II, three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting

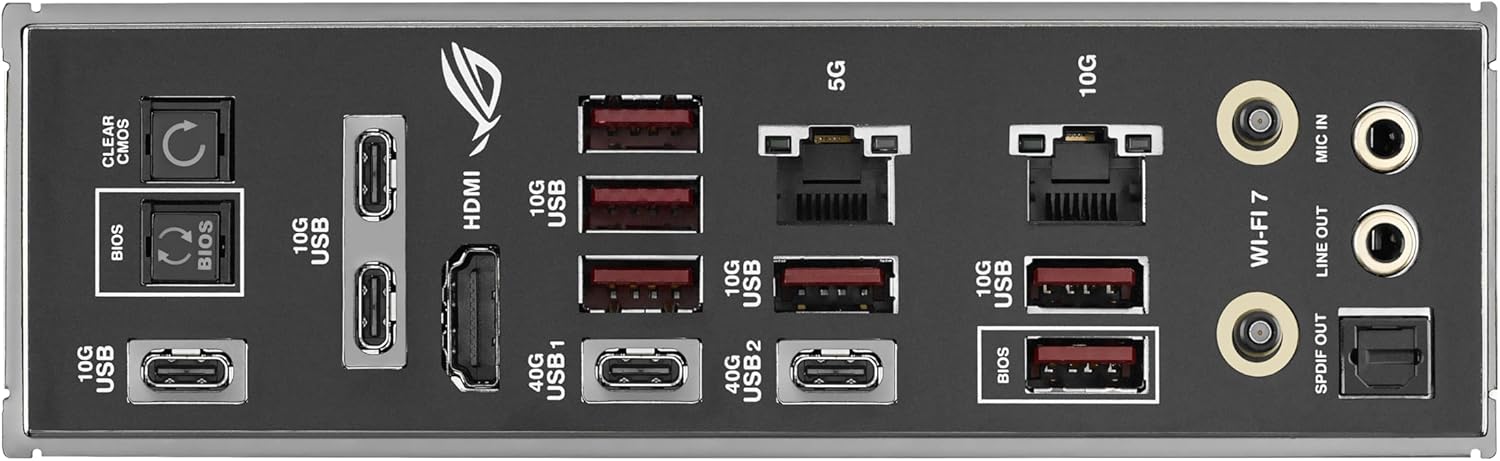

- Abundant Connectivity: Dual USB4 Type-C ports, two USB 20Gbps Type-C front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher), nine additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, HDMI port
- High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Realtek 10Gb Ethernet and Realtek 5Gb Ethernet. Immersive Audio: ROG SupremeFX ALC4082 codec with ESS ES9219 Quad DAC for up to 32-Bit/384 kHz playback
- DIY Friendly Design: AIO Q-Connector, PCIe Slot Q-Release, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
| UPC | 199291398672 |
|---|---|
| Brand | ASUS |
| Platform | Windows 11 |
| CPU Model | Ryzen 7 |
| Model Name | ROG Crosshair X870E DARK HERO |
| Item Weight | 9.5 Pounds |
| Chipset Type | AMD X870E |
| Manufacturer | ASUS |
| Model Number | ROG Crosshair X870E DARK HERO |
| BuiltIn Media | 1 x ASUS WiFi Q-Antenna, 1 x DDR5 fan holder, 1 x M.2 Q-Latch package, 1 x Q-connector, 1 x Quick start guide, 1 x ROG Bottle Opener, 1 x ROG assistant fan (60mm), 1 x ROG stickers, 1 x ROG thank you card, 1 x Thermal pad for M.2 22110, 1x ROG CROSSHAIR X870E DARK HERO motherboard, 3 x M.2 Q-Slide package, 5 x M.2 rubber package |
| Number of Ports | 32 |
| Total Usb Ports | 23 |
| Processor Socket | Socket AM5 |
| Total PCIe Ports | 4 |
| Total SATA Ports | 4 |
| Compatible Devices | Personal Computer |
| Warranty Description | 3 Years |
| Compatible Processors | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 2 |
| Graphics Card Interface | PCI Express |
| Memory Storage Capacity | 256 GB |
| Ram Memory Maximum Size | 256 GB |
| Item Dimensions L x W x H | 12"L x 9.6"W x 1.5"H |
| Main Power Connector Type | 24-Pin |
| Total Number of HDMI Ports | 1 |
| System Bus Standard Supported | Serial ATA/600 |
