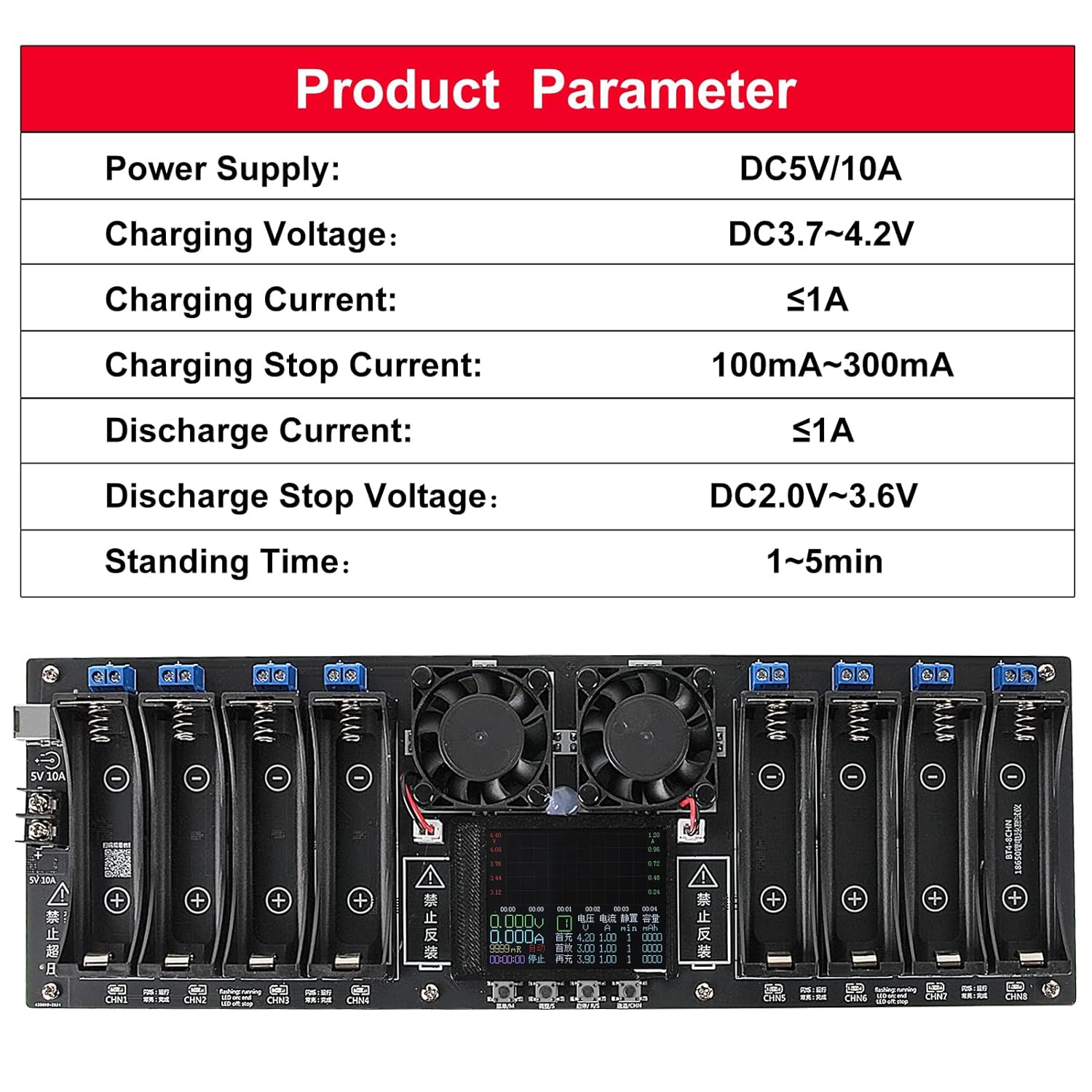

8-Channel 18650 Lithium Battery Auto Charge/Discharge Tester Capacity Internal Resistance Tester 2.4-in Screen DC 5V

2.4" TFT 8-channel 18650 battery tester Features:1. 2.4-inch color display: Equipped with a high-definition 2.4-inch color screen, data is clearly visible and operation is intuitive and convenient.2. Compatible with lithium iron phosphate batteries: Supports testing of lithium iron phosphate batteries, with a wider application range and diverse needs met.3. Spring battery holder design: Features a spring battery holder for easy and quick installation and removal of batteries, enhancing testing efficiency.4. External testing function: Supports external testing mode, allowing precise detection of various types of batteries, with strong flexibility.5. Real-time multi-parameter display: Displays battery voltage, working current, capacity measurement, and runtime in real time, providing a comprehensive understanding of battery status.6. Channel type: 8 independent channels, each unrelated and operating independently without mutual influence.7. Channel synchronization: Supports 8-channel setting synchronization, and can also set parameters for each channel separately.8. Cycle charge and discharge: In automatic mode, only one cycle of charge-discharge-charge is supported, and multiple cycles are not supported.Operating mode introduction:① AUTO~Automatic mode② CHG~Charging mode③ DSG~Discharge mode④ ACTI~Mode of activationCharging current: each channel is independent of about 1A non-constant current charging, and the charging current is not adjustable.Charging (stop) voltage: 3.7V, 3.8V, 3.9V, 4.0V, 4.1V, 4.2V, 6 gears adjustableRecharge (stop) voltage: 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 3.6V, 3.7V, 3.8V, 3.9V, 4.0V, 4.1V, 4.2V, 13 gears adjustableCharging end current: 100mA, 200mA, 300mA, adjustableDischarge current: each channel is independent of about 1A non-constant current discharge, and the discharge current is not adjustable.(Discharge) Stop voltage: 2.0V, 2.1V, 2.2V, 2.3V, 2.4V, 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 3.6V, 17 gears adjustable.Standstill time: 1~5min adjustable.Channel status preview: support 1-screen preview of 8-channel statusSingle channel detail display: supportSingle-channel charging and discharging curve display: supportInternal resistance detection: DC two-wire method for internal resistance measurement, only used for sorting and analogy of the same batchHeat dissipation mode: active heat dissipationOverheat protection: supportCyclic charge and discharge: only one charge - discharge - charge cycle is supported in automatic mode, and multiple cycles are not supported.External test: it supports external discharge through 2P terminal. A single channel only supports one of the battery base or external test, and cannot use the battery base and external battery for test at the same time.Reverse connection protection of battery: reverse connection protection is provided, and reverse connection of battery is prohibited.Packaging List:8-channel battery capacity tester with Manual * 1

• ❃❃❃❃Only support charging-discharging-charging 1 cycle in automatic mode, do not support multiple cycles. support external test,can be discharged through the 2P terminal external, a single channel single time only and can only support the battery holder or external test in one, can not be used at the same time the battery holder and external battery test
• ❃❃Channel type: 8 independent channels, each unrelated, independent operation, without mutual influence（(User manual available if do as follow: click "DWEII"(you can find "Sold by HANXI01" under Buy Now button), in the new page, click "Ask a question".)we will send you the manual asap）
• ❃❃The 18650 battery holder is only applicable to flat-head 18650 battery test. It is not applicable to pointed-head 18650 or other specifications of battery test. Before use, adjust the spring piece and the tightness with pointed-nose pliers.
• ❃❃DC5V/10A power supply with sufficient power must be used for power supply; otherwise, the equipment cannot operate normally due to insufficient power supply;2.4-inch color display: Equipped with a high-definition 2.4-inch color screen, data is clearly visible and operation is intuitive and convenient.
• ❃❃Charging mode: program start ~ charging voltage is set to 4.2V, charging current is less than the stop current for 30 seconds, the programme ends (charging voltage is not equal to 4.2V, the battery voltage reaches the charging voltage, the programme ends) ~ charging is complete.
