36 PCS Split Bolt Connectors TJ-25, Copper Grounding Clamps Compatible for 4AWG/ 5AWG/ 6AWG/ 7AWG/ 8AWG Bare Wire for Grounding & Bonding Applications

PRODUCT DESCRIPTION: Dpwrrot TJ-25 Split Bolt Connector High-Quality Copper Grounding Clip – Secure & Tool-Free Wire Connections (36-Pack)PRODUCT WIRE RANGE: From 4 AWG to 8 AWG.PACKAGING CONTENT: You will receive 36pcs of TJ-25 split bolt connectors copper grounding clipsMATERIAL: Brass coated with copperNOTE: Our TJ-25 Split Bolt Connectors are made of Pure Copper-Plated Brass given that pure copper is not sufficiently hard and prone to breaking, with threads that are easily worn, and that frequent disassembly and reassembly can affect sealing or conductivity. They combine excellent conductivity, low resistance, high mechanical strength, corrosion resistance, and oxidation resistance, and can operate normally in high-temperature, low-temperature, or humid environments. They are ideal for applications requiring vibration resistance and wear resistance (such as bolts that are frequently disassembled and reused) or where budget constraints necessitate a balance between conductivity and strength.Installation Notes:Wire Preparation: Any oil contamination, oxidation, or insulation debris will impair conductivity and securement.Match Wire Gauge: Verify wire specifications fall within 4 AWG/ 5 AWG/ 6 AWG/ 7 AWG/ 8 AWG. Never force wires of different gauges or excessive strands into the connector.Avoid Over-Tightening: Never use electric wrenches or wrenches with extended leverage arms. Excessive tightening exceeds the metal's yield strength, causing thread damage or body cracks that may lead to future failure.CHOOSE DPWRROT Split Bolt Connectors Grounding Clips for your next electrical job — Built for Durability!

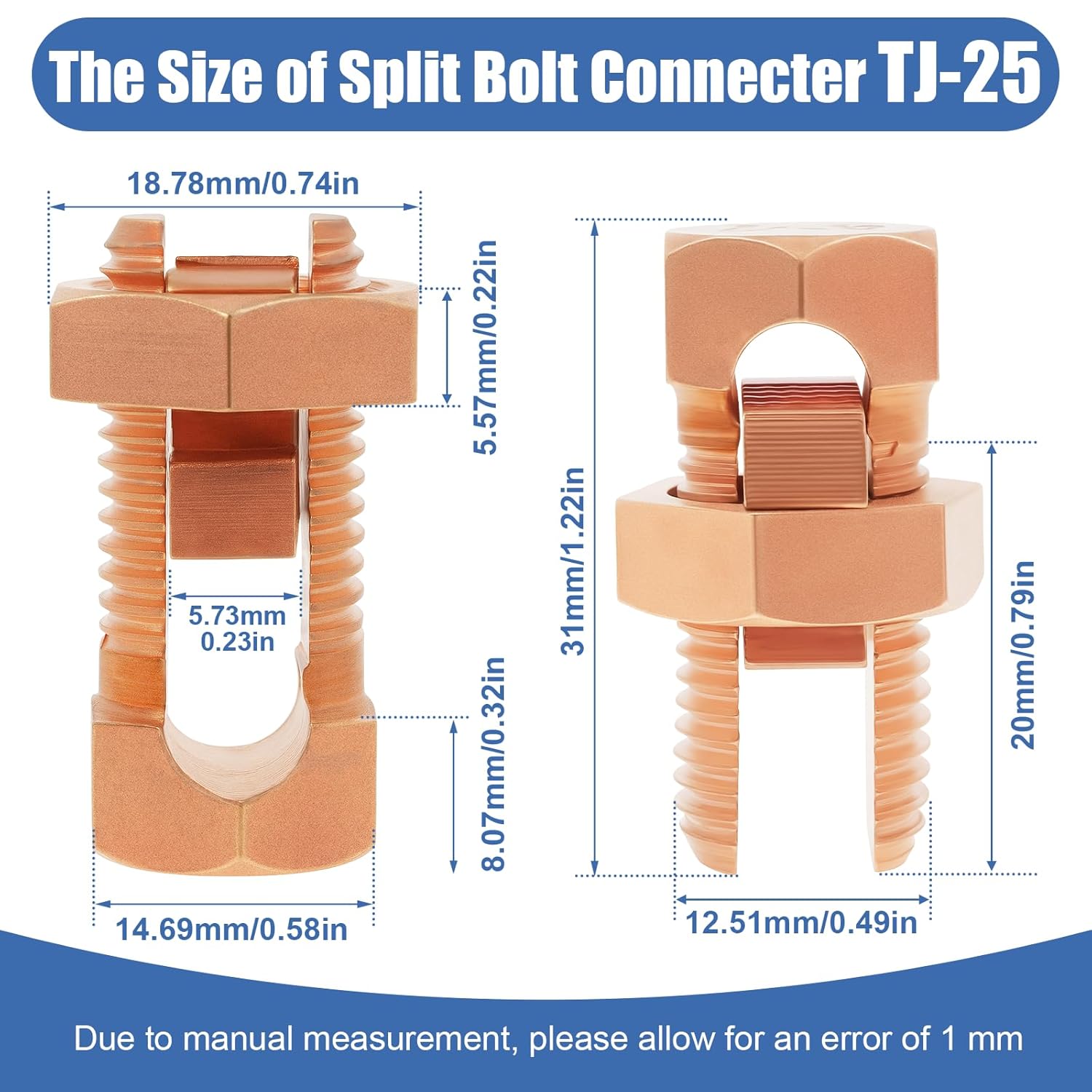

• Wire Range: These Split Bolt Wire Connectors are suitable for bare wires from 4 Gauge to 8 Gauge. 【NOTE】 The TJ-25 marked on the head of this split bolt connector does not represent the tightening force, but indicates that it is suitable for wires with a cross-sectional area of approximately 25 square millimeters or less, that is 4AWG/5AwG/6AWG/ 7AwG/ 8AWG (Nominal Diameter: 5.189mm/0.3643in, 4.621mm/0.1819in, 4.115mm/0.1636in, 3.665mm/0.1443in, 3.264mm/0.1285in).
• Premium Quality: Our TJ-25 Split Bolt Connectors are made of brass coated with copper, because copper is not sufficiently hard and prone to breaking, with threads that are easily worn, and that frequent disassembly and reassembly can affect sealing or conductivity. Our TJ-25 Bolts combine excellent conductivity, low resistance, high mechanical strength, corrosion resistance, and oxidation resistance, and can operate normally in high-temperature, low-temperature, or humid environments
• Applicable Scene: This split bolt connector connects and bonds copper wires and other conductors for many direct burial, grounding, and bonding applications. They are ideal for applications requiring vibration resistance and wear resistance (such as bolts that are frequently disassembled and reused) or where budget constraints necessitate a balance between conductivity and strength
• Package Includes: 36 pieces of split bolt connectors, copper grounding clamps TJ-25. Confirm certification requirements for your installation before purchase.
• Easy Installation: This split bolt wire connector can connect multiple copper wires together without the need for using crimping tools or any other auxiliary equipment.
