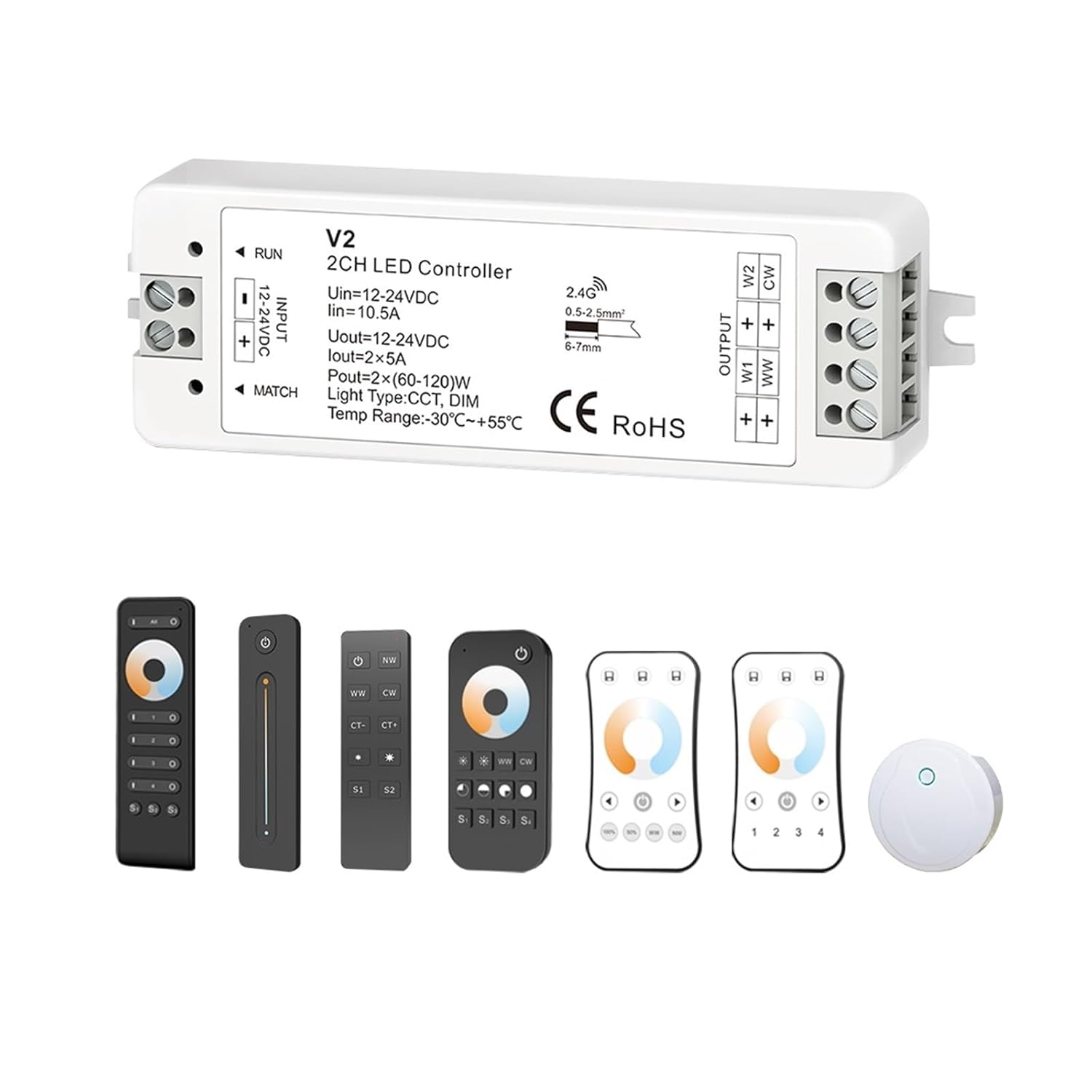

WW CW LED Controller 12V 24V 10A 2CH 2.4G Monochrome CCT Light Bar LED Dimming Controller Remote Control with Bracket V2(LSD-RS2 Remote Only)

Low Voltage TransformersWW CW LED Controller 12V 24V 10A 2CH 2.4G Monochrome CCT Light Bar LED Dimming Controller Remote Control with Bracket V22 channels/stepless dimming/wireless remote control/automatic transmission/synchronizationfeature: controller with 2-channel PWM constant voltage output,The default is a two-color (WW/CW) controller, which needs to be paired with a two-color remote control.It can also be used as a single dimming controller with strong compatibility.Dimming and switching are smooth and flicker-free.Fully compatible with various single-color and dual-color remote controls.Using 2.4GHz technology, the remote control distance can reach 30m.One receiver can accept up to 10 remote controls.controller.Combined with a power amplifier, the output can be infinitely expanded.Technical Parameters:Input voltage: 12-24V DCInput current: 10AOutput voltage: 12-24VDCOutput current: 2CH, 5A/CHOutput power: 120W/240W (12V/24V)Output type: constant voltageInput signal: 2.4GHzControl distance: 30MDimming level: 4096 levelsDimming range: 0 -100%Dimming curve: linearPWM frequency: 2KHz (default)Specification:Product name: 2.4G radio frequency two-color LED controllerModel A: LSD-V2+R12; Model B: LSD-V2+R2; Model C: LSD-V2+R7-1; Model D: LSD-V2+RT2; Model E: LSD-V2+R7; Model F: LSD-V2+RS2; G type: LSD-V2+ relayInput: DC 12V 24VWorking temperature: -20-60℃Maximum load current: 2CH, 5A/CHMaximum output power: 12V maximum 120W, 24V maximum 240W. remote control frequency: 2.4G MHz remote control distance: 30MCompetition Guide:This dimmer can be matched with various single-zone or multi-zone 2.4G dimming remote controls.Option 1: Use match keys1. Matching: Short press the matching button, and within 5 seconds, press the remote control's power button.2. Delete: Press and hold the matching button for 5 seconds to delete all matching remote controls.Option 2: Use power-ups1. Pairing: Turn off the power, then turn the power back on. Quickly press the remote control switch button 3 times within 5 seconds after turning it on. The light flashes 3 times to indicate successful pairing.2. Delete: Turn off the power, then power on again. Quickly press the remote control's on/off key or zone key 5 times within 5 seconds after turning it on. The light flashes 5 times to cancel the link.
