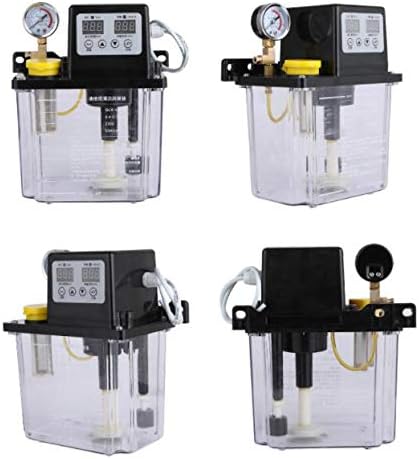

ELEOPTION 110V 2L Dual Digital Display Automatic Lubrication Pump Oiler NC Pump Automatic Cyclic Pump with Pressure Gauge

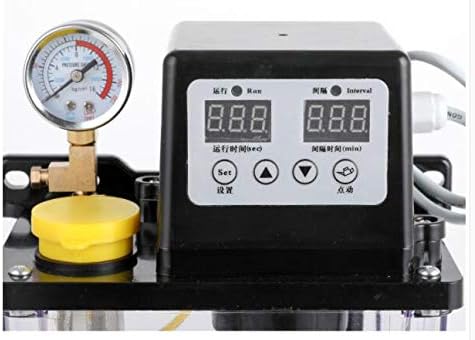

Operation instruction: 1.Set the time interval, long press "SET" key to enter set up status, short press the "SET" key again can choose you need to set up the numbers, press ▲▼ the key, corresponding SET number. First enter the time interval (0-999Min), long press "SET" key to enter running time (0-999 seconds), long press "SET" key to save the set time. 2.The alarm buzzer continuously ring, display shows "ERO" for the oil level alarm, please add gas the fuel tank. 3. Press the inching button, hold down the inching button pump to inter working condition. Parameter: 1. Input voltage:110V 2. Rated Rotary Speed:3360rpm/Min 3. Motor power output:25W 4. Current:0.35A 5. Rated Pressure:10Kgf/cm2 6. Max.Pressure:12Kgf/cm2 7. Volume:2L 8. Discharge capacity:50ml/Min 9. Viscosity:30~1000 C.st 10. Oil-caliber:6mm 11. Size:193*125*227mm 12. Center Pitch:110-148mm Include: 1 x Set of Automatic Lubrication Pump

• Easy installation, simple wiring (direct access to 110V)
• Can replace the manual pump, pump intermittent pre-TM;2. Built-in oil pump buzzer alarm to remind
• Intermittent working time set free, straightforward operation. Set working hours range (1-999 sec

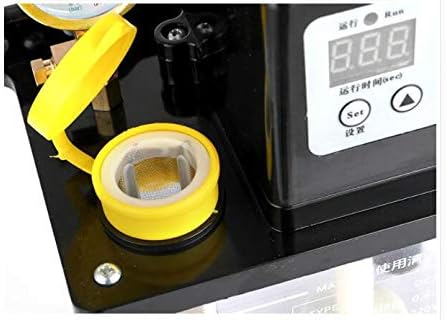

• There are visual oil level gauge and automatic detection devices, when there is insufficient fuel
• Recommend the use of N15 # -N68 # lubricants (oil) rail oil
