Amarine Made 4 Step Boat Ladder with Screws Stainless Steel Telescoping Ladder, Slide Under Platform Mount Boarding Ladder

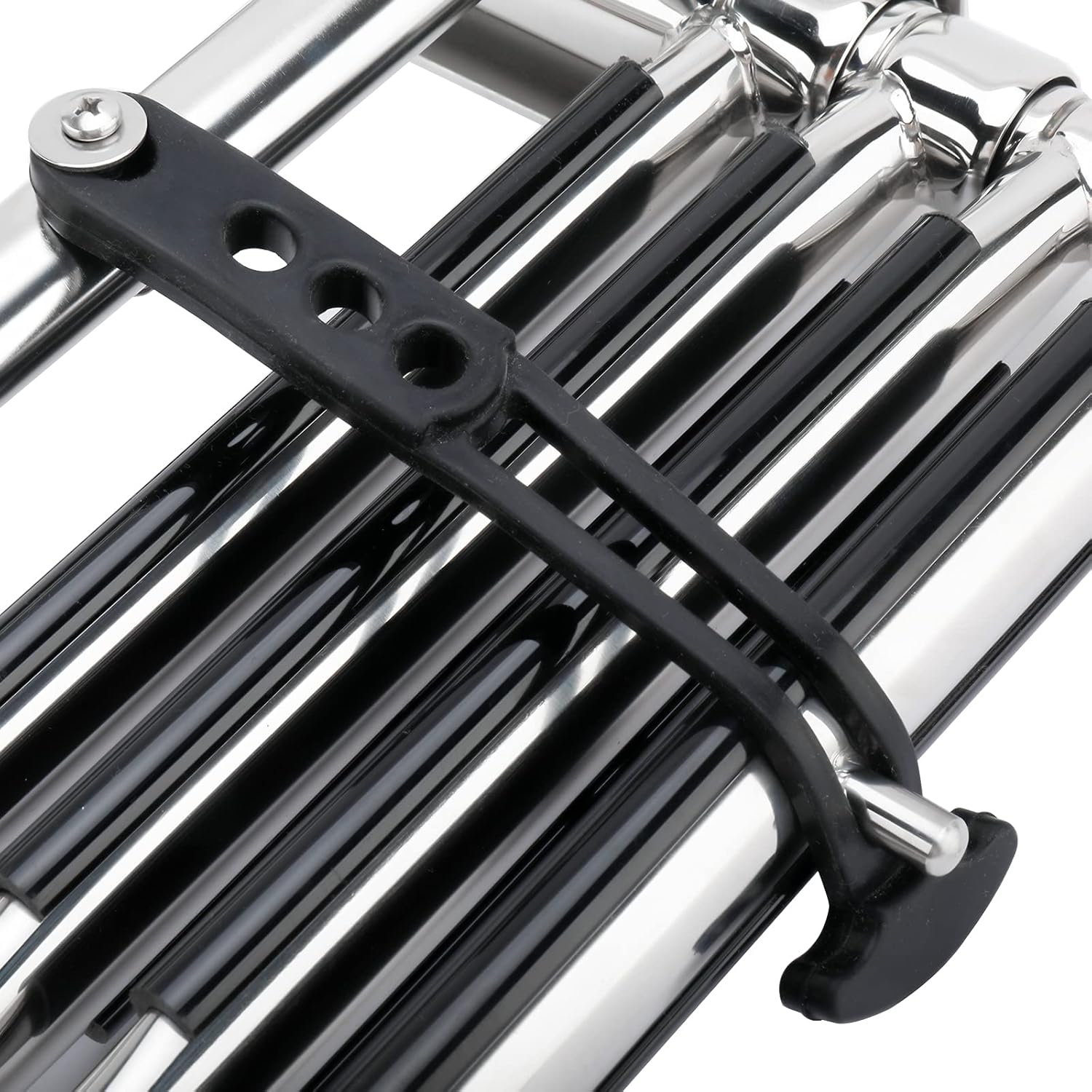

The ladder is to be installed under pontoon deck in the front,good quality stainless steel and the slide/folding mechanism works well.Very well-built, the spring that holds the ladder in the stowed position has plenty of tension to keep the ladder retracted when the boat is running in rough water. And because it has 4 steps it hangs deep into the water. When you are in shallow water simply use a bungee to hold the 4th step up to the 3rd step to prevent it from rubbing the ground.Features: Designed for under platform use - stows easily and compactly . Ideal for installations under swim platforms or under the deck on bow or side of pontoon boats . Ladder stows compactly within its own length . Spring loaded self-locking for stowage . No More dealing with Velcro Straps, Bungee Cords, and Rubber Straps. Carry handle for easy fold and unfold . Flat poly treads for increased comfort . 316 stainless steel - rated to 1190 lbs. How To Mount 1. Choose the most suitable side of your transom platform for mounting the ladder. 2. When mounting, locate a place where the ladder will not interfere with the turning of the motor or be near the propeller of your craft. 3. Position the mounting bracket with the ladder in the area to be attached. 4.Mark the bracket’s eight mounting holes onto the deck surface. 5.Drill the eight marked holes with a suitable drill bit. NOTE: It is recommended to through-bolt this ladder for a secure installation. 6. Mount the ladder in place by holding bracket up to platform and inserting mounting screws. Secure ladder in place with fasteners (not provided, as installations vary). Safety Guildlines No jumping or diving! Do not use when motor is running This ladder designed for boat use only Face ladder when entering boat or water Only one person on ladder at a time Check all steps and hardware before using

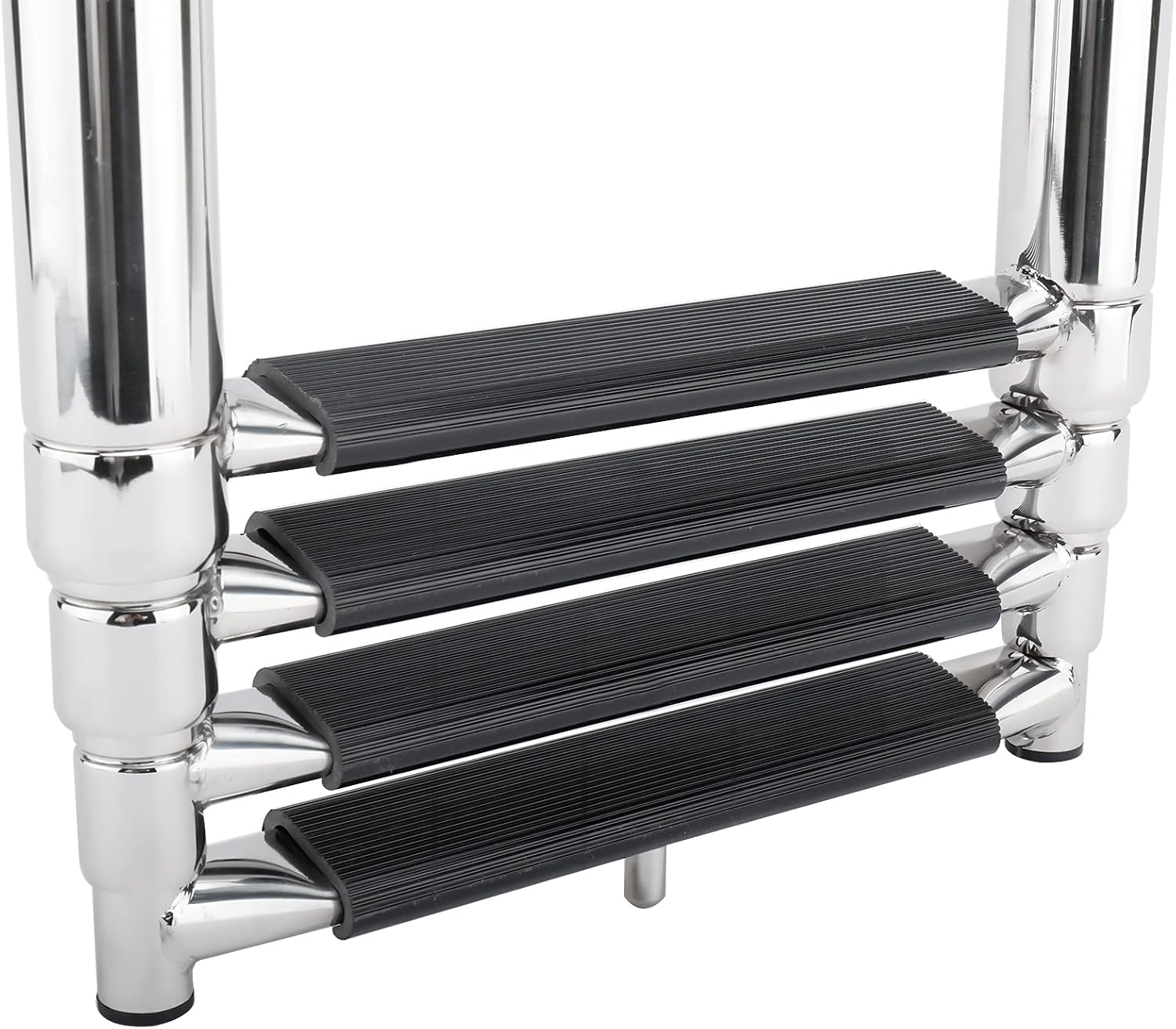

• 【Stuff】Constructed of marine grade 316 stainless steel and have a proofload to support even the biggest swimmer. Each step has a slip-proof plastic tread to assure maximum safety.
• 【Extendable design】The telescoping steps on this boat ladder fold quickly and effortlessly into the water for safe boarding. For storage, the low profile stainless steel steps fold compactly and also gives this boarding ladder a very sleek look.
• 【Mounting Details】Requires minimal amount of depth, fore and aft.Mounts easily under any swim platform or other mounting area.Come with 8 screws.You can also pick up some stainless steel screws from your local hardware store for different usage.
• 【Functions】 This boat ladder is designed to be mounted below your swim grid or other platform. When stowed, it folds flat beneath your swim grid/platform. This leaves your swim grid completely unobstructed, yet the ladder can easily fold out at your convenience. Used as pontoon ladder and dock ladder.

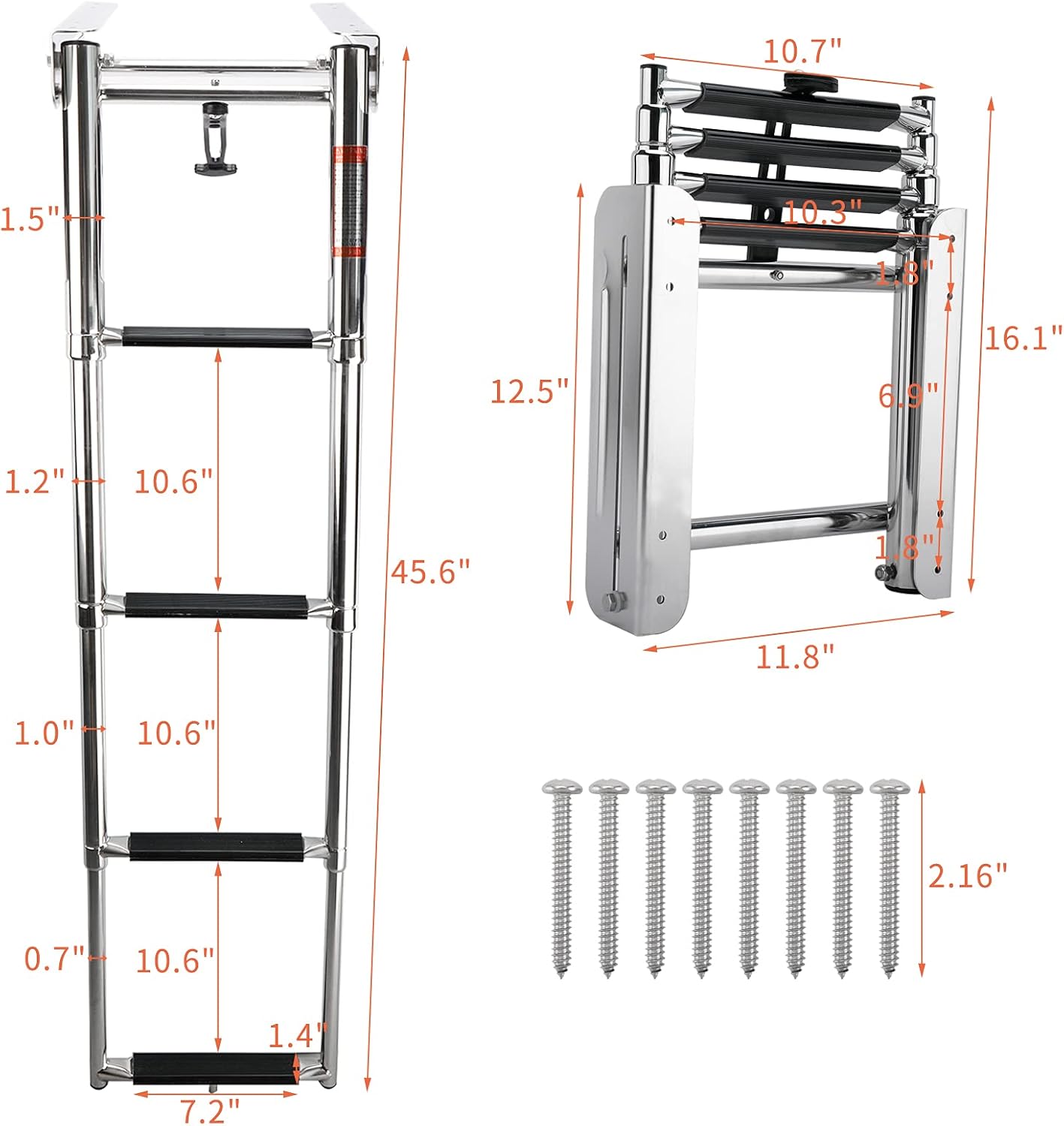

• 【Dimensions】The ladder is 45.6in in length when extended,the distance between each step is 10.6in,the tube thickness is 1.5in,1.2in,1 in and 0.7in from top to bottom.When folded it is 16.1in in length,11.8in width.
