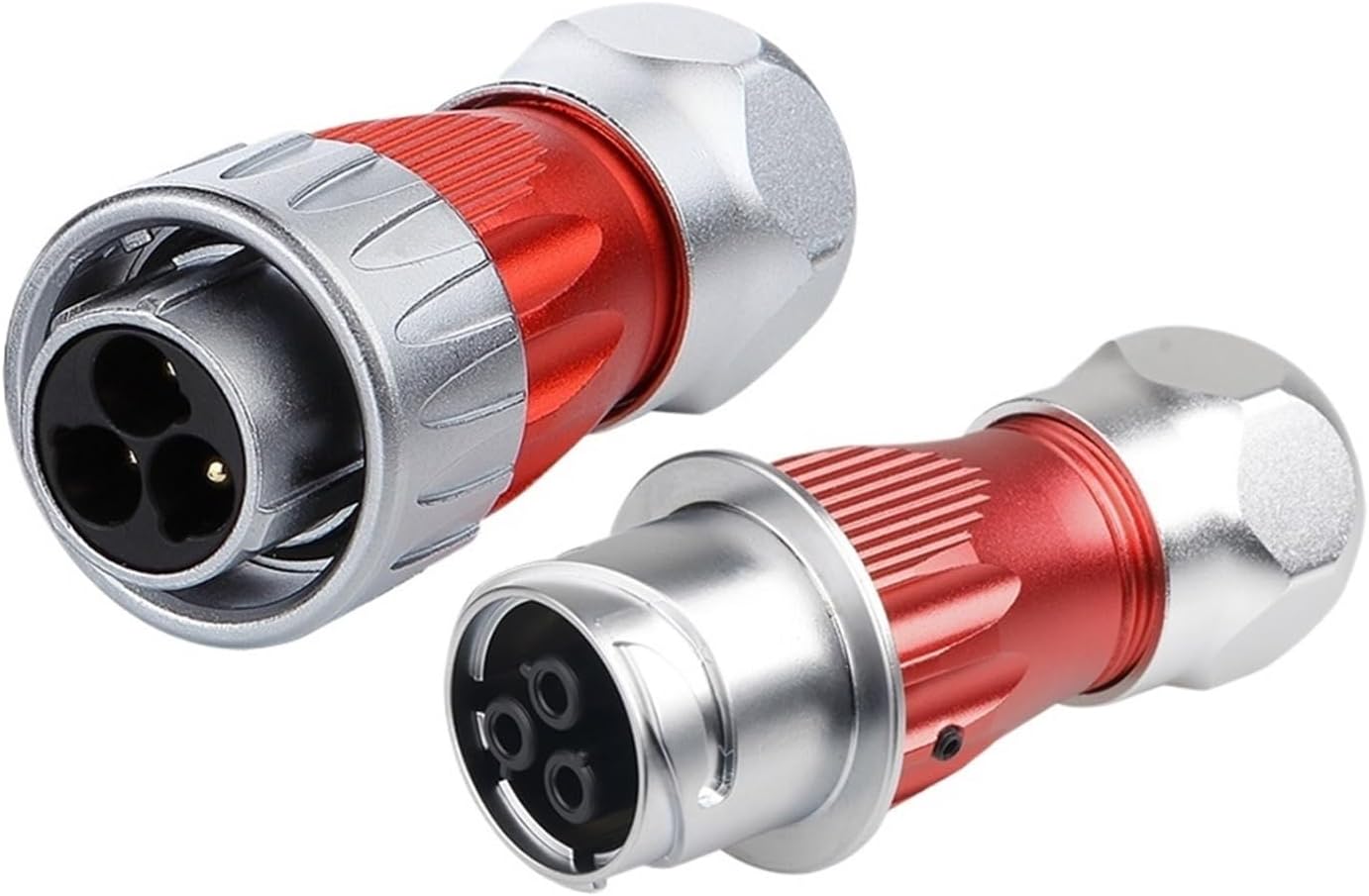

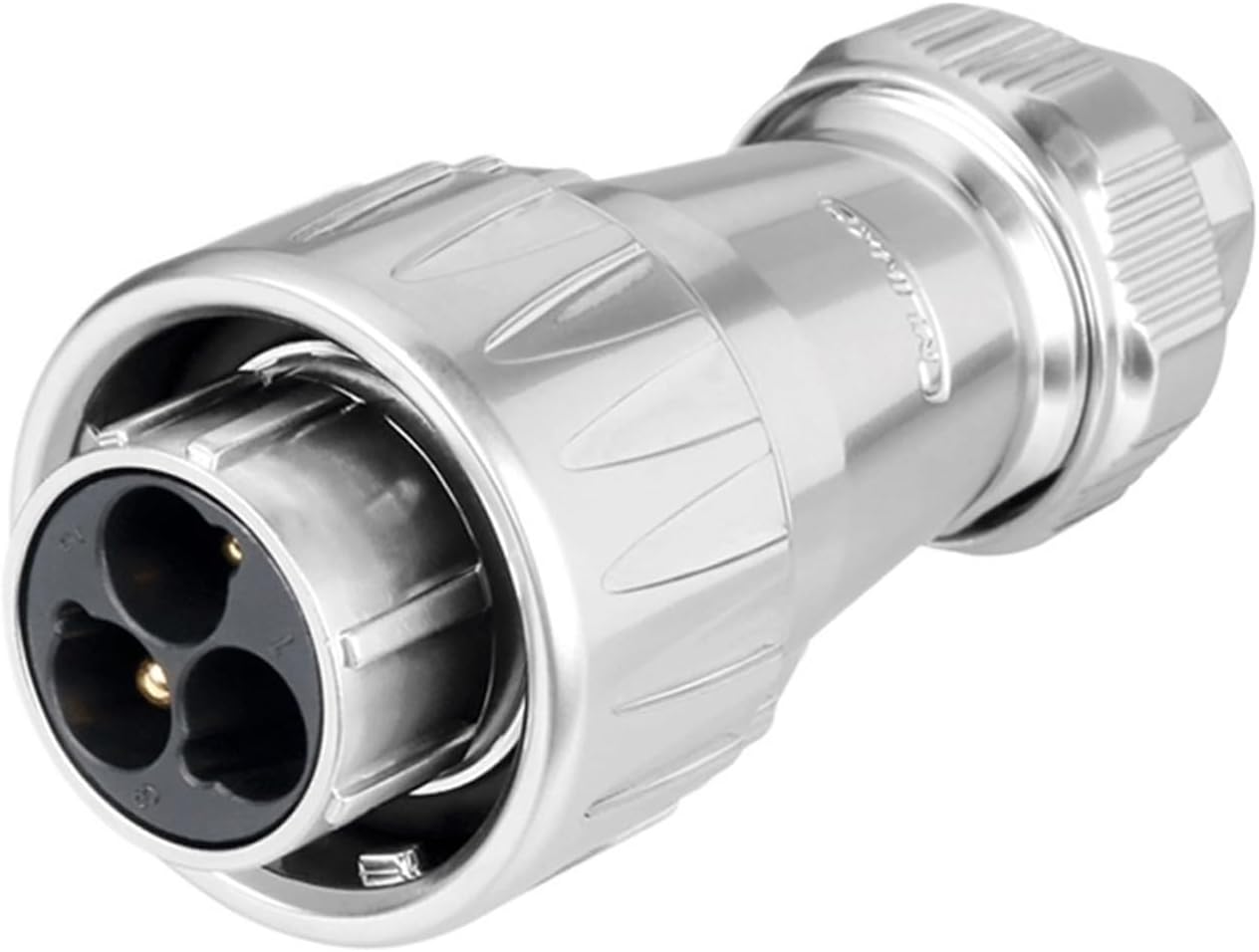

1Pcs M24 300V Waterproof Connector 3 Pin 4 Pin E-Bike Charging Power Panel Socket Electrical Cable(Type B Set,4P)

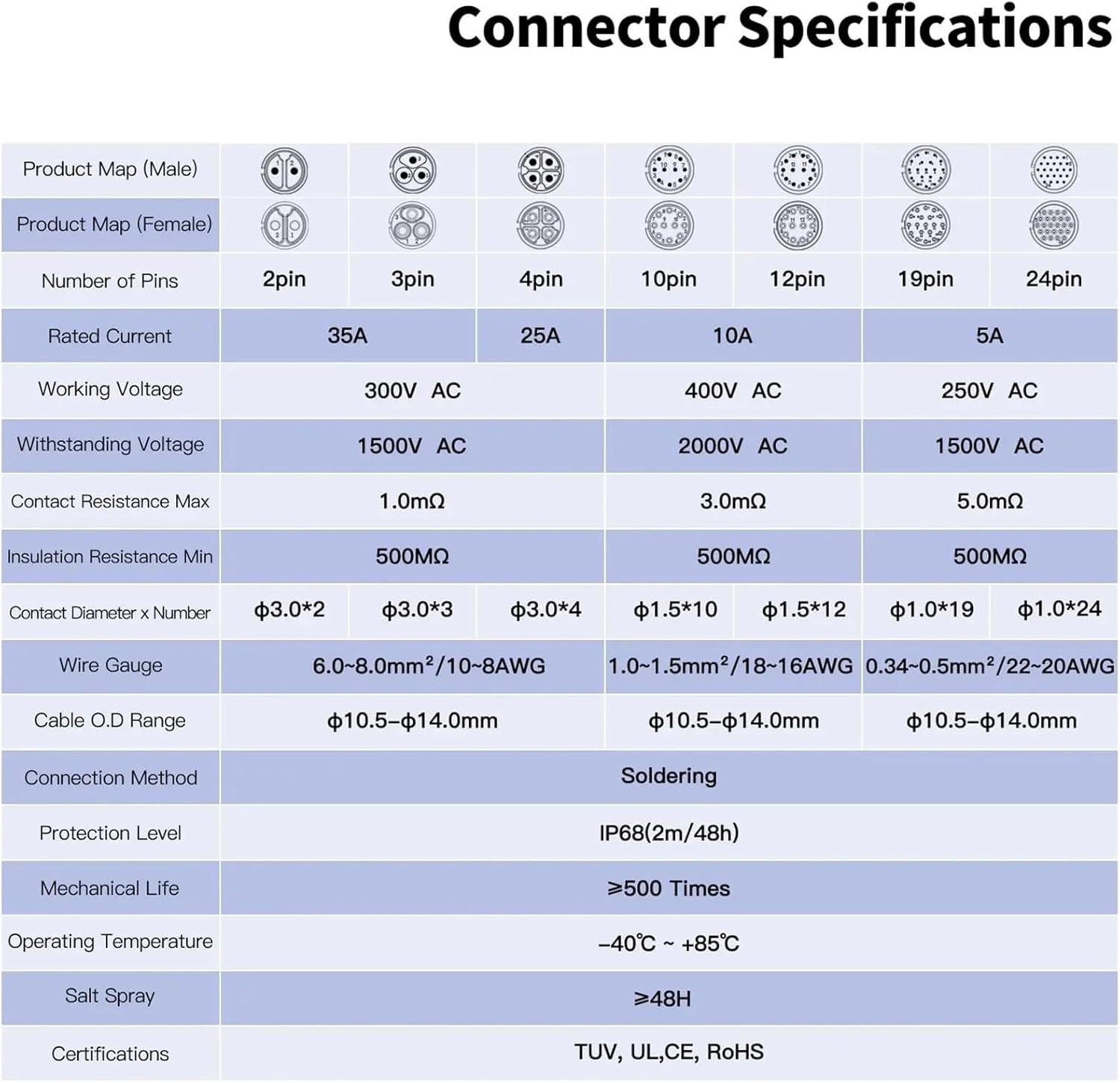

Electrical ConnectorM24 300V Waterproof Connector 3 Pin 4 Pin E-bike Charging Power Panel Socket Electrical Cable Features:300V Voltage CapacityWith a voltage capacity of 500V, this connector can handle high-power applications safely and effectively.IP68 Waterproof RatingThe IP68 M24 connector boasts a high IP68 waterproof rating, ensuring reliable performance in wet conditions.E-bike Charging PowerDesigned specifically for e-bike charging, this connector provides efficient power delivery for your electric vehicle needs. Panel SocketFeaturing an panel socket design, this connector ensures secure and reliable connections in harsh environments.3 Pin 4 Pin OptionsAvailable in both 3 pin and 4 pin configurations, this connector offers flexibility for various electrical systems.==========Hign-concerned Chemical : NoneModel Number : DH-24Cable specification : 2.5~4mm²/14~12AWGDiameter range : Tolerance 10.5mm~14mmAssembly wire : SolderingCurrent rating : 25AOperating voltage (AC.V.rms) : 300VContact resistance(Max.) : 1 omegaWithstanding voltage (AC.V) 1 minute : 2000VInsulation resistance(Min.) : 500m omegaProtection level : IP68Type : Wire connectorApplication : Audio & Video,Lighting,Power,Signal

• IP68 Waterproof Connector – Fully sealed against dust, rain, and harsh environments.
• High Voltage (300V) & – Reliable for e-bike charging, power supply, and industrial use.
• 3-Pin & 4-Pin Options – Versatile for panels, electrical cables, and waterproof needs

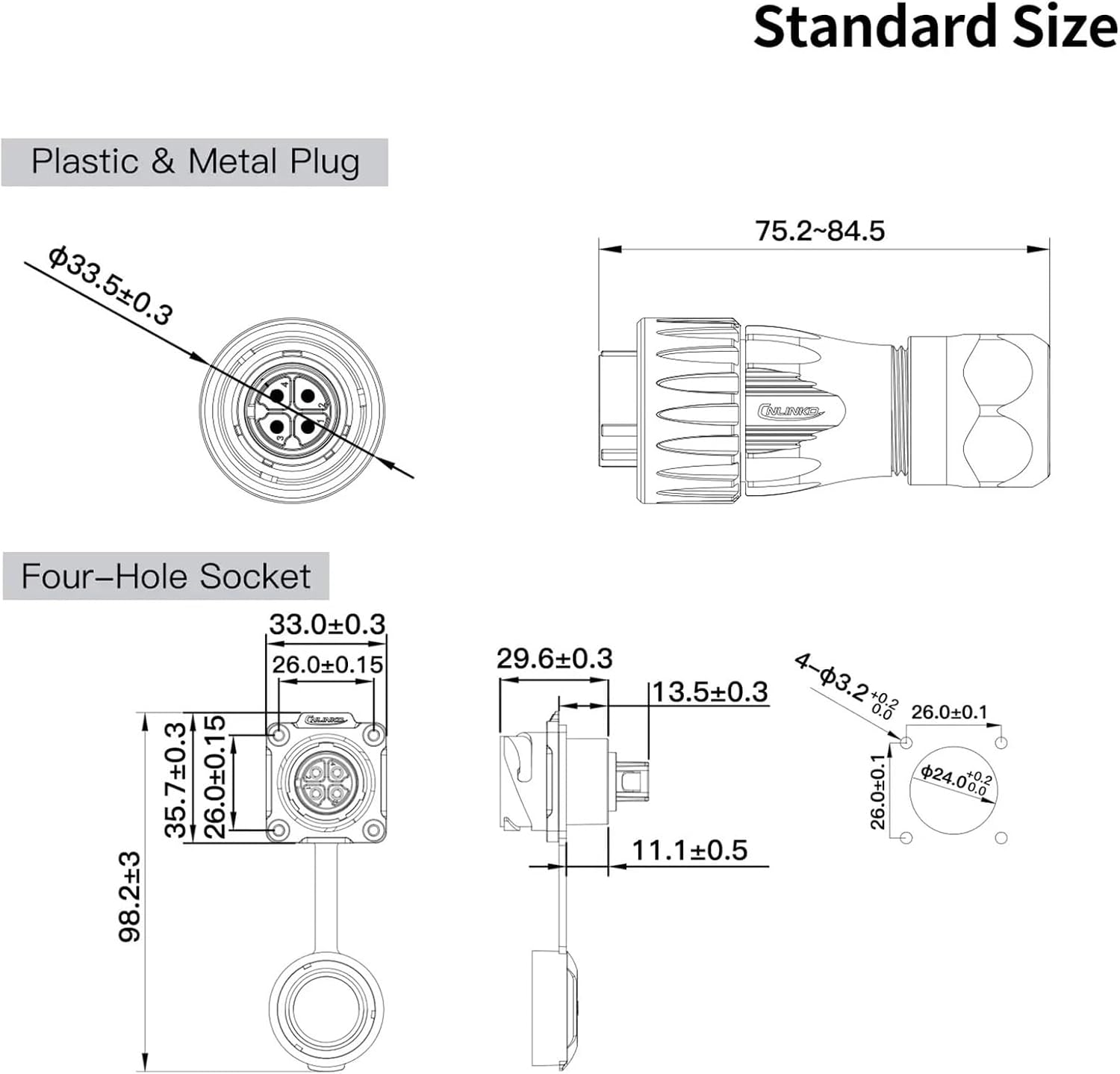

• M24 Threaded Design – Secure screw-lock connection for vibration-proof stability.
• Wide Compatibility – Perfect for outdoor, , automotive, and DIY electrical projects.
