4K UHD 60FPS Microscope Camera IMX 334 180X Autofocus Lens Industrial Electronic Digital Microscope for Phone PCB Soldering(180X Parfocal Lens)

Specification:Sensor: IMX334Real-time output resolution: 4K/2K/1080PSensor Size: 1/1.8inchPixel Size: 2.0 x 2.0 mImage Resolution: 8528 x 4808 (41 MegaPixel)Frame rate: 3840 x 2160 @30FPS(4K); 1080P @60FPSImage Format: JPEGWaveLength[nm]: 400nm~1000nmLens Type: C/CS MountStorage: TF Card, Maximum support 256G (TF card is not included)Language: Chinese, English, Japanese, French, German, Russian, Italian, Korean, TurkishOutput Interface: HDMI/USB Type-C 3.0 interfaceHDR Function: Support HDR,Multiple exposure HDR, Digital overlap HDRVideo output interface: HDMI/USB dual interface can output image simultaneouslyTimer function: Support taking pictures/video recording at specified timeComparison on the same screen: Real-time observation and comparison of two productsWhite Balance: Support One-click, Auto and Manual white balanceImage Zoom: 7x digital zoomTransverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable Different color,5 horizontal line, 5 vertical line, any positionsExposure: Auto/Manual, value adjustableEncode: H.264 /H.265 (High Profile)Video format: Video formatInput V: Type-C 5V / DC 12V 1ASize: 45×45×53mm180X Parfocal Lens:Working distance: 105mm (Autofocus only work at this working distance)Connector: C-mountField of View: 1-10mmObjective Lens: 0.7X - 5X(about 10 - 180X on the display)Fixed working distance with autofocus144 LED Light:100,000 hours of lifeIntense and focused shadow-free illuminationThe brightness of 0-100%Adjustable,high brightnessVariable intensity controlPower input: 100-240V, 50-60HZSuit for the dia of the lens: 30mm-63mmPackage list:1 x 4K Camera HY-61101 x USB Cable1 x Measurement Software1 x Remote Control1 x 144 LED Light (optional)1 x 180X Parfocal Lens (opt

• Sensor: IMX334; Real-time output resolution: 4K/2K/1080P; Sensor Size: 1/1.8inch.
• Pixel Size: 2.0 x 2.0 m; Image Resolution: 8528 x 4808 (41 MegaPixel) Frame rate: 3840 x 2160 @30FPS(4K); 1080P @60FPS; Image Format: JPEG. Output Interface: HDMI/USB Type-C 3.0 interface.

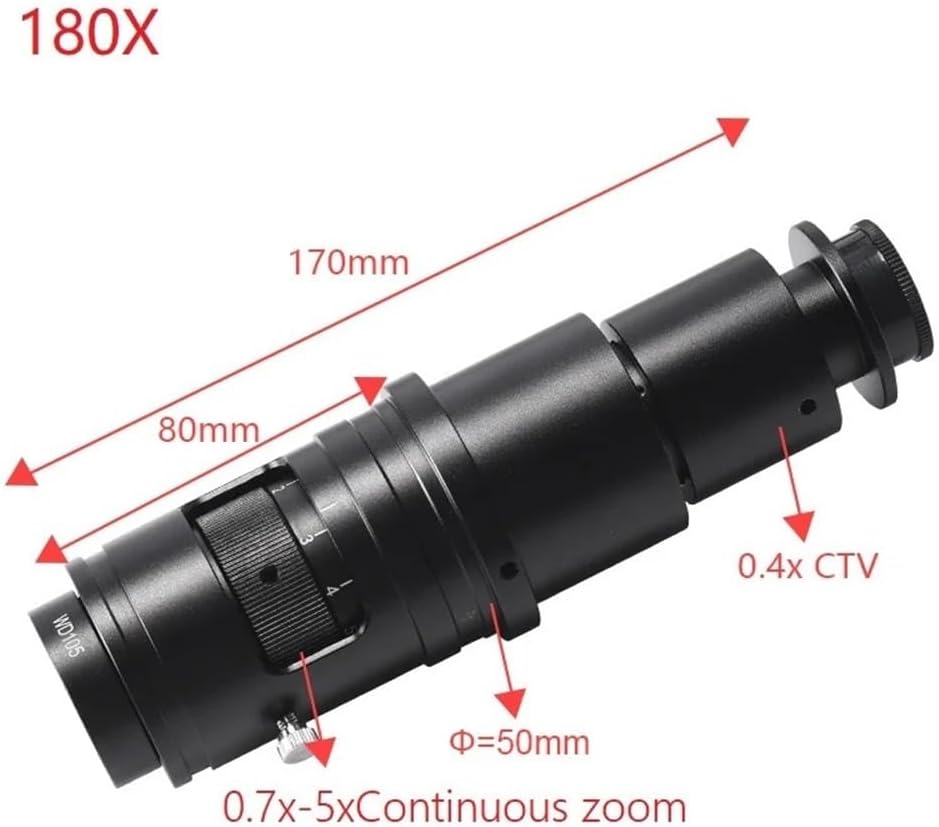

• 180X Parfocal Lens: Working distance: 105mm (Autofocus only work at this working distance) Connector: C-mount Field of View: 1-10mm; Objective Lens: 0.7X - 5X(about 10 - 180X on the display) Fixed working distance with autofocus.
• 144 LED Light: 100,000 hours of life; Intense and focused shadow-free illumination; The brightness of 0-100%Adjustable,high brightness; Variable intensity control; Suit for the dia of the lens: 30mm-63mm.
• From adjustable LED illuminators to durable mounting arms, each product ensures precise alignment, stability, and enhanced functionality—ideal for labs, research, or industrial inspection workflows.
• Boost productivity with accessories engineered, So Please Be Confident To Choose Us.Our team resolves issues within 24–48 hours, Please Feel Free To Contact Us For Any Inquires Or Problems.
