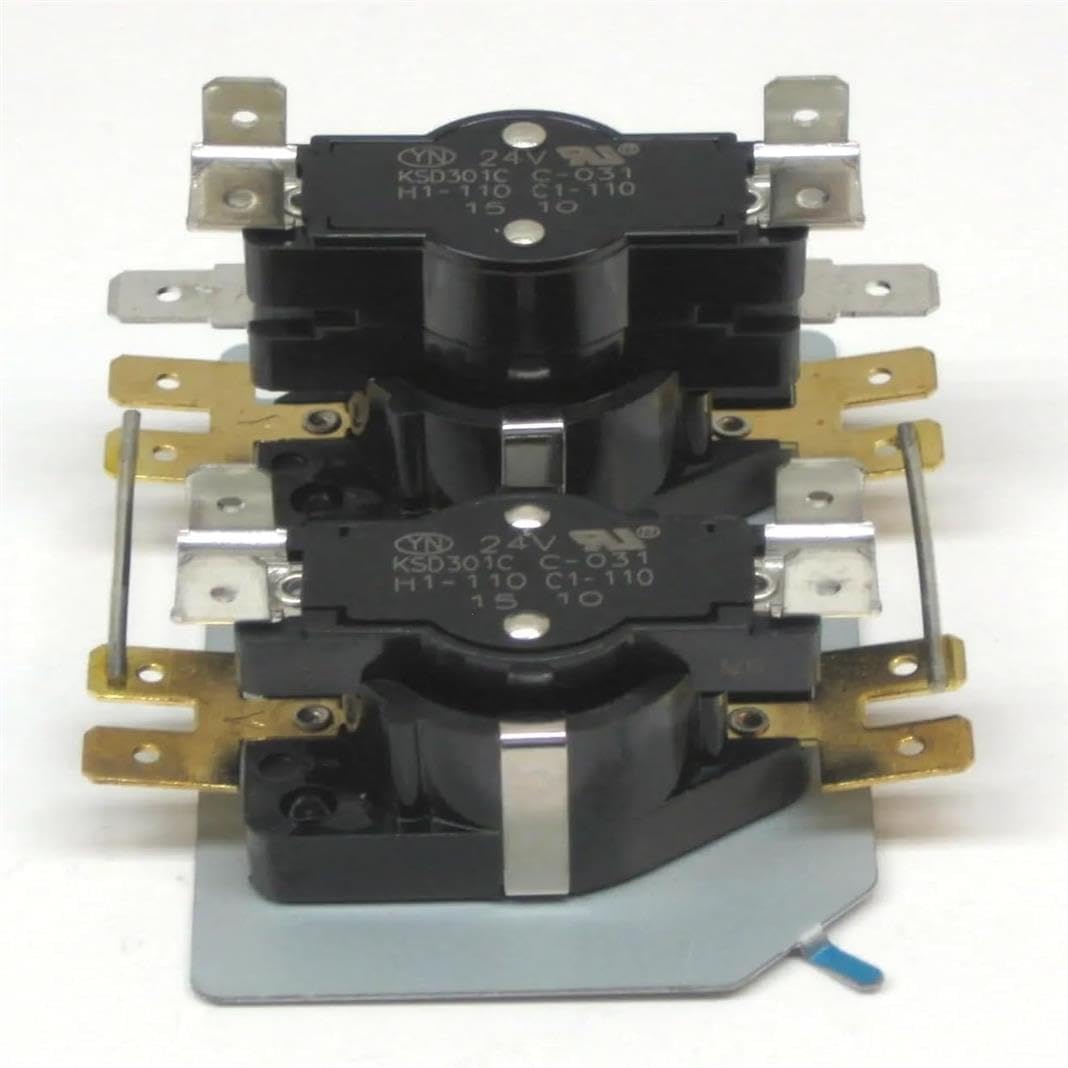

Electric Heat Sequencer Control DPST-SPST 24 Volt for Q105 DGS105 51172-32 33232, 33832 NS105 Q105 24A34-5 TDR30 525-37327-000
4.3 (15 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210864260 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 210864260 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Electric Heat Sequencer Control DPST-SPST 24 Volt for Q105 DGS105 51172-32 33232, 33832 NS105 Q105 24A34-5 TDR30 525-37327-000 Parts Connect Sequencer part number PCQ105.24 Volts DPST-SPST 2 Timing / 3 Switch Off 1-110 Seconds On 1-110 Seconds PSQ Models are Direct Replacement for Most Fan / Heat Sequencing Functions. COMBINED LOAD RATING TABLE 30A @ 240 VAC TOTAL, 23A Non-Inductive + 7 FLA / 42 LRA Inductive, ON Time: Elapsed time to make contacts after heater is energized (min. to max.) OFF Time: Elapsed time to break contacts after heater is de-energized (min. to max.) M1-M2 and M3-M4 are always first switches to turn ON and last to turn OFF. All other switches are random ON and random OFF NOTE : Underwriters Laboratories requires a fan interlock circuit to insure the blower remains operating whenever more than one sequencer is used. The fan interlock should be the M1/ M2 contacts of the second or third sequencer. All M1/ M2 contacts are wired to the blower motor so that any sequencer that is energized will keep the blower ON. › See more product details
- Electric Heat Sequencer Control DPST-SPST 24 Volt for Q105 DGS105 51172-32 33232, 33832 NS105 Q105 24A34-5 TDR30 525-37327-000
- Parts Connect Sequencer part number PCQ105.24 Volts DPST-SPST 2 Timing / 3 Switch Off 1-110 Seconds On 1-110 Seconds PSQ Models are Direct Replacement for Most Fan / Heat Sequencing Functions.
- COMBINED LOAD RATING TABLE 30A @ 240 VAC TOTAL, 23A Non-Inductive + 7 FLA / 42 LRA
- Inductive, ON Time: Elapsed time to make contacts after heater is energized (min. to max.) OFF Time: Elapsed time to break contacts after heater is de-energized (min. to max.) M1-M2 and M3-M4 are always first switches to turn ON and last to turn OFF. All other switches are random ON and random OFF
- NOTE : Underwriters Laboratories requires a fan interlock circuit to insure the blower remains operating whenever more than one sequencer is used. The fan interlock should be the M1/ M2 contacts of the second or third sequencer. All M1/ M2 contacts are wired to the blower motor so that any sequencer that is energized will keep the blower ON.
| Part Number | VVQuang0503-733 |
|---|---|
| Manufacturer | VVQuang0503-733 |
| Power Source | hand_powered |
| Item model number | VVQuang0503-733 |
| Product Dimensions | 1 x 1 x 1 inches |
| Included Components | No |
| Warranty Description | No |
