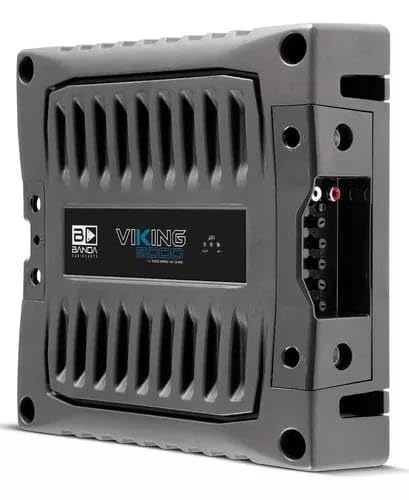

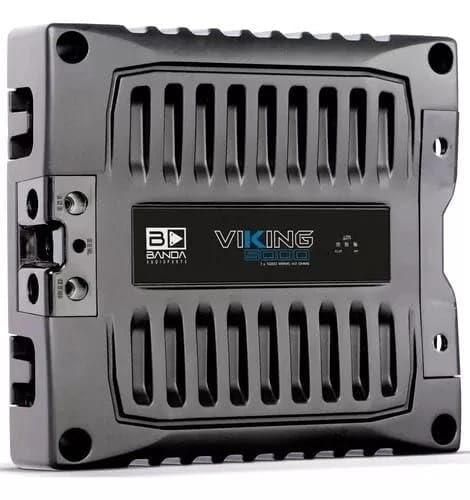

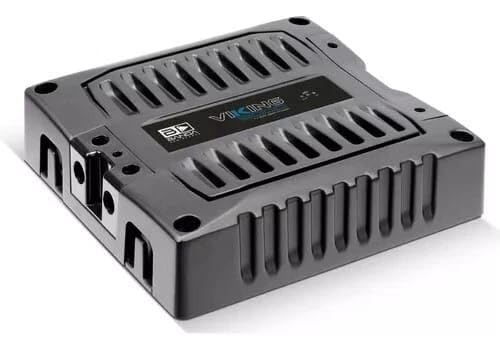

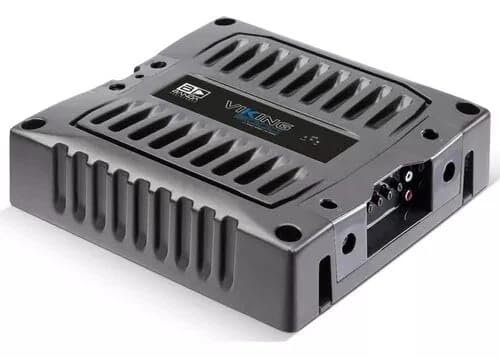

Banda Audioparts VIKING5000.1 Car Audio Mono Amplifier 1-Channel 5000 Watts Max 1- Ohm with Bass Boost Highpass Filter and Low Pass Filter

Product Details Banda Viking 5001 Mono 1 Channel 5000W RMS 1 Ohm Amplifier Module To get a barbaric sound , the Banda goes from Viking 5000 . This amplifier module achieves 5000W RMS with nominal impedance at 1 Ohm . Through the mono input of wire , you mount a complete system with the high quality of their performance . Ideal to protect the system with distortion and short indication , the sound module is manufactured with a high-strength metal housing . In addition to dissipating less heat as it is a Class D module , the Viking 5000It has micro fans for temperature control . Features gain control and active crossover for low pass adjustment from 30 to 8000Hz . So it can boost the frequencies of your sound project with superior quality. Available model: 1 Ohm Specification: Model Viking 5001 Power 5000W RMS 1 Channel Mono Power 5000WRMS @ 1Ohm/12.6VDC Power 6700WRMS @ 1Ohm/14.4VDC Power 3600WRMS @ 2Ohms/12.6VDC Power 4300WRMS @ 2Ohms / 14.4VDC Approximate full power consumption @ 12.6VDC: 400A (music signal) Operating class D Active Crossover Linkwitz-Riley Low-Pass variable 30Hz to 8000Hz (12dB/octave) Frequency Response from 30Hz to 8000Hz Variable Subsonic Filter from 30Hz to 120Hz Total Harmonic Distortion (THD) less than 0.3% Signal to Noise Ratio (S/N) better than 82.4dB Damping Factor > 100 Input Sensitivity from 0.2 to 4Vrms Signal Input Impedance 47kOhms Signal Input in Differential Mode Dedicated Control System: Evaluates the working conditions checking for short circuit in the output Blue LED indicator of Source and amplifiers On/On Red LED indicator for Distortion at output (Clipping) or short circuit at output Yellow LED indicator for Out of fuse/Battery voltage below specified. Approximate Dimensions (LxHxW): 443x64x257mm Attention: In accordance with Federal Law No. 11.291, prolonged exposure to noise greater than 85 dB can damage the hearing system. Package Contents: 1 Banda Viking 5001 Module Important Instruction Manual :

• "GENERAL || Brand : BANDA Audioparts || Model Number : VIKING5000.1 || UPC : 7898713132056 || BANDA 5000 WATT 1 OHM CAR AMP ||
• "TECHNICAL SPECIFICATIONS || * Class D || * Total Power 14.4 @ 1 Ohm: 6200 WRMS || * Total Power 14.4 @ 2 Ohms: 4300 WRMS || * Total Power 12.6 @ 1 Ohm: 5500 WRMS || * Total Power 12.6 @ 2 Ohms: 3600 WRMS ||
• " * Efficiency @ 2 Ohms: 77% || * Efficiency @ 1 Ohm: 67% || * Input Voltage: 9 to 15V || * Input Impedance: 100K Ohms || * THD+Noise: less than 1% || * Input Sensitivity: 40mV to 2V || * SNR: 90dB || * Frequency Response (Key OFF): 5 to 5KHz (-3dBs) || * Frequency Response: 20 to 5KHz (-3dBs) || * Bass Bosst @ 45Hz: Variable 0 to +18dBs ||
• " * HPF (Subsonic): 20 to 80Hz @ 12dB/octave Linkwitz-Riley || * LPF (Crossover): 80 to 5kHz @ 12dB/octave Linkwitz-Riley || * Recommended Fuse: 250 A || * Current at Rest: 3.5 A || * Average Current Draw (Sinusoidal): 600 A || * Average Current Draw (Music): 270 A || * Power Wire Gauge (min. Recommended): 50mm / 0 AWG || * Speaker Wire Gauge (min. Recommended): 2 x 6mm / 2 x 3 AWG ||
• "DIMENSIONS || * Weight (Lb): 11.9 || * Height (in): 2.4 || * Width (in): 10.6 || * Depth (in): 12.3
