Hantek Digital Oscilloscope DSO2D20 200 MHz with Dual Channels Lab Oscilloscope 2GSa/s Sample Rate with 1CH 25MHz Arbitary Waveform Generator 7 inch LCD (200MHz/2+1CH/Hantek DSO2D20)
4.3 (140 items)
Limited Time Sale$179.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210908443 | Release Date | 2026/04/04 | List Price | $120.00 | Model Number | 210908443 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Core parameters: Dual-channel, 2 GS/s sampling rate, 200 MHz bandwidth; maximum storage depth of 80 Kpts (single-channel) and 40 Kpts (dual-channel); Time base range: 2 ns/div to 1 kS/div; Support 1 MΩ/50 Ω impedance switching to ensure signal integrity; 8-bit vertical resolution; 500 uV-10 V vertical measurement gear, 300 VCAT Ⅱ withstand voltage input

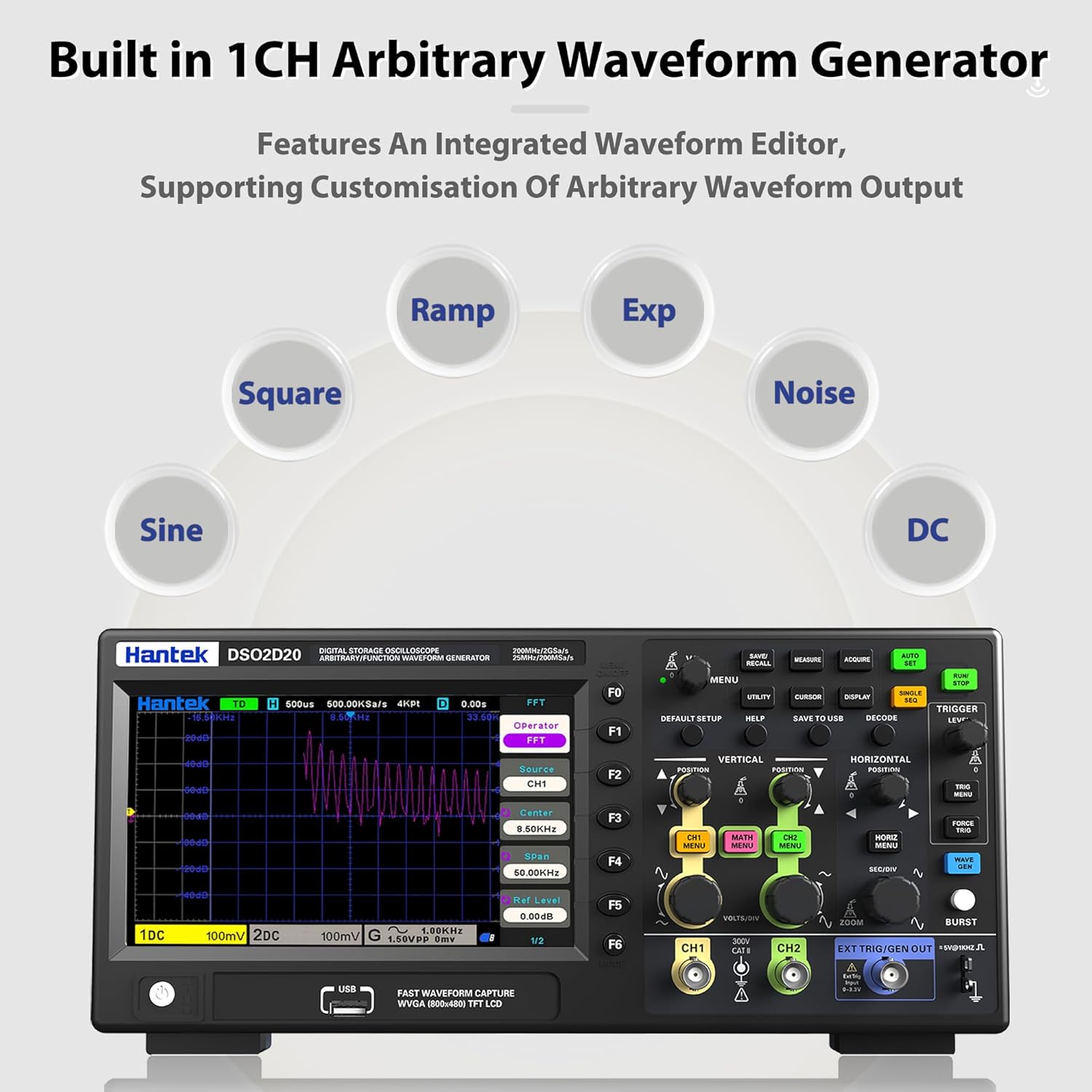

- Arbitrary waveform signal generator: 1CH AWG, 200 MSa/s real-time sampling rate; 0.1 Hz-25 MHz waveform frequency range; 4 K arbitrary waveform length; 12-bit vertical resolution; can output 5 standard waveforms, comes with a waveform editor, and supports custom arbitrary waveform output.
- Full functionality:Standard SCPI remote control instructions, convenient for users to build testing systems; Comes with five standard serial protocol triggers and decoding, supporting protocols including UART, LIN, CAN, SPI, IIC, making it easy to analyze serial bus data;Save and export function, which can save settings CSV, Information such as images, reference waveforms, and waveforms;Four sampling methods: normal, average, peak, and high-precision
- High usability and compatibility:14 operating languages, including English, German, French, Italian, Spanish, Polish, Dutch, Portuguese, and other popular languages;Manual, single time, one click AUTO measurement, simple and fast waveform measurement;XY mode supports dual window display, making it easy to understand waveform phase changes
- Powerful measurement and analysis functions:32 automatic measurement and threshold measurement functions, with test results supporting statistical analysis;There are two cursor measurement modes: manual and tracking, and the Math function also supports cursor measurement;FFT scale display, convenient for reading results
- Applicable scenarios: Diagnosis and repair of household appliances, automobiles, audio equipment, etc.; capturing and analyzing special signals generated in laboratory experiments; precise analysis of signals generated during the design, testing, and optimization of circuit boards, chips, and systems by engineers; teaching of electronics and electrical engineering-related courses in university laboratories or training institutions
| Item Weight | 6.2 pounds |
|---|---|
| Manufacturer | Hantek |
| Product Dimensions | 12.6 x 4.9 x 6 inches |
