Hollow Shaft Single Shaft Magnetic Powder Brake 24V 6-100Nm(0.6-10kg) 1000RPM Tension Controller Kit for Printing Dyeing Machine

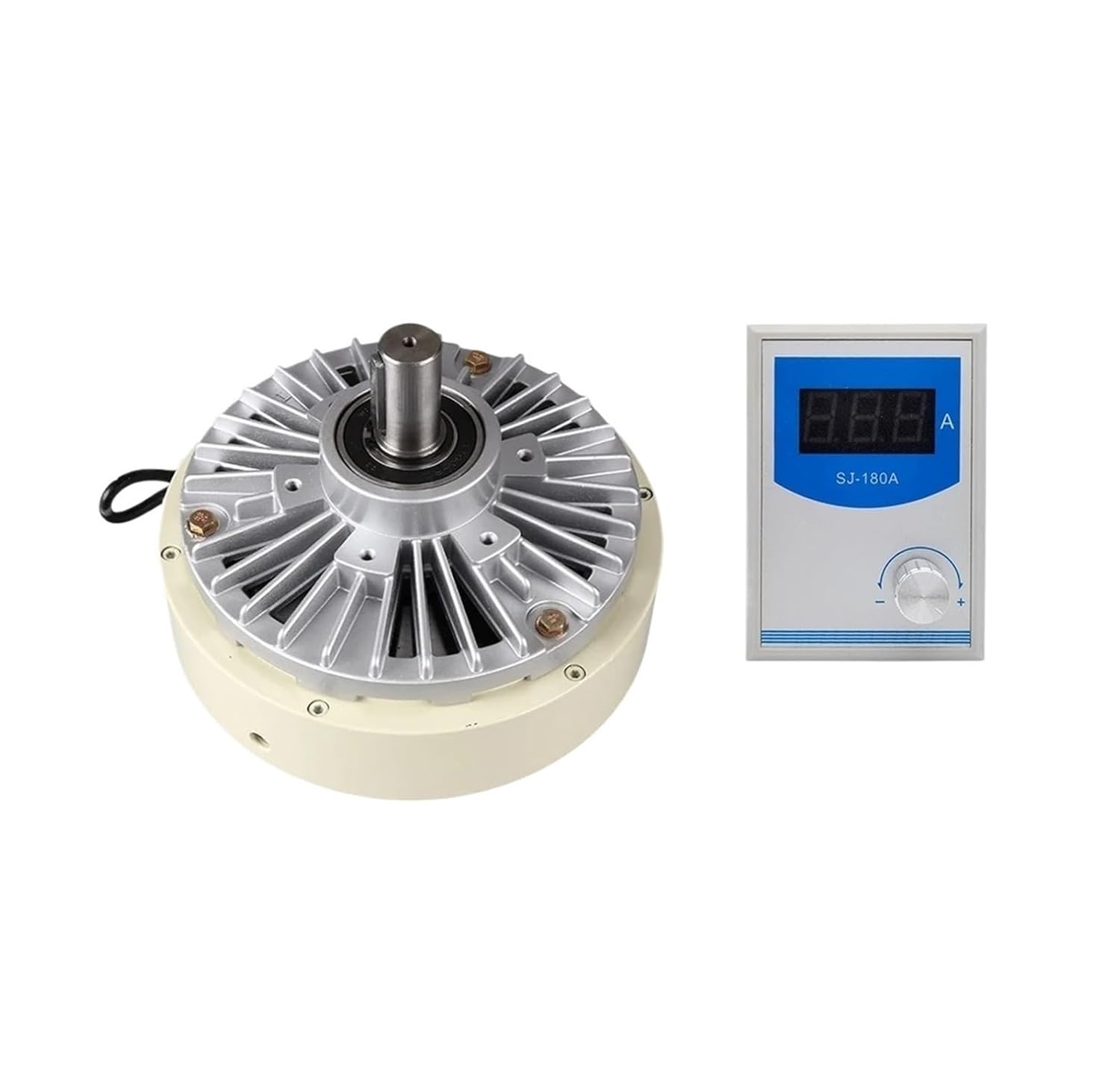

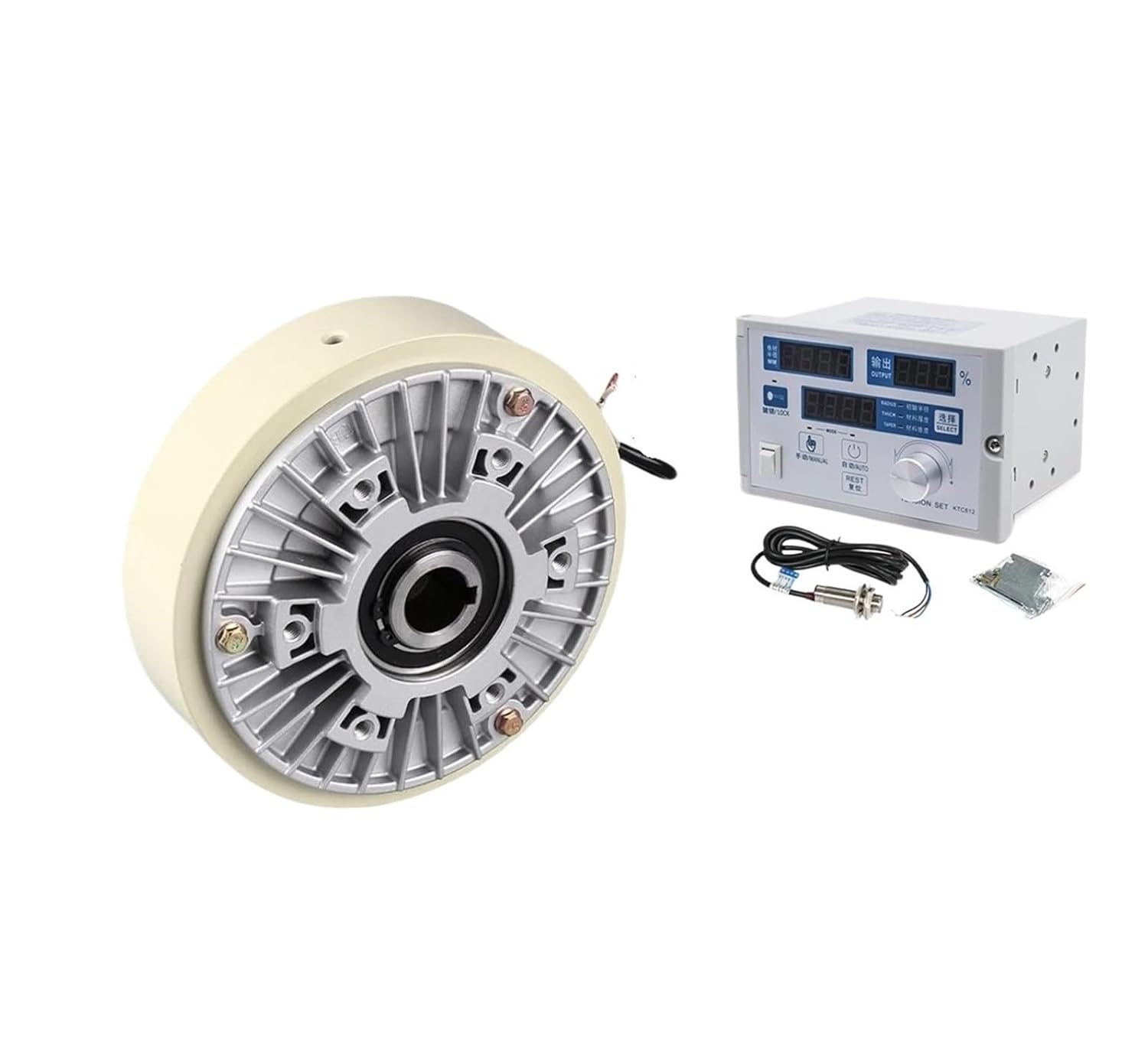

Single shaft/Hollow shaft Brake1*Hollow shaft/Single shaft Magnetic Powder BrakeSingle shaft/Hollow shaft Brake-SJ-180A/TB-200S1*Hollow shaft/Single shaft Magnetic Powder Brake1* Manual Tension ControllerSingle shaft/Hollow shaft Brake-KTC-8121*Hollow shaft/Single shaft Magnetic Powder Brake1* Manual/Automatic Tension Controller1* Hall SensorSingle shaft/Hollow shaft Brake-KDT-B-10001*Hollow shaft/Single shaft Magnetic Powder Brake1* Automatic tension controller2* Pressure Sensor1* Hall switchSJ-180ASmall Tension ControllerParameters:Model: SJ-180AInput Voltage: DC24VOutput Voltage:DC24VOut Current: 0~4AOverall size: 96X69X32MMType: Manual controller / PLC / PotentiometerTB-200STension ControllerParameters:Input voltage: AC 180V-265V 50/60HzOutput Voltage:DC0~24VOutput current: 0-3AExternal Signal control: 0~10VDC or 0~5VDC (Switchable)Precision:0.01AType:Manual controller / PLC / PotentiometerOverall size: 160x100x70mm (width x height x depth)Mounting size: 163x103x70mm (width x height x depth)Installation methods: W all-mounted, floor-mounted, embeddedControl method: Manual adjustment of switching power supplyOutput display: Digital displayApplicable machine: M agnetic powder brake, magnetic powder clutchAuxiliary function:F ixed control current, short-current protectionWorking environment: Corrosive gas, dust, rainwater are not allowedWorking temperature: -10~50Working humidity:Below 80%KTC-812 AutoTensionControllerParameters:Power Supply: 185V-265VAC 50/60HzOut Voltage: 0~24VDCOutput current:0-4AExternal Signal control: 0~10VDCPrecision:0.01AType: Manual controller / PLC / PotentiometerWorking Temperature: -10~40 degree centigradeParameter characteristics:Manual/automatic operationEncoder or Hall switch can be connectedIt can store the parameters of 9 different materialsConstant tension/taper tension controlOutput 0 - 2 4 V/4 A, automatic overcurrent protectionAll parameters and states of the automatic memory systemAdjustable magnetic powder brake/clutch torque compensationKDT-B-1000 Auto Tension ControllerParameters:Measuring range: 0-1000NMeasurement accuracy: less than 1NSampling speed: 100 millisecondsMain output mode: DC 0-2A constant current output (adapted load impedance 8-12)Auxiliary output: DC 0-5V (MAX 10MA) analog signal outputDimensions: 245 × 155 × 140 (mm) (width × height × depth)Installation size: 230 × 150 × 120 (mm) (width × height × depth)Power source: AC 180-245V 50/60HzFeatures:It consists of tension detector, high precision A/D, D/A converter and high performance single chip microcomputer.It can be widely used in various occasions where precision measurement and control is required. It has flexible use and wide applicability.LCD display can be displayed in Chinese or EnglishAutomatic and manual switching is simple and convenientTension detector wiring is simple and convenientConvenient parameter setWith double station axis output functionVoltage : 24VMaterial : Carbon SteelModel Number : FZ-6/12/25/50/100-K/DOrigin : Mainland ChinaCertification : CESpeed : 1000RPM

• Comprehensive Tension Control:Benefit from a wide range of control options including automatic tension with overcurrent protection and a digital display for real-time monitoring.
• Versatile Mounting Options:Accommodate diverse installation needs with the hollow shaft design, allowing for wall, floor, or embedded mounting for seamless integration.
• User-Friendly Control:Select from manual, PLC, or potentiometer control methods, providing flexibility in operating this magnetic shaft power brake.
• Durable & Reliable:Constructed with carbon steel, the magnetic shaft withstands up to 105℃ and features a 0.01A precision for consistent performance.
• 0.6 10|Adjustable Speed & Tension:Achieve precise control with a 1000RPM speed and adjustable tension from 0.6 to 10kg/nm, ensuring optimal performance for printing and dyeing machines.
