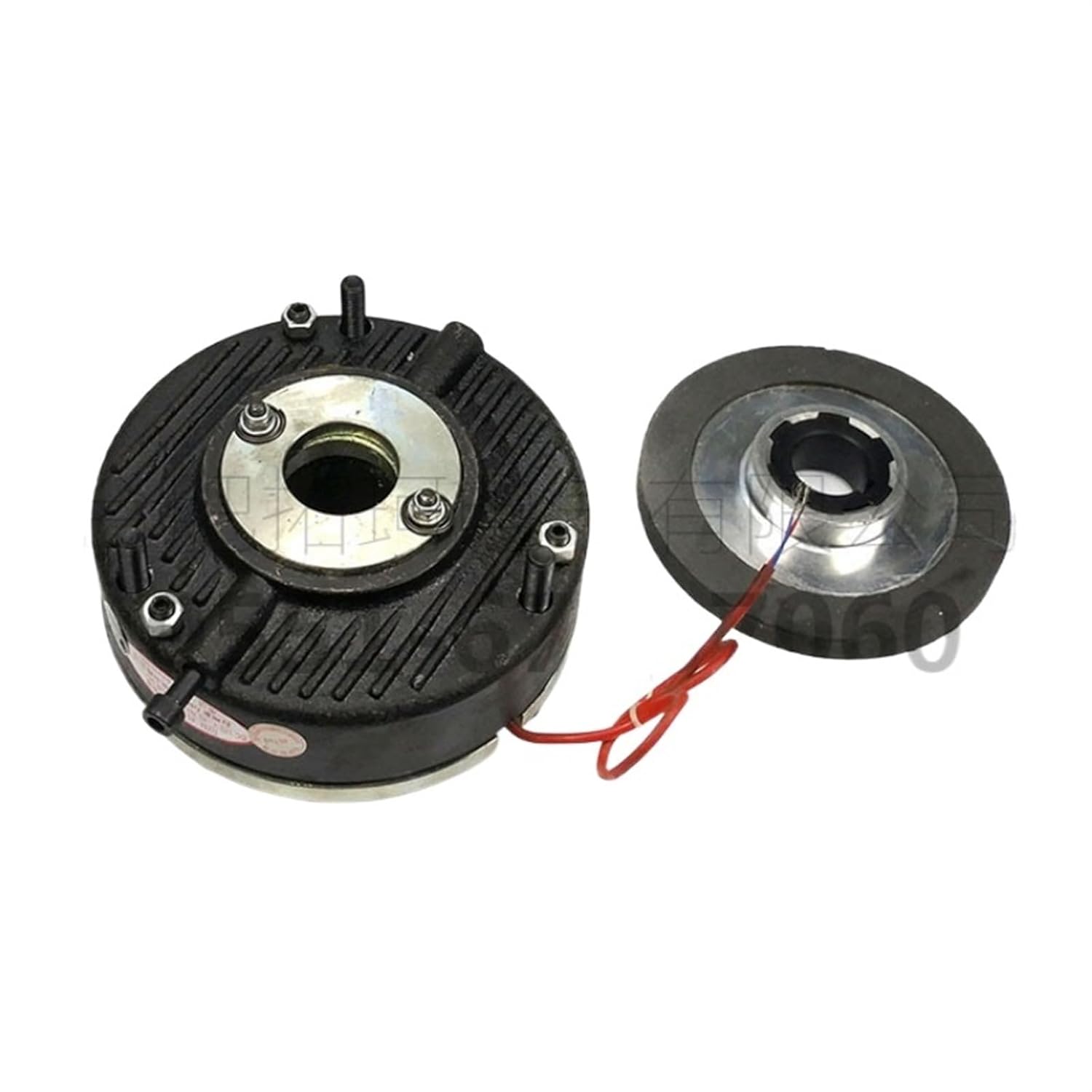

DZM45 DC170V 45Nm Electromagnetic Brake F-Class Insulation Taili YEJ112 Motor Brake

DZM-04/99VDC DZM-08/99VDC DZM-16/99VDC DZM-32/99VDC DZM-45/170VDC DZM-80/170VDC DZM-160/170VDC DZM-200/170VDC DZM Series 04/08/16/32/45/80/160/200 Electromagnetic BrakeTaizhou Teli explosion-proof motor brake brake power loss brake power off holding brake 99VDC/ 170VDC, suitable for YEJ71/ 80/90/ 100/112/ 132/160/ 180/200 motor. DZM45 DC170V 45Nm Electromagnetic Brake F-Class Insulation Taili YEJ112 Motor BrakeYEJ71 motor/DZM-04Click to purchaseYEJ80 motor/DZM-08Click to purchaseYEJ90 motor/DZM-16Click to purchaseYEJ100 motor/DZM-32Click to purchaseYEJ112 motor/DZM-45Click to purchaseYEJ132 motor/DZM-80Click to purchaseYEJ160 motor/DZM-160Click to purchaseYEJ180 motor/DZM-200Click to buyYEJ200 motor/DZM-300Click to buyYEJ225 motor/DZM-450Click to buyMatching brake disc/shaft sleeveClick to buyRectifier 99VDC/170VDC&1152AClick to buyThis series of electromagnetic power loss brakes are powered on electromagnetic suction and when power is cut off, the spring is pressurized to achieve friction braking. They are mainly matched with Y series motors to form YEJ series electromagnetic braking three-phase asynchronous motors. Suitable for metallurgical, construction, chemical, food, machine tools, packaging, stage, elevator, ship and other machinery, achieving rapid parking, accurate positioning, safe braking and other purposes.This series of brakes is composed of yoke body, excitation coil, spring, brake disc, armature, spline sleeve, manual release device, etc. Install on the rear cover of the motor (or on the flange of the equipment), adjust the installation screw to make the air gap to the specified value; The spline sleeve is fixed on the shaft, and the brake disc can slide axially on the spline sleeve, generating braking when braking.When the coil of the brake is energized, the coil generates a magnetic field, the armature is magnetically attracted to the yoke, the armature is disconnected from the brake disc, and the brake disc is carried by the motor shaft to rotate normally; When the coil is de-energized, the magnetic field disappears, and the armature is pushed to the brake disc by the force of the spring, generating frictional and braking.Pulling the "manual release device" or tightening the "screw release device" can also release the armature, which is convenient for the installation and adjustment of the equipment.Technical parameters:Installation dimension chart:Note: The specification code is DZM04~80, and the S holes (solid lines) are evenly distributed at X120°.Specification code DZM160~900, and six S holes (solid line and dotted line) are evenly distributed at X60°.Schematic diagram of installation and debugging:Clearance adjustment table:
