Horizontal Paste Filling Machine/Honey Filling Equipment/Chili Sauce Ketchup Filling Equipment,30~300ml(100~1000ml)

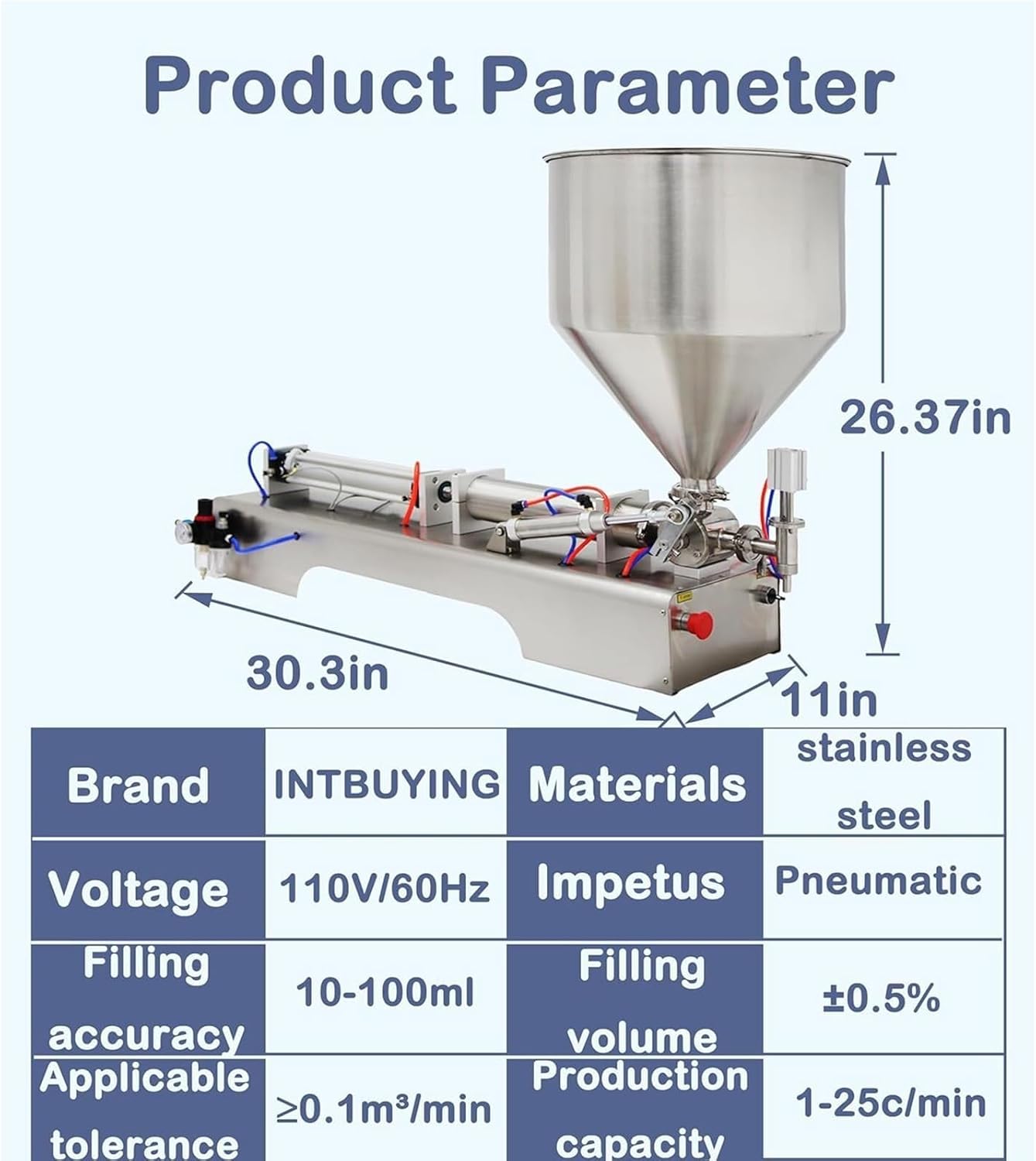

Scope of applicationVoltage: 110V/60HzMaterial: Stainless steel surfaceWorking principle: PneumaticFilling volume (ml): 10~100ml, 100~1000ml, 3~30ml, 30~300ml, 5~50ml, 50~500mlFilling accuracy (FS): ±0.5%Production capacity (cycle/minute): 1-25Applicable tolerance (m3/min): 0.1Applicable pressure (Mpa): 0.4-0.9Use power and gas sources that meet the requirements of this machine. Under continuous working conditions, the stability of the gas source must be maintainedBefore disassembling, cleaning or repairing the machine, be sure to turn off the gas source and power supplyThe electrical control components are installed in the rear half of the machine (near the control button) and the lower part of the frame. Do not rinse the machine body directly with water under any circumstances, otherwise there is a risk of electric shock and damage to the electrical control components.After turning off the power switch, the machine electrical control circuit still has voltage. When repairing the control circuit, be sure to unplug the power cord.Before filling the material, it is best to clean the machine with a detergent and then rinse it with clean water to prevent oil or foreign matter from mixing into the material, causing material waste and machine damage.

• [Stainless steel material] The filling machine is made of stainless steel, and the parts in contact with the filler are made of 304 stainless steel. The sealing parts are made of PTFE and silica gel. They have the advantages of high temperature resistance and good sealing
• [Adjustable filling parameters]And the machine should connect air compressor for working,the air compressor exhaust should not be less than 0.1m3/min, equipped with pressure should be able to adjust to 0.4-0.9Mpa range. First time when you use the machine , you should weigh the weight of output by adjusting and make sure the volume you want
• [Point/automatic control]The single-nozzle filling machine is controlled by pneumatic valve, equipped with a self-pipette, which can adjust the filling amount and filling speed. The hopper, drip nozzles and three-way valves are connected by clamps for easy removal and cleaning. The machine has foot switch filling and continuous automatic filling two ways, these two filling methods can be arbitrarily switched
• [Emergency stop switch] There is a red emergency stop button near the discharge port. In case of abnormal emergency, press the button quickly and the machine will stop running immediately
• [Extensive use]Filling machines are widely used in the filling of materials with poor fluidity. It can help you fill quantitative liquids or paste liquids such as shampoo, cream, ice cream, toothpaste, etc
