GM5208-12 GM5208-24 Brushless Motor 12.6mm Shaft UAV Pod(GM5208-12)

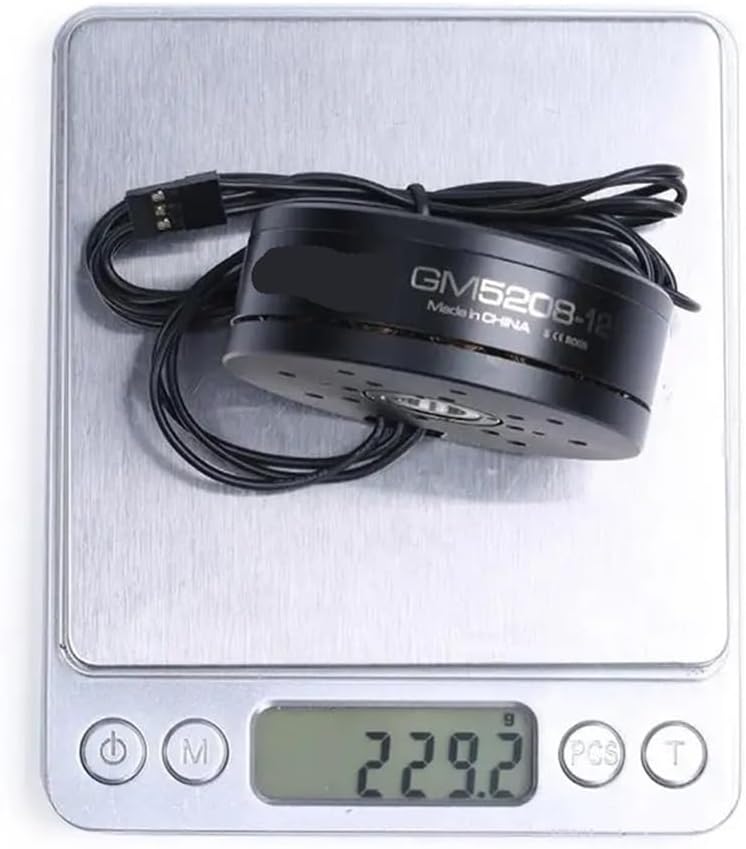

Model GM5208Motor Out Diameter: 63±0.05mmMotor Height: 22.7±0.2mm Hollow Shaft(OD): 15-0.008/-0.012 mmHollow Shaft(ID): 12+0.05/0 mmWire Length: 610±3mmCable AWG: #24Motor Weight: 195±0.5gWire : 2.5mm connectorNo-load current: 20VNo-load volts: 0.09±0.1 ANo-load Rpm: 456~504 RPMLoad current: 20VLoad volts: 1ALoad torque(g): 1800-2500Motor internal resistance: 15.2±5%(Resistance varies with temperature) voltage test: DC500V 10mA @1secRotor housing runout: 0.1mmModel: GM5208-24Motor Out Diameter: 59.5±0.05mmMotor Height: 31.2±0.2mmHollow Shaft(OD): 15-0.008/-0.012 mmHollow Shaft(ID): 12.6+0.05/0 mmWire Length: 610±3mmCable AWG: #24Motor Weight: 204±0.5gWire : 2.5mm connectorNo-load current: 20VNo-load volts: 0.09±0.1 ANo-load Rpm: 396~436 RPMLoad current: 20VLoad volts: 1ALoad torque(g): 1800-2500Motor internal resistance: 13.7±5%(Resistance varies with temperature) voltage test: DC500V 10mA @1secRotor housing runout: 0.1mmPackage included:GM5208 motor x 1pc

• Dynamic Power Range: Offers multiple KV options to support diverse flight styles from racing to long-range cruising.
• Responsive Thrust Delivery: Delivers strong and immediate power for agile maneuvers and stable flight control.
• Lightweight Efficiency: Designed to minimize weight while maintaining durability, enhancing aircraft performance and flight time.
• Universal Mounting: Standard bolt pattern allows for easy installation on various large-scale FPV and X-Class frames.
