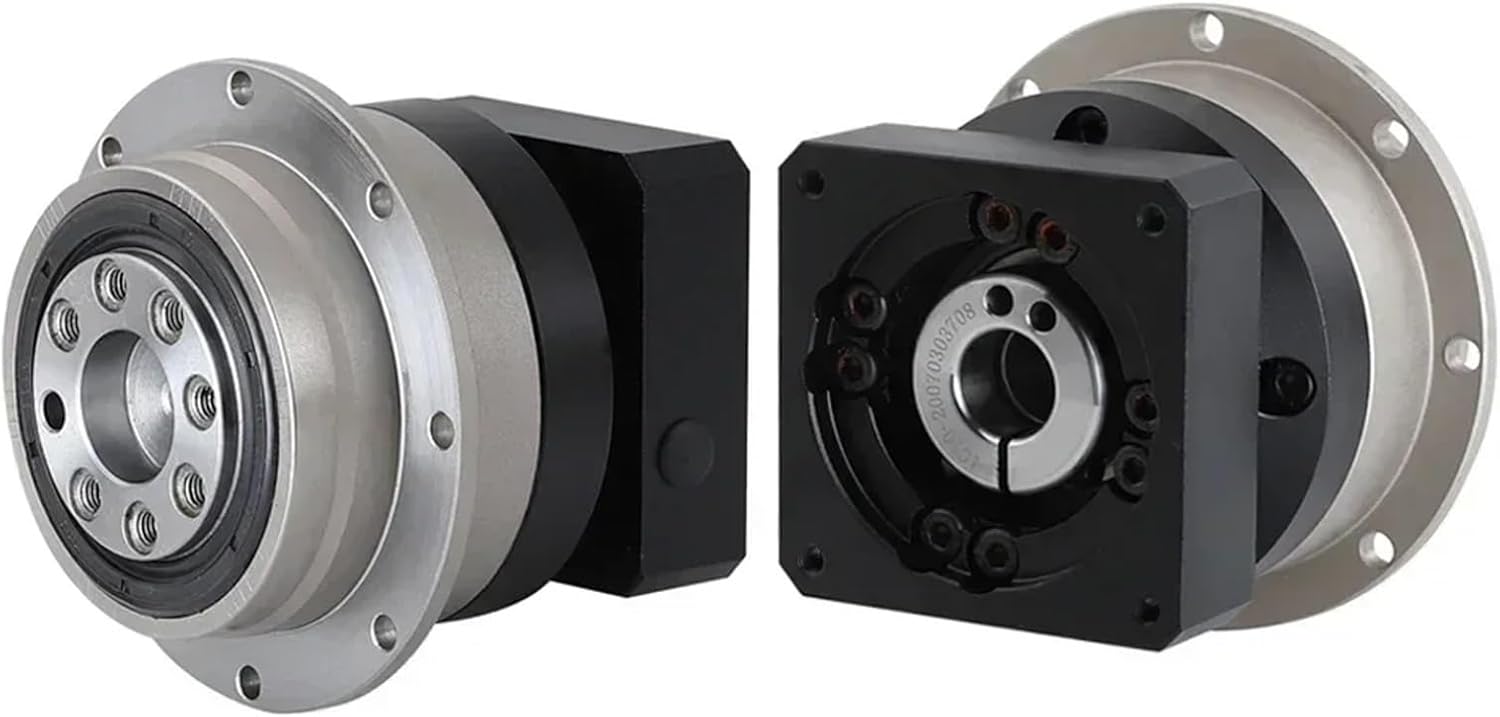

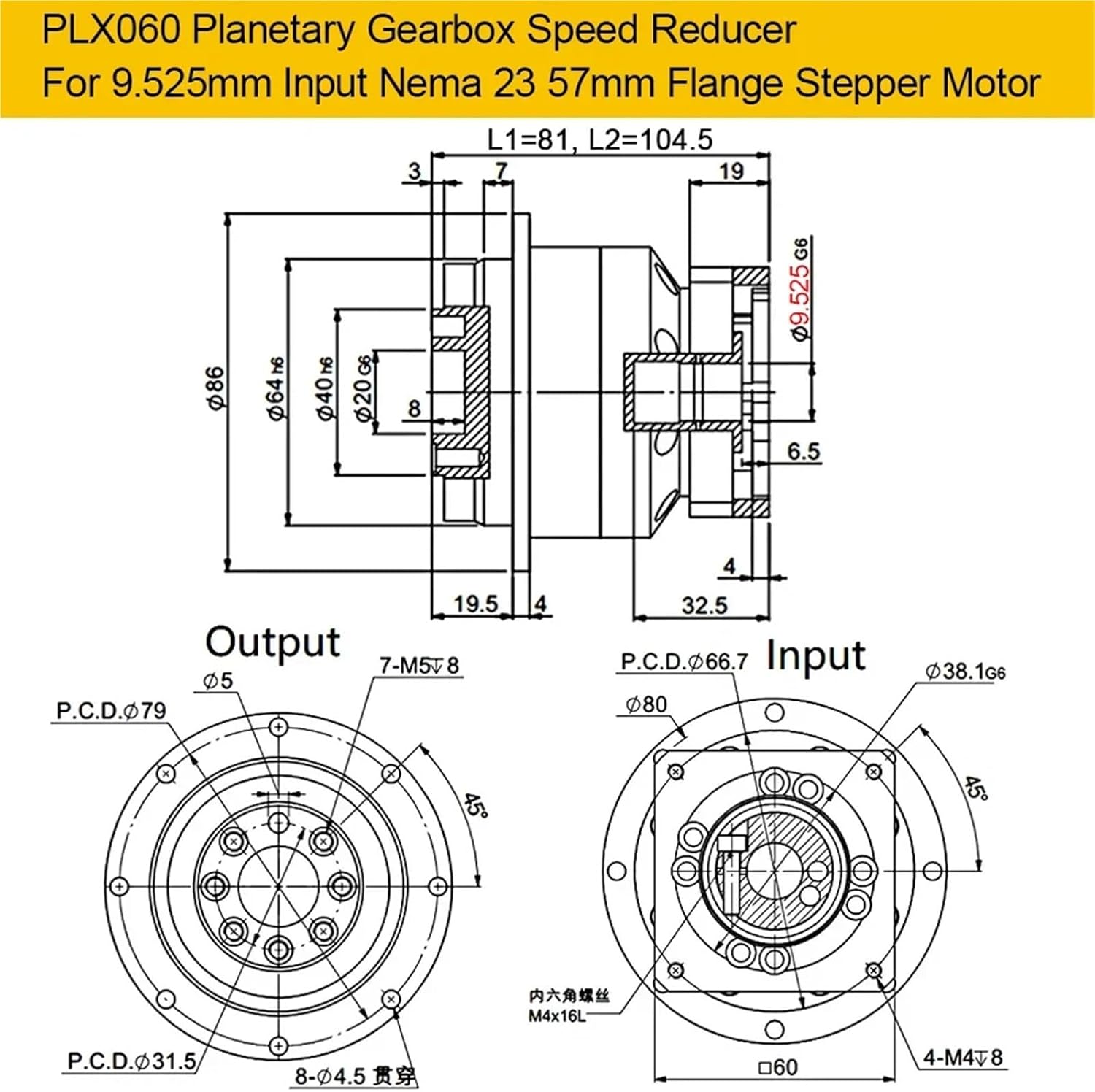

1pcs Planetary Gearbox High Precision Helical Gear Flange Output Reducer for Nema 23 34 42 52 Stepper 60 80 90 110 130mm Servo Motor(PLX060 9.525mm Input,Speed Ratio 50 to 1)
4.4 (111 items)
Limited Time Sale$1,159.64 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211319196 | Release Date | 2026/04/04 | List Price | $773.09 | Model Number | 211319196 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

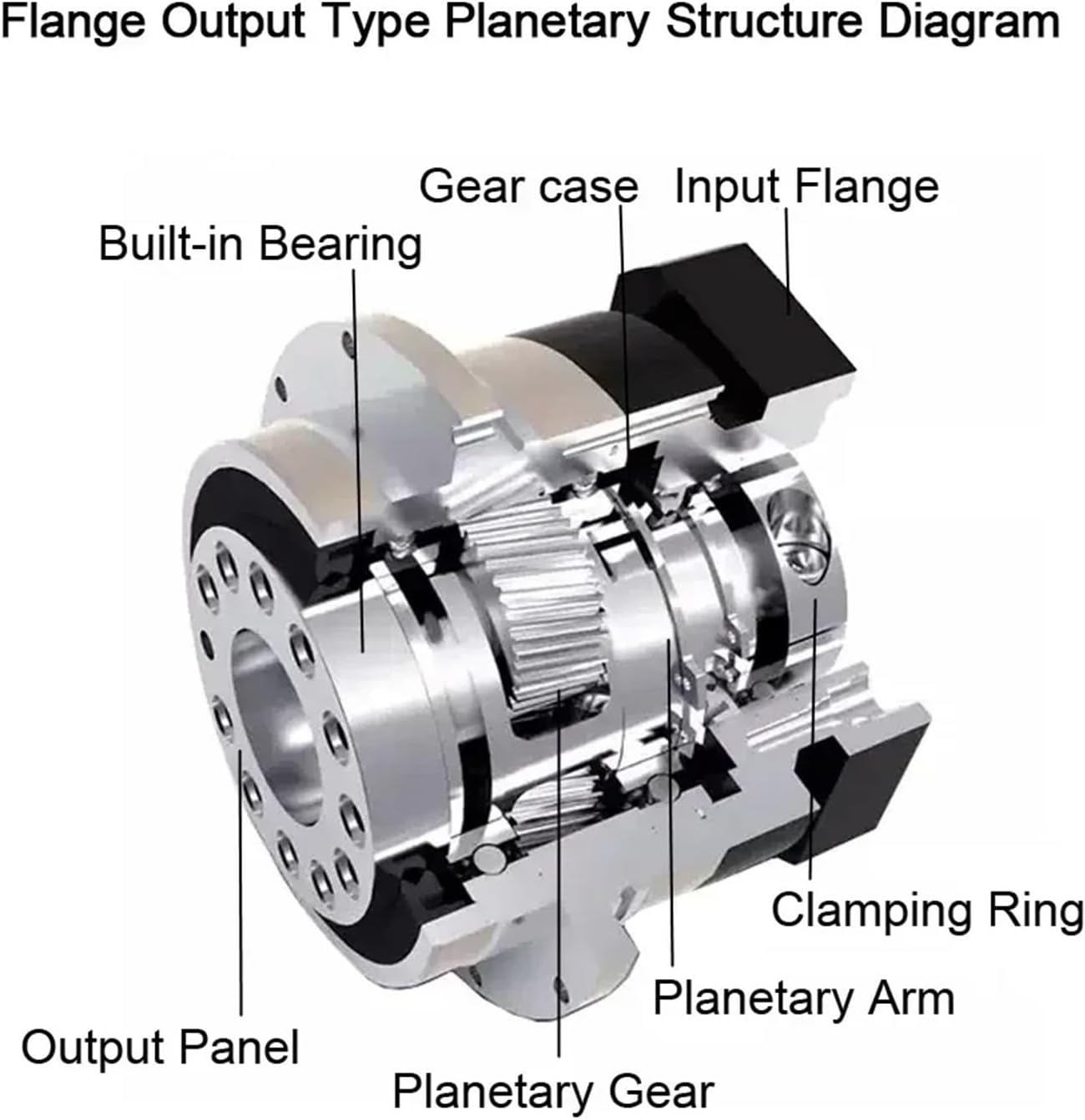

Gearboxes, Gearheads & Speed Reducers1Pcs* Flange Output Type Planetary Gearbox (Helical Gear Transmission) Noted: 1) PLX120 For 2 Phase 110mm Flange Nema 42 Stepper Motor.2) PLX120 For 3 Phase 110mm Flange Nema 42 Stepper Motor. 3) PLX120 For 3 Phase 130mm Flange Nema 52 Stepper Motor. (Noted:If planetary gearbox needs to be , please free to contact us first.) Speed Ratio: 1 Stage (L1): 4:1;5:1 ; 7:1 ; 10:1 2 Stage (L2): 15:1 ; 20:1 ; 25:1 ; 30:1 ; 35:1 ; 40:1 ; 50:1 ; 70:1 ; 100:1 Maximum Tq: 1.5* Rated TqEmergency braking Tq: 2.5* Rated torqueBacklash Precision: L1 5 Arcmin , L2 5 Arcmin Product parameterPLX060PLX090 PLX120(L1) Stage 1 Speed Ratio4:1/ 5:1/ 7:1/ 10:1 (L2) Stage 2 Speed Ratio20:1/ 25:1/ 35:1/ 40:1/ 50:1/ 70:1/ 100:1 Gear TypeHelical GearMax TqNm2 Times Rated TqInstant Braking TqNm3 Times Rated TqInput Sizemm6.35/ 8/ 11/ 1412.7/14/16/1919/22/24Output Sizemm2031.540Max Radial TqN 68017503100Max Axis TqN 3408751250Torsional StiffnessNm/arcmin133182Max Input Speedrpm6000Rated Input Speedrpm330026002300NoisedB586065BacklasharcminL13 L25Working Lifeh 20000Full Load EfficiencyL195% L290%IP DegreeIP65CertificationOperation Temperature-10~+90Rated Tq(N.m)L1Ratio 440120220Ratio 540125260Ratio 740125260Ratio 102580160L2Ratio 2050120300Ratio 2550125350Ratio 3550125350Ratio 4050125350Ratio 5050125350Ratio 7050125350Ratio 1003580220Moment of Inertia(Kg.cm2;)L1Ratio 40.130.512.87Ratio 50.130.472.71Ratio 70.130.452.62Ratio 100.030.442.57L2Ratio 200.030.232.77Ratio 250.030.232.77Ratio 350.030.232.77Ratio 400.030.232.49Ratio 500.030.22.49Ratio 700.030.22.49Ratio 1000.030.22.49
- Gearboxes, Gearheads & Speed Reducers
- 1pcs Planetary Gearbox High Precision Helical Gear Flange Output Reducer for Nema 23 34 42 52 Stepper 60 80 90 110 130mm Servo Motor
| Model | AkzPphqk |
|---|---|
| Brand Name | AkzPphqk |
| Model Name | AkzPphqk |
| Manufacturer | AkzPphqk |
