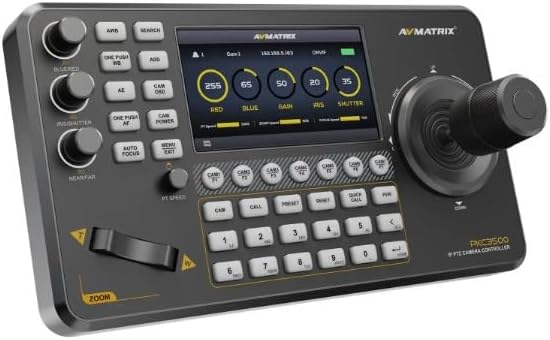

AVMATRIX PKC3500 PTZ Controller with 5" Screen & 4D Joystick, PoE+, ONVIF/VISCA/Pelco, Controls up to 255 Cameras, IP/RS232/RS485 Control, NDI Preview (NDI Model) (PKC3500-NDI)

The AVMATRIX PKC3500 is a professional PTZ camera controller designed for modern IP and serial PTZ systems. It provides intuitive switching and full camera control for pan/tilt/zoom, focus, exposure, and white balance with a responsive 4D joystick and dedicated control knobs. A built-in 5" display allows real-time monitoring (via ONVIF, and NDI on the optional NDI model), while powerful camera management features support up to 255 PTZ cameras and 255 presets—ideal for live production, worship, education, telemedicine, and corporate AV installations. With PoE+ support for clean installation, track recording/playback for repeatable moves, and Tally GPIO integration for video switchers, the PKC3500 is a reliable control center for professional PTZ workflows. PKC3500 User manual Display: 5-inch screen Interfaces: RJ45 (IP), RS-232, RS-422/RS-485, Tally GPIO, USB-C (upgrade) Control Protocols: ONVIF, VISCA-IP, VISCA-S, Pelco-D/P; NDI optional model supports NDI|HX/HX2 PKC3500 User manual Cameras / Presets: Up to 255 cameras / 255 presets Power: PoE+ or DC 7–24V; power <8W Operating Temp: -20°C to 60°C What’s in the Box PKC3500 PTZ Camera Controller 12V Power Adapter PKC3500 User manual

• 5" HD Screen with Real-Time Camera Preview Built-in 5-inch display supports preview via ONVIF and optional NDI for monitoring the current camera picture in real time, improving on-site control and accuracy.
• Controls Up to 255 PTZ Cameras + 255 Presets Manage large systems with support for up to 255 cameras and 255 preset positions—perfect for multi-room AV, churches, campuses, studios, and broadcast facilities.
• Multi-Protocol, Multi-Interface Compatibility Supports IP + RS-232 + RS-422/RS-485 control interfaces and major PTZ protocols including ONVIF, VISCA-IP, VISCA (S), Pelco-D, Pelco-P, plus NDI|HX/HX2 (optional model).
• Professional 4D Joystick + Fast Camera Parameter Control Smooth PTZ operation with the 4D joystick (pan/tilt/zoom), plus dedicated knobs to adjust iris, shutter, gain, white balance, and focus—built for fast live production workflows.
• Track Recording & Playback + Macro-Style Operation Record PTZ movement tracks and replay them for repeatable shots (interviews, sermons, lectures, sports). Supports loop playback and quick call presets for speed.
• PoE+ Power + Tally GPIO Integration Supports PoE/PoE+ (IEEE 802.3af/at) or DC power, and includes Tally GPIO for switcher integration to synchronize camera selection and tally indication.
