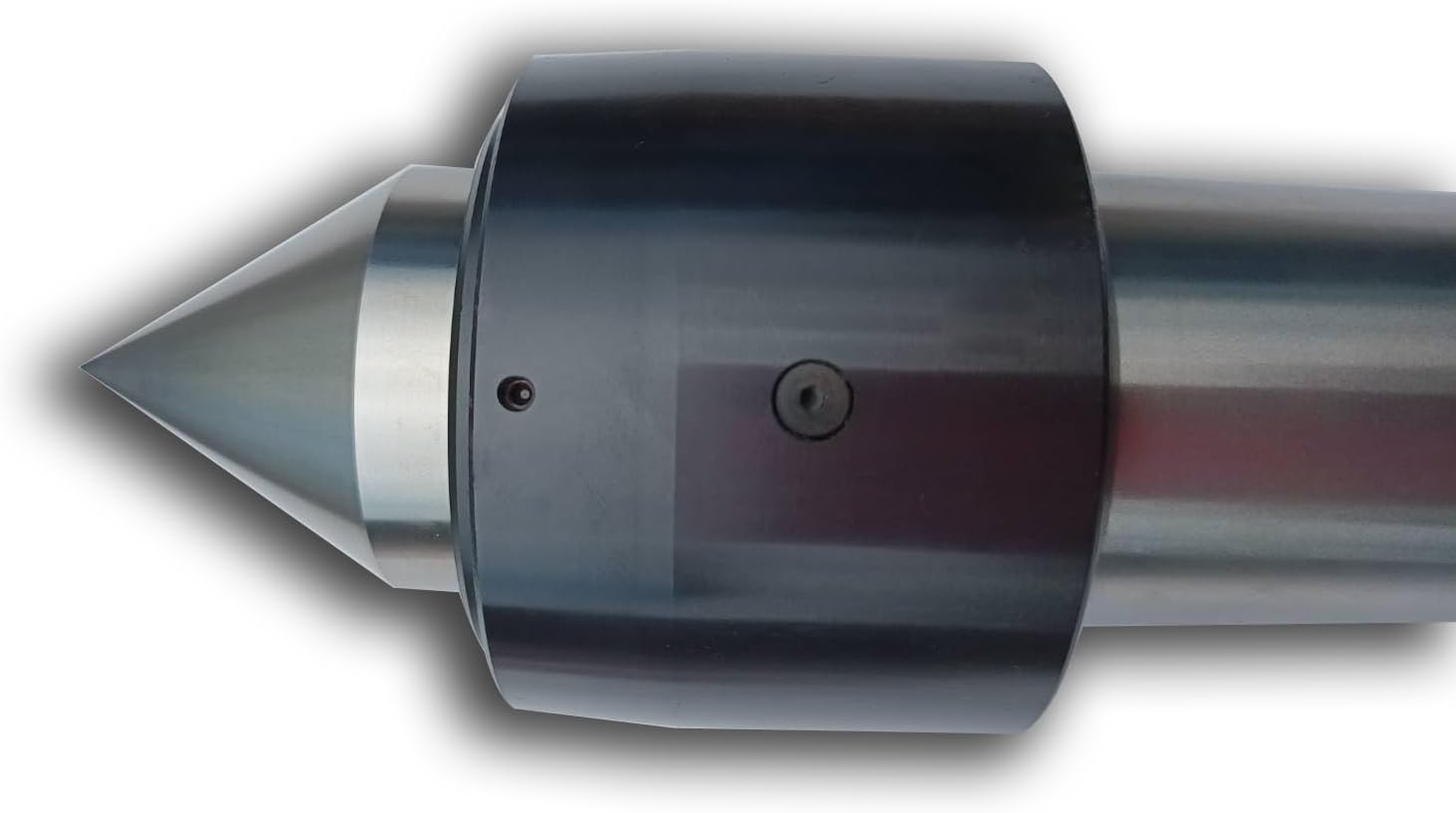

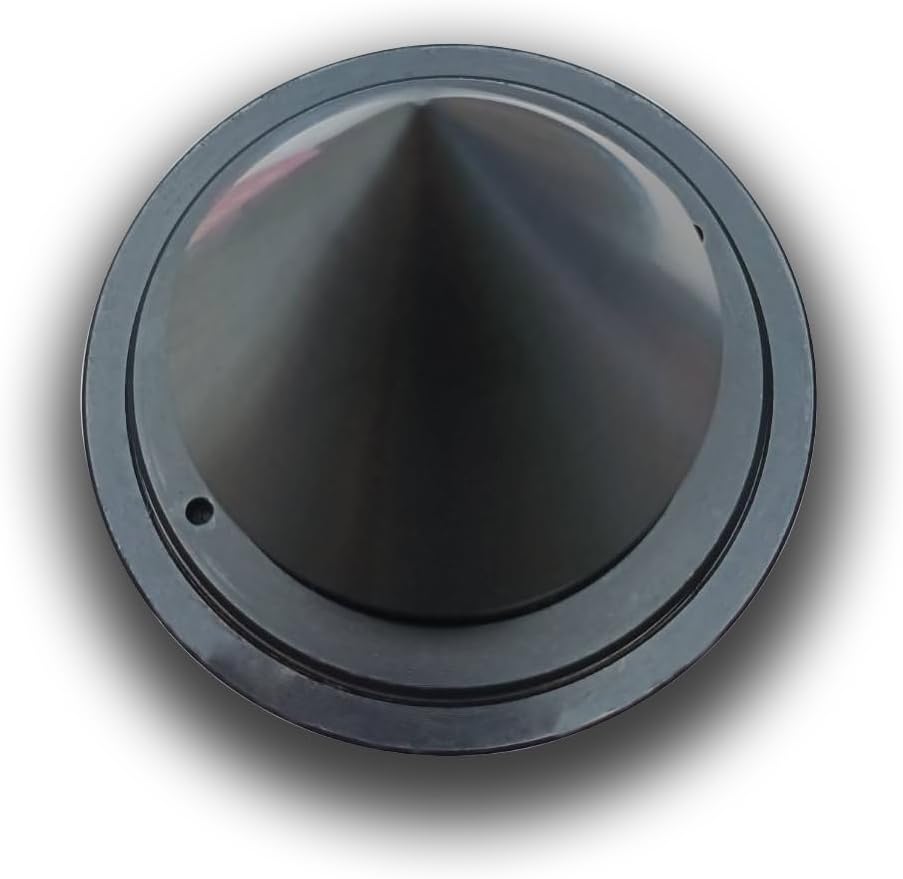

Heavy Duty Morse Taper 6 MT6 Live center A type for NC Lathes
4.9 (73 items)
Limited Time Sale$307.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211336286 | Release Date | 2026/04/04 | List Price | $204.80 | Model Number | 211336286 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Center shaft is made of SUJ2(JIS) and hardened through vacuum heat treatment to provide higher HRC ±60° Morse Tape「 compIies with DIN806 standard. Center is fitted with dual ball bearing,thrust bearing and needle roller bearing assembly. Bearing is from Japan BAND Weight of working piece in load/kgs MAX / 8796 lbs (3990 kg).
- MT6 Morse Taper, manufactured according to the 'ISO 15433' standard.
- Material: The point section is made of SKD11 (JIS), vacuum heat-treated to a hardness of HRC 60°. The body is made of SCM440, hardened by salt bath quenching.
- It includes bearings made by a Japanese manufacturer.
- It offers a precision of 0.0005 and supports a maximum workpiece weight of 8796 lbs (3990 kg).
- For enhanced durability, we use Klüber lubricant (manufactured in Germany) which provides superior heat dissipation.
| Style | (Standard A-type) |
|---|---|
| Item Weight | 19.8 pounds |
| Part Number | KG-NT6-HCenter_A |
| Manufacturer | K-GUALDA MACHINE CO., LTD. |
| Power Source | NO |
| Batteries Required | No |
| Product Dimensions | 16.92 x 7.48 x 6.29 inches |
| Included Components | Rotating center body |
| Item Package Quantity | 1 |
Live Centers
