5PC 1/4 "NPT x 25/35mm 304 Stainless Steel Cooling Albow Straight Nozzle, Suitable For Cooling Water Spray, Jet, Oil Spray, Etc. Of Various Machine Tools (HTSSP-W-1/8-25/35)

DCYCBTH 5PC 1/4 "NPT x 25mm/35mm bent pipe type direct spray stainless steel 304 coolant air nozzles, suitable for lathes, milling machines, CNC machine tools, etc. High pressure heavy-duty coolant nozzle: The nozzle is made of 304 stainless steel, which can withstand stronger water pressure and provide stable precision cooling. More flexible: adjustable for horizontal 360 degree rotation, adjustable for vertical ± 34 degree movement, with a bending angle of 30 degrees, most suitable for lathes, milling machines, CNC machines, stone bending machines, and jewelry carving machines that require water or oil cooling. Multiple sizes are available: threaded joint types (PT/NPT), threaded joint sizes (1/8, 1/4, 3/8, 1/2), and pipe lengths (25/35 mm) to meet a wider range of machine needs. You can choose precise nozzle sizes for your machine. Package includes: 5 coolant nozzles. standard: Thread 1/4 "NPT, Tube length 25mm/35mm, Inner diameter -4mm, Outer diameter -6mm, Vertical movement -34 degrees, Horizontal rotation: -360 degrees. If you need other sizes and styles of stainless steel coolant nozzles, please feel free to contact us at any time!

• 1. High pressure cutting fluid inclined cooling nozzle: The nozzle is made of 304 stainless steel, which can withstand stronger water pressure, precise and stable positioning, and will not rebound. Adequate cooling of the tool can extend its service life.
• 2. The curved nozzle is more flexible: it can rotate horizontally 360 degrees and move vertically ± 34 degrees. Even at the maximum cutting angle, the flow rate will not decrease, making it suitable for cleaning lathes, milling machines, CNC machines, stone bending machines, jewelry carving machines, and workpieces that require water cooling or air blowing.
• 3. There are multiple sizes to choose from: NPT thread, threaded joint sizes (1/8 ", 1/4", 3/8 ", 1/2"), and extension pipe lengths of 25MM and 35MM each. The bending angle is 30 degrees. The thread of the extension tube is M6 * 1.0. If you need extension tubes of other lengths, please choose from our store.
• 4. Specification: 1/4 "NPT thread, pipe lengths of -25mm and 35mm, inner diameter of -4mm, outer diameter of -6mm, bending angle of 30 degrees, vertical movement of -34 degrees, horizontal rotation of -360 degrees. Please note that this set is NPT thread. Please ensure that your equipment is suitable for this specification. If you need PT thread or other threads, please choose the thread product you need in our store.

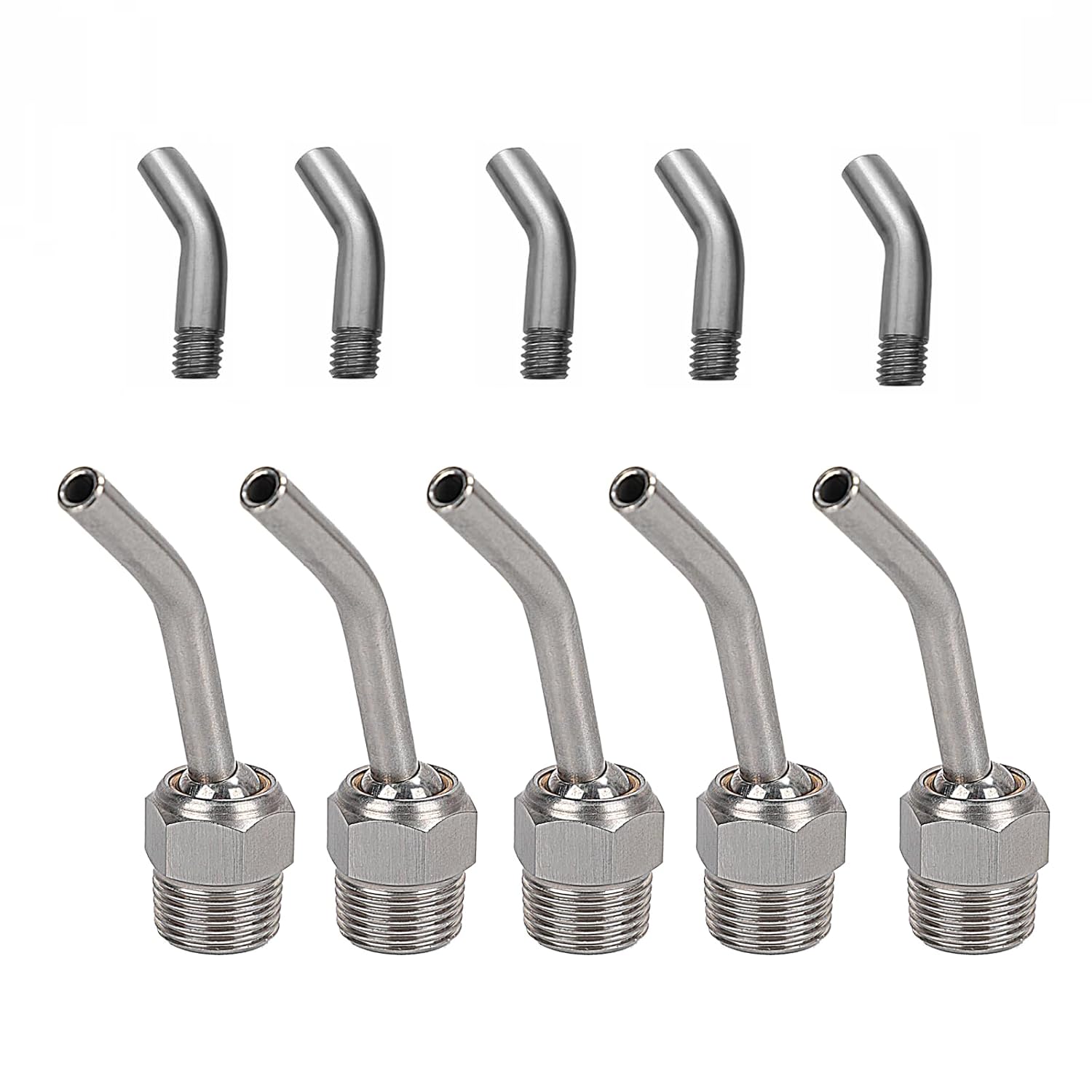

• Package Includes: coolant nozzle x 5 pcs.； extension tubes x 5 pcs
