Eccentric tensioners GN 927, also known as eccentric lever or quick release, are used for quick clamping and release. Unlike clamping via a thread, they allow torque-free tensioning. The lever is designed so that the clamping movement of the lever over the max. clamping force is not possible. There are no loose parts, but all elements are connected to each other. With eccentric tensioners GN 927, clamping forces of up to 8 kN are achieved.

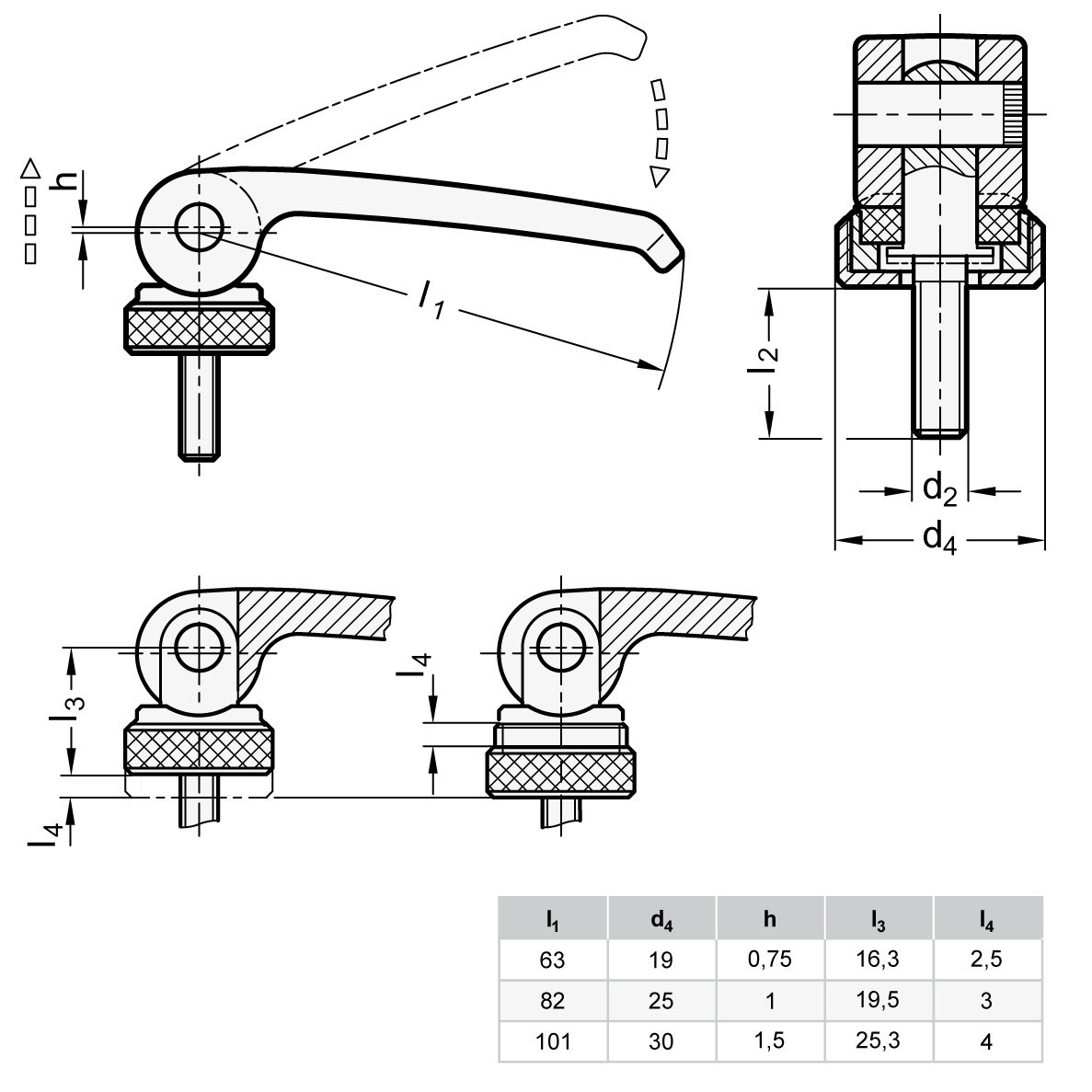

- Handle length l1: 101 mm; thread d2: M10; thread length in clamping position l2: 60 mm; stroke h: 1.5 mm; adjustment distance l4: 4, 8 mm
- Form A: plastic washer with adjusting nut; support disc: thermoplastic (polyacetal) fibreglass-reinforced
- Lever: die-cast zinc; plastic-coated, abrasion-resistant epoxy resin; black, RAL 9005
- Axle, pull nut, adjusting nut: galvanised steel, blue passivated
| Item Weight | 8.8 ounces |
|---|---|
| Manufacturer | Ganter Normelemente |
| Item model number | GN 927-101-M10-60-A-B |
| Product Dimensions | 4.49 x 4.33 x 1.18 inches |
