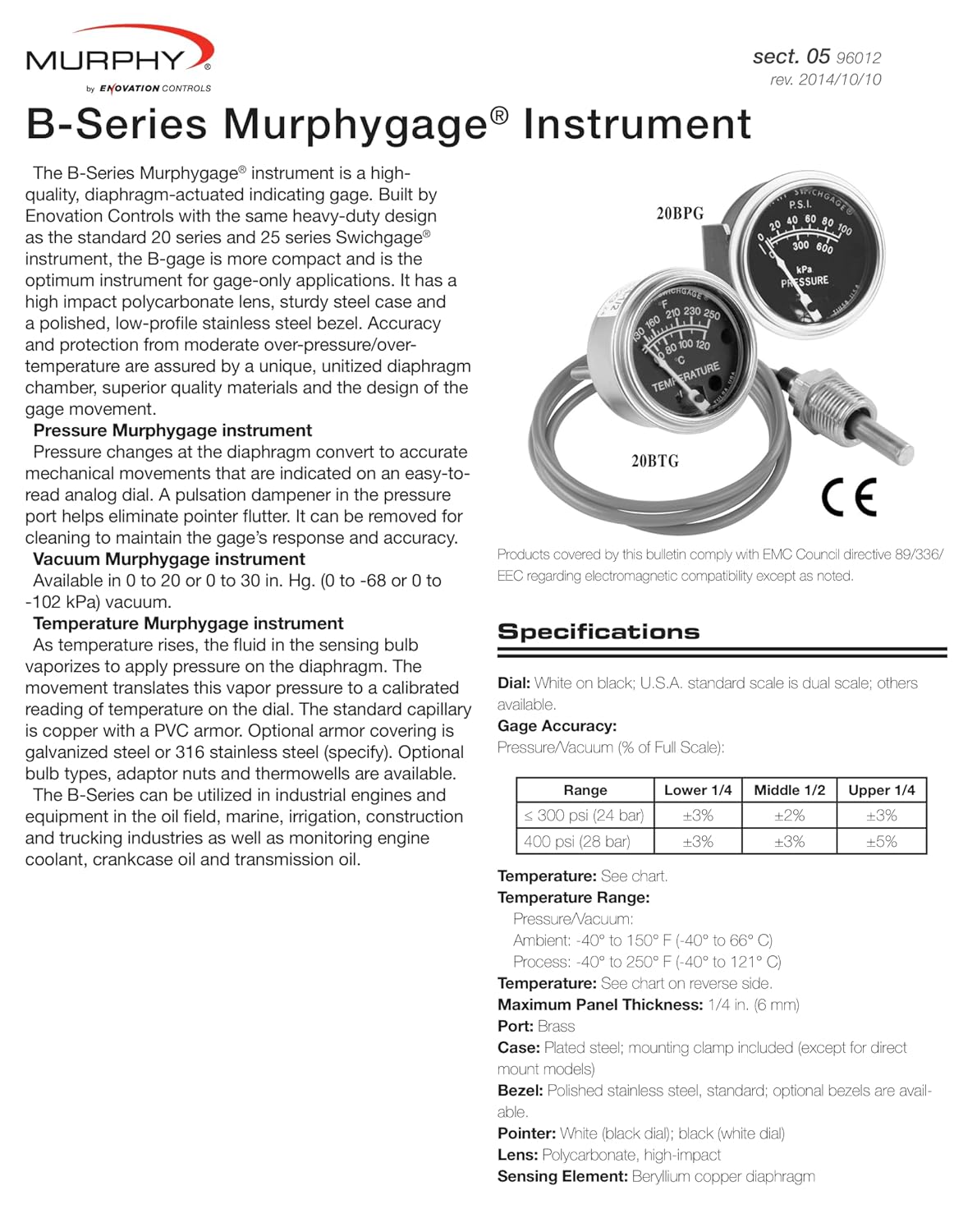

Murphy by Enovation Controls 20BPG-400 B-Series Pressure Murphygage (05702501)

The 20BPG-400 B-Series Pressure Murphygage is a high quality, diaphragm-actuated indicating gage, with a pressure range of 0-400 psi. Built with the same heavy-duty design as the standard 20-Series Swichgage instrument, the B-gage is more compact and is the optimum instrument for gage-only applications. The 20BPG-400 has a high-impact polycarbonate lens, a sturdy environmentally sealed steel case, and a polished, low-profile stainless steel bezel. Accuracy and protection from moderate over-pressure are assured by a unique, unitized diaphragm chamber, superior quality materials, and the design of the gage movement. Pressure changes at the beryllium copper diaphragm convert to accurate mechanical movements that are indicated on a 2", easy to read, dual-scale analog dial. A pulsation dampener in the pressure port helps eliminate pointer flutter; it can be removed for cleaning to maintain the Murphygage response and accuracy.

• The 20BPG-400 B-Series Pressure Murphygage features an environmentally sealed case and is designed for "gage-only" applications. Dual scale; 0-400 psi.
