Three-Phase AC Power Monitor PZEM-6L24 RS485 Communication 380V 100A Energy Meter Module With Voltage Current Frequency Measurement For Industrial Control Systems(Host + opening)

Features:Solve industrial-grade energy problems with a compact moduleTired of complex energy monitoring solutions? The PZEM-6L24 features a rugged, headless design and offers laboratory-grade accuracy (1% on all parameters!), making it for ideal for seamless integration into automation panels, electricity meters, and IoT systems. Engineers Trust the PZEM-6L24:Comprehensive Measurements:* Voltage: 50–566 V (LN/LL)* Current: 0–100 A (via for CTs)* Power: Active/Reactive/Apparent (per phase + total)* Energy: kWh/kVARh/kVAh (per phase + total)* Power Factor, Frequency (45–65 Hz), Phase AngleIndustrial Plug-and-Play Connectivity:* Dual Interfaces: for TTL UART (3.3 V) + Robust for RS485* for Modbus-RTU Protocol: Read All Parameters (0x03/0x04) + Configuration Settings (0x10) + Reset Power (0x42)* Baud Rate: 2400 to 115200 bps (8N1)Deployment Flexibility:* Addressing: Configurable via dial-up hardware (1-32) or software (1-247) for Modbus IDWiring support: three-phase 3-wire or 4-wire (pre-configured)Pulse output (for CF): 1000 imp/kWh (10 for ms open drain)Reliability design:Ultra-low power consumption: <0.5 W operationIndustrial temperature range: -20°C to +60°CSecurity calibration: Password protection (function 0x41)Specifications:Part name: three-phase AC voltage and current meterMaterial: absColor: whitesize: 116x76x27.8mmModel: PZEM-6L24Voltage: 3*110/380VCurrent: 3*10(100)AFrequency: 50/60HZCommunication: for RS485/UARTPackage contents:1*three-phase AC voltage and current meter1*transformer

• High-Accuracy Energy Monitoring: The PZEM-6L24 three-phase AC energy meter module delivers laboratory-grade 1% measurement accuracy for voltage, current, power, and energy, making it perfect for precise RS485 power monitor applications in industrial systems.
• Comprehensive Parameter Measurement: Tracks voltage (50–566 V LN/LL), current (0–100 A with-CTs), active/reactive/apparent power, kWh/kVARh/kVAh, power factor, frequency (45–65 Hz), and phase angle for complete electrical diagnostics.
• Flexible Communication & Integration: Features dual interfaces for TTL UART (3.3 V) and robust RS485, supporting Modbus-RTU protocol with adjustable baud rate (2400–115200 bps) for seamless integration into automation, IoT, and monitoring setups.
• Industrial-Grade Build & Versatility: Supports three-phase 3-wire or 4-wire systems, configurable Modbus-IDs, pulse output (1000 imp/kWh), ultra-low power draw, and operates within -20 °C to +60 °C for long lasting performance in demanding environments.

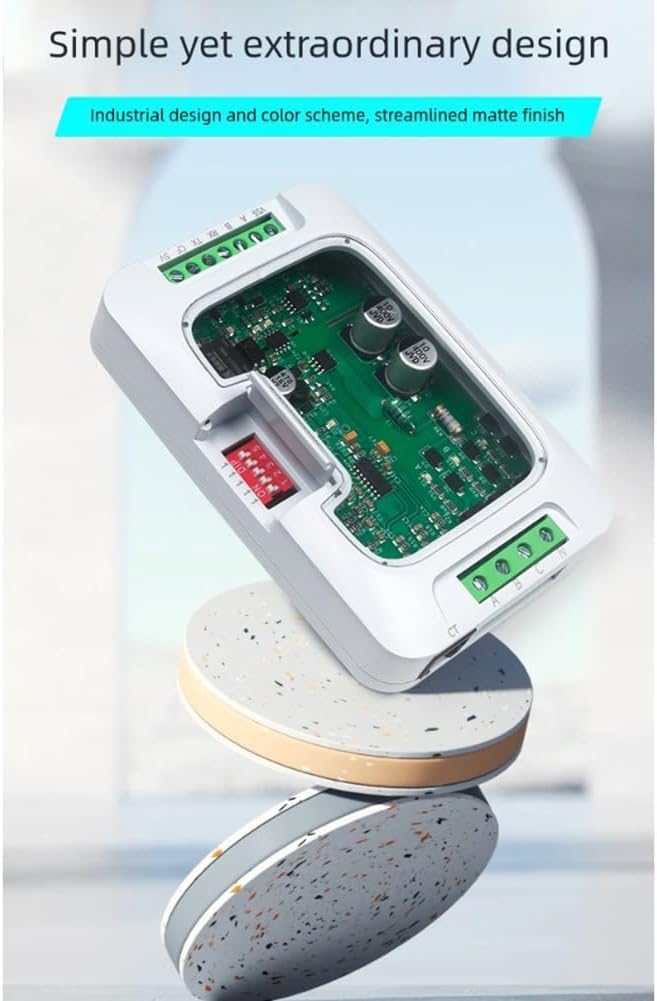

• Security & Deployment Ease: Password-protected calibration forestall‌s unauthorized changes, with hardware/software addressing options and compact 116×76×27.8 mm ABS housing for quick installation in control panels or field equipment.
