BSIDE 1mA Clamp Meter, DC/AC Current with Smart Mode, True RMS 6000 Counts Rechargeable Auto-Ranging Clamp Multimeter, Temperature Capacitance Diode Duty Cycle Hz Ohm Live Check V-Alert Voltage Tester

Features: Measure AC/DC current (minimum 1mA by jaws) Measure AC/DC voltage, frequency, resistance and continuity Measure temperature, capacitance, diode and duty cycle V-alert measurement, live-wire check Auto range, Auto power off, data hold, low battery indication. Specifications: Display: 6000 counts DC current: 0.001-5.999A 0.001A ±(3.0%+5); 6-59.99A 0.01A ±(3.0%+6); 60-100.0A 0.1A ±(3.0%+8); AC current: 0.001-5.999A 0.001A ±(3.0%+5); 6-59.99A 0.01A ±(3.0%+6); 60-100.0A 0.1A ±(3.0%+8); DC voltage: 0.001-5.999V 0.001V ±(0.8%+3); 6-59.99V 0.01V ±(0.8%+3); 60-599.9A 0.1V ±(1.0%+5); 600-610V 1V ±(1%+5) AC voltage: 0.05-5.999V 0.001V ±(1%+3); 6-59.99V 0.01V ±(1%+3); 60-599.9A 0.1V ±(1.2%+5); 600-610V 1V ±(1.2%+5) Resistance: 0.1-599.9Ω 0.1Ω ±(1.2%+3); 0.6K-5.999KΩ 0.001KΩ ±(1.2%+3); 6K-59.99KΩ 0.01KΩ ±(1.2%+3); 60K-599.9KΩ 0.1KΩ ±(1.2%+3); 0.6M-5.999MΩ 0.001MΩ ±(2%+10); 6M-60MΩ 0.01MΩ ±(2%+10) Capacitance: 0.01µF-5.999µF 0.001µF ±(3.5%+8); 6µF-59.99µF 0.01µF ±(3.5%+8); 60µF-599.9µF 0.1µF ±(3.5%+8); 0.6mF-5.999mF 0.001mF ±(4.5%+10); 6mF-60mF 0.01mF ±(4.5%+10) Frequency:(900mVrms-20Vrms) 1-9.999Hz 0.001Hz ±(2%+10); 10-99.99Hz 0.01Hz ±(2%+10); 100-999.9Hz 0.1Hz ±(2%+10); 1K-9.9KHz 0.001KHz ±(2.5%+12); 10K-99.99KHz 0.01KHz ±(2.5%+12); 100K-999.9KHz 0.1KHz ±(2.5%+12); 1M-9.999MHz 0.001MHz ±(3%+15); Duty Cycle: 10.0%-95.0% 0.1% ±3.0% Buzzer: If the resistance is less than 50Ω, the continuity beeper sounds Temperature: -50℃-0℃ 1℃ ±(2.0%+3); 0℃-50℃ 1℃ ±(1.5%+2); 50℃-1000℃ 1℃ ±(2.0%+3); Diode: Measure diodes within 3V V-Alert: Yes Live Wire Check: Yes Jaw Capacity: 12.7mm Power: 3.7V 400mA (built-in, rechargeable) Size: 192*46.5*30.5mm Weight: 102g Package Includes: 1 x Digital Clamp Meter 1 x Test Leads 1 x Thermocouple 1 x Charging Cable 1 x Carrying Case 1 x User Manual Tips when Test DC Current with Jaw: The readings will be influenced by earth's magnetic field because the clamp meter is use the Hall effect sensor to detect dc currents. We suggest you measure dc current as the follow suggestions. 1) Zero out the readings before each measurement. 2)Once you zero out the meter, hold the meter in the same orientation when taking readings. Don't tilt it, twist it, or rotate it. Otherwise, changing the orientation of the meter can give false readings due to different magnetic field strengths of the earth when the meter is oriented differently after it's been zeroed. 3) Measures the dc current within 3 seconds, and you will get a accurate results.

• [1mA Sensitivity]: The resolution of this clamp meter is 1 mA when measuring AC and DC current with the clamp.

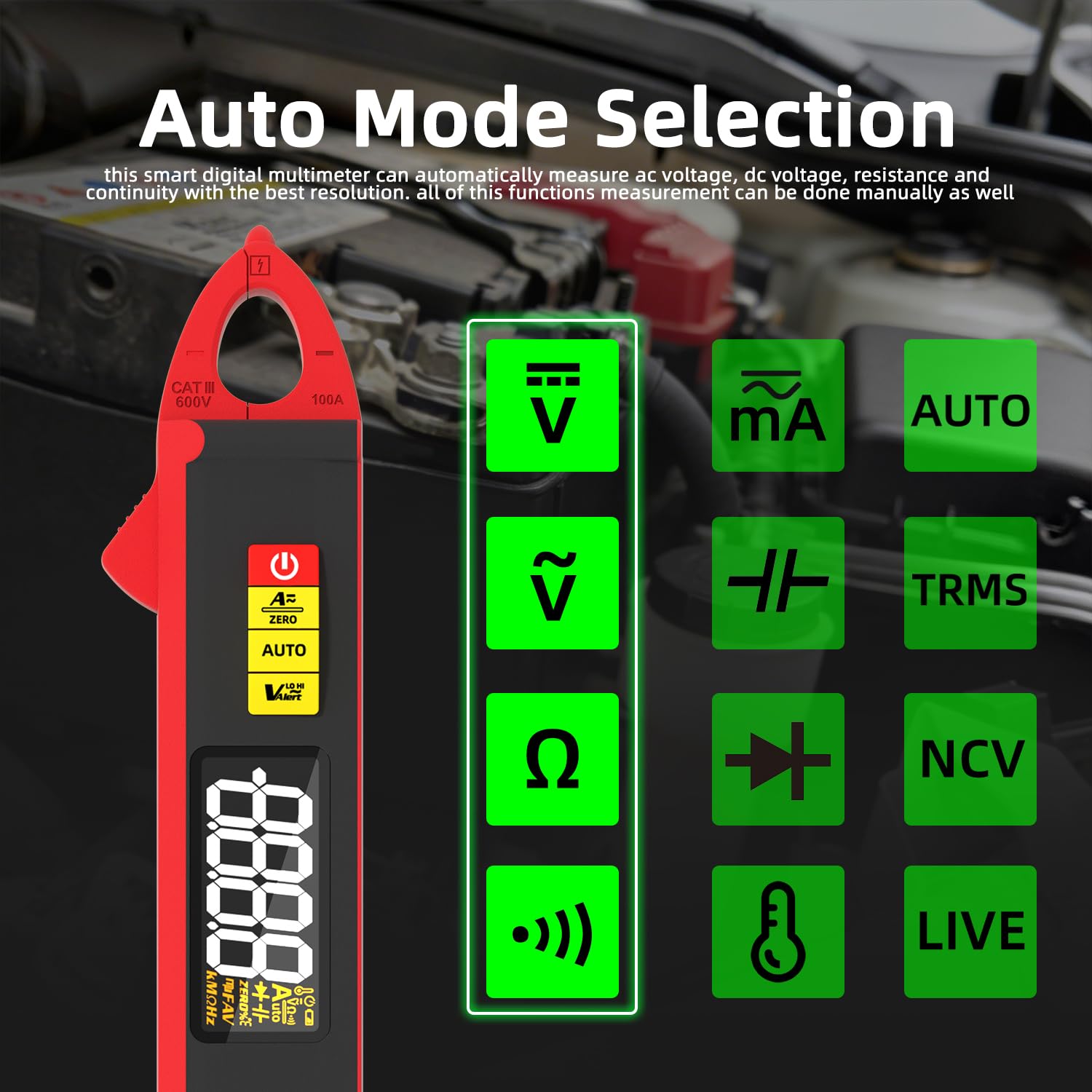

• [Smart Mode]: Multimeter tester can automatically measure ac and dc voltage, resistance and continuity with the best resolution. All of this functions measurement can be done manually as well.
• [Rechargeable]: Parasitic amp draw tester comes with a rechargeable battery, ensuring that you never have to worry about running out of power during your measurements.
• [Portable but Powerful]: TRMS multimeter can accurately measure AC/DC current, AC/DC voltage, temperature, capacitance, diode, duty cycle, frequency, Live Check and V-Alert. Widely used in diagnoses automotive car parasitic current, HVAC, repairing, troubleshooting industrial and household electrical issues.
• [Color Display]: BSIDE UX1 multimeter features a large color screen, which greatly enhance your reading experience, you can get the measurement very easy, even in bright sunlight or poor light.
• [High/Low Sensitivity with 6 Ranges]: DC AC clamp ammeter integrated professional voltage tester, it has high and low sensitivity 2 modes, each mode features low/medium/high ranges.
• [Tips when Test DC Current with Jaw]: The readings will be influenced by earth's magnetic field because the clamp meter is use the Hall effect sensor to detect dc currents. We suggest you measure dc current as the follow suggestions. 1) Zero out the readings before each measurement. 2) Once you zero out the meter, hold the meter in the same orientation when taking readings. Don't tilt it, twist it, or rotate it. Otherwise, changing the orientation of the meter can give false readings due to different magnetic field strengths of the earth when the meter is oriented differently after it's been zeroed. 3) Measures the dc current within 3 seconds, and you will get a accurate results.
