GDSTIME 2-Pack 80mm x 80mm x 25mm 24V Brushless DC Cooling Fan, Dual Ball Bearing High Speed 24 Volt 3 Inch Fan 8025 2-Pin for Amplifier UPS Power Supply LED Stage Lights

flash sale iconLimited Time Sale
Until the end
11
28
42

$12.59 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New  $20.99
quantity

Product details

Management number 218201058 Release Date 2026/05/03 List Price $8.40 Model Number 218201058
Category

The GDSTIME 80mm x 25mm Ball Bearing 24V DC Axial Cooling Fan is ideal for your Electronics and Mechanical Components Cooling Ventilation; This dc cooling fan features a brushless motor, dual ball bearings, lower noise level and easy to install. This is a 80 mm cooling fan having a thickness of 25mm. Designed for projects that requires cooling or ventilation; You can use this fan to replace old or broken fans found in power supply, amplifiers, power inverter, dehumidifier, LED stage lights, electronic cabinets, and other electronics machinery. This is a high speed 24 volt 80mm dc fan that comes with premium quality brushless motor and Dual Ball Bearings that has an operating lifetime of 50,000 hours. The fan's Blades / Housing are constructed of Plastic Material UL 94V-0 P.B.T. which have a high resistance to flammability. Impedance protected motors contains pure copper coil that have a higher resistance to heat during a rotor lock. It is a 2-pin connector 80 mm fan with 11.8 inches enough long power cable. These 80mm x 80mm x 25mm brushless dc cooling fan can be used as both intake or exhaust fan inside your pc case or server chassis. The fan generates an airflow of 50.2 CFM and static pressure of 0.38 In H2O. and spins at a constant speed of 3500 RPM. It is also smoothly in operation and has a maximum noise rating of 37 dBA, offers great performance. These cooling fan kit including 2pcs 80x80x25mm 24V fans, 8pcs screws and nuts long enough to mount for your use, and 2pcs 80mm metal fan grills are used to provide a physical barrier around spinning fan blades to prevent accidental contact with fingers or other objects. So, if you looking for a 24 volt 80mm x 25mm fan for your electronic projects, or for other devices then this one is a good choice.

  • Efficient Cooling: These 24 volt fans can be used to replace old or broken 80 mm fans in amplifiers, UPS battery backup, LED stage lights, solar power inverter, 3D printer motherboard, dehumidifier, power supply, mini fridge, other DIY cooling devices, etc.
  • Dual-ball Motor: The 80mm case fan is a brushless motor fan that comes with dual ball bearing allows the fans rated at 50,000 hours allows the fans to be laid flat or stand upright; The fan can be used as both intake or exhaust fan to pushes a decent amount of air for your electronics and mechanical components

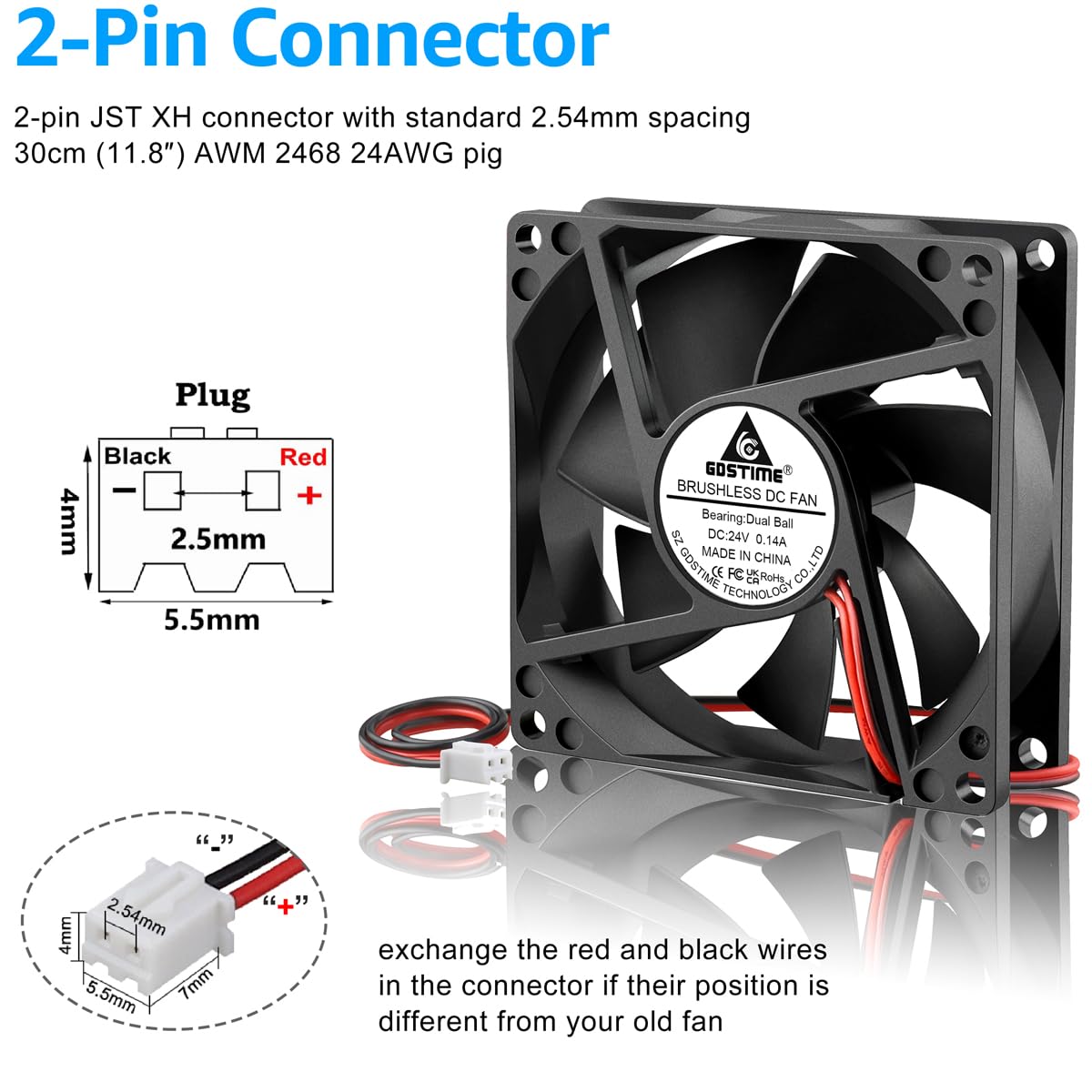

  • 2-Pin Connector: It is a 2 pin fan with 11.8 inches enough long power cable; Red wire: Positive; Black wire: Negative; You can easily exchange the wires if their position is different from your old cooling fan
  • 24V 8025 Fan Specs: 80 x 80 x 25 mm ( 3.15 x 3.15 x 0.98 inches ) | Rated Voltage: 24VDC | Rated Current: 0.1A | Power: 2.1W | Speed: 2800 RPM | Noise: 31 dBA | Airflow: 43.6 CFM | Static Pressure: 0.31 In H2O

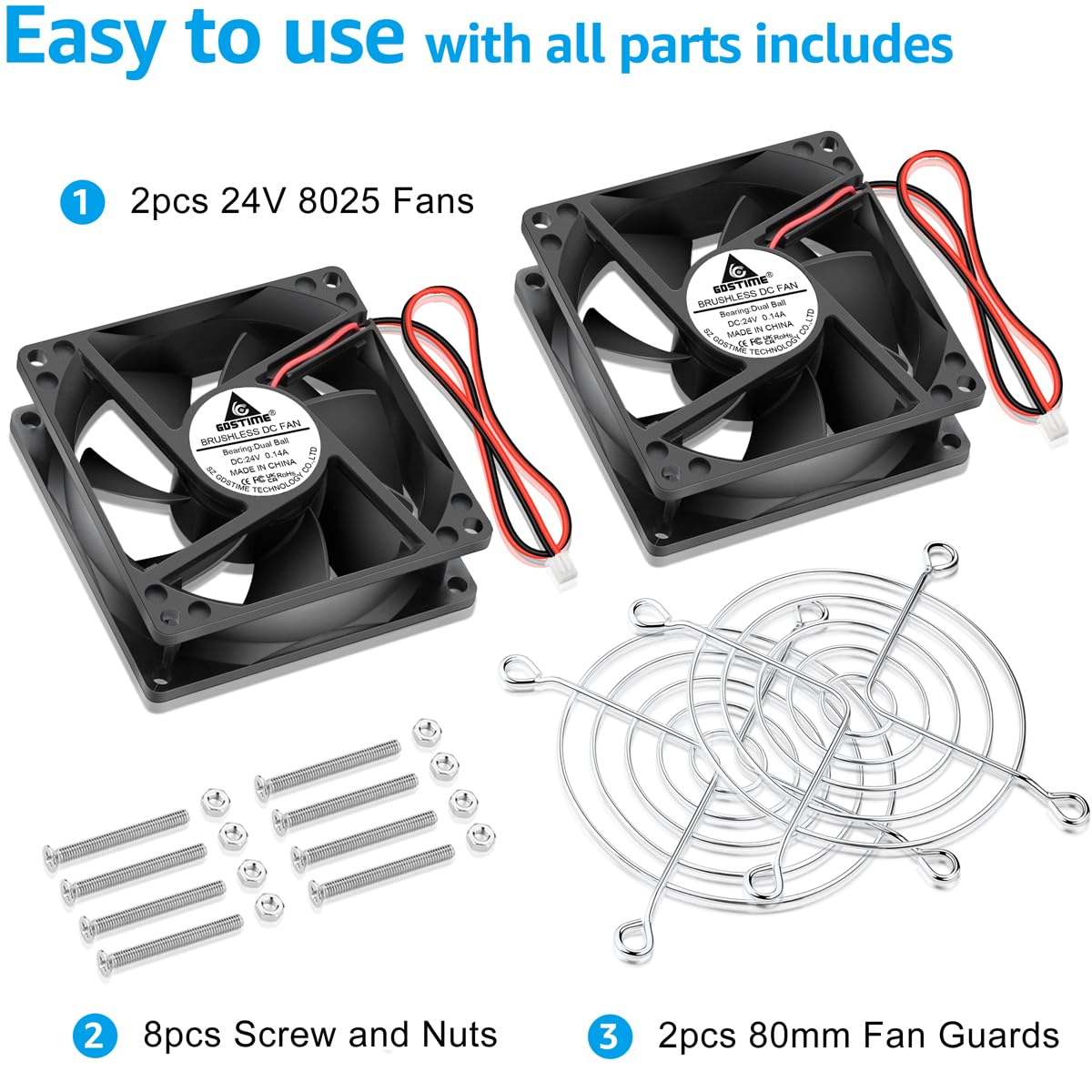

  • Easy to Use: Includes 2pcs 80x80x25 mm 24v dc axial cooling fans; 8pcs long enough mounting screws and nuts; 2pcs 80 mm metal fan grills to protect your fingers and fan blades; 80x25 mm fan size is ideal for compact PC cases (HTPC, ITX, Mini ATX, Small Form Factor) and other chassis ventilation (intake & exhaust)
Model 2xGDA8025B24N35X25230-US
Voltage 24 Volts
Wattage 3.3 watts
Brand Name GDSTIME
Unit Count 2.0 Count
Item Weight 2.15 Ounces
Noise Level 37 Decibels
Part Number 2xGDA8025B24N35X25230-US
Manufacturer GDSTIME
Material Type Plastic
Cooling Method Air
Number of Items 2
Air Flow Capacity 50.2 Cubic Feet Per Minute
Compatible Devices Amplifier, Desktop, Inverter, Refrigerator
Included Components 2PCS 24V 8025 Fans; 2PCS 80mm Metal Guards; 8PCS Screw Sets
Power Connector Type 2-Pin
Maximum Rotational Speed 3500 RPM
Item Dimensions L x W x H 3.15"L x 3.15"W x 0.98"H
