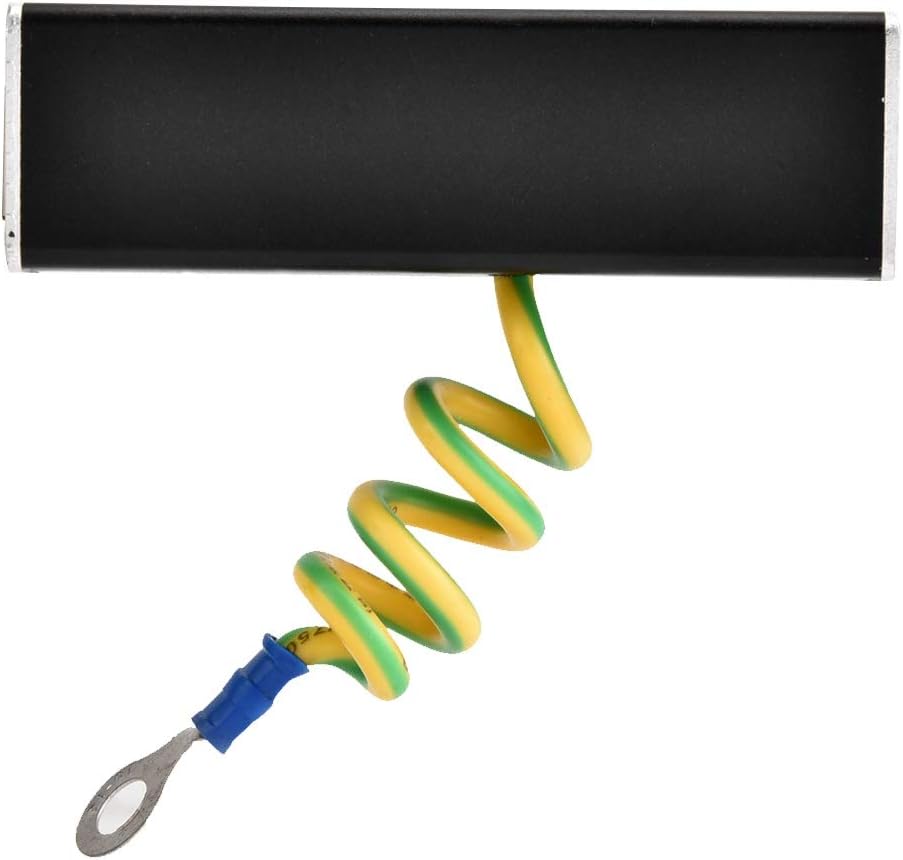

RJ11 Telephone Fax Surge Protector, 110V Thunder Arrester Protector with 10cm Grounding Wire, IP20 Metal Audio Telephone Lighting Protector for SPC Exchange Fax Machine

Features:Large through current capacity, long service life.Built in fast semiconductor protection device, nanosecond response speed.Specifications:Working Voltage Uc: 110VLimited Voltage Up: 180VThrough current Capacity 8/20μs: 5KAMaximum Through current Capacity 8/20μs: 10KAAdaptive Transmission Rate: 2MbpsTemperature Range: -40°C ~ +80°CInstallation Method: In seriesInsertion Loss: 0.5dBResponse Time: 1nsInterface Form: RJ11Protection Level: IP20Material: MetalColor: Shown as picture

• Current Capacity: Thunder arrester protector has a maximum current capacity of 10KA under 8/20 μs waveform, which can effectively cope with strong surge impact. Audio telephone protector can provide stable and long lasting protection for equipment
• Multistage Protection: RJ11 telephone fax surge protector adopts advanced multi level protection circuit design, with a maximum limit voltage of only 180V. Thunder lighting arrester device effectively avoids damage to equipment caused by overvoltage
• Low Loss: Telephone lighting protector has an insertion loss of less than or equal to 0.5dB, with minimal impact on communication status. Telephone fax surge protector supports 2Mbps adaptive transmission to meet the data communication requirements
• Fast Response: Thunder arrester protector is equipped with a built in fast semiconductor device, with a response time of less than or equal to 1ns. IP20 audio telephone protector can start quickly to avoid interruption of pivotal data transmission
• Specification: The 3.1x1x1in telephone lighting protector is installed in series and is used for telephones, SPC exchange, and fax machines. The working voltage of the metal audio telephone protector is 110V, with a temperature range of -40 ° C to +80 ° C
