Manual Hydraulic Pump, 10000Psi CP-180 Hand Pump Separated Type Hydraulic Tool 10 Ton Hydraulic Power Pack Pump 700kg/cm²

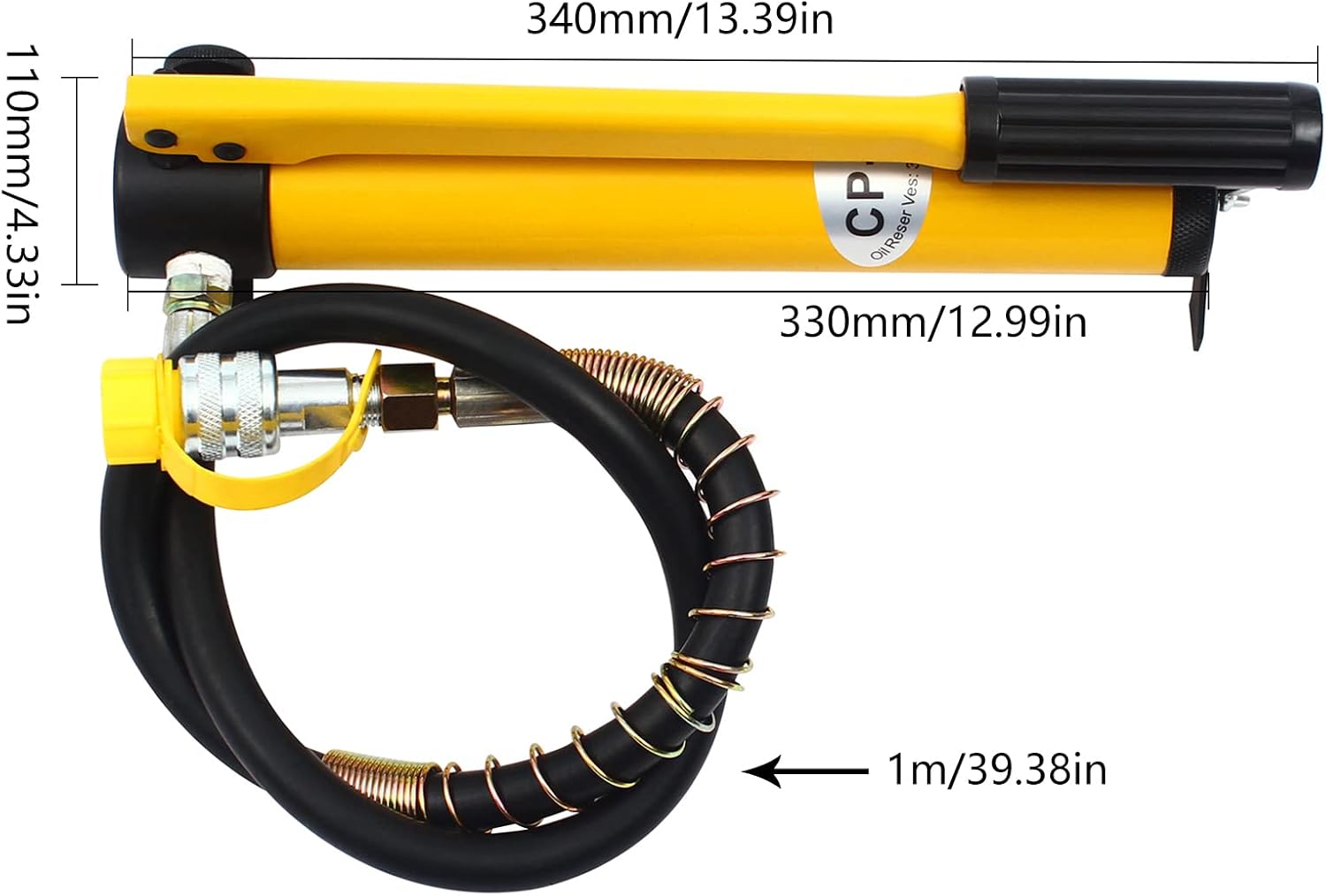

DescriptionThe product is made of high-quality alloy steel material, with a safety load of 10T, and can be used with the jack for applications in electric power, the chemical industry, steel, bridges, shipbuilding, machinery and other industries. The product is equipped with a pressure-reducing valve and a bleed valve to effectively improve the safety of your use. With high efficiency and high stability, it will be a powerful assistant to your work.DetailsOil Return Switch: The rotary oil return switch is easy to use, and the clear identification on it can make your operation more accurate.Bifurcated Base: The base with a bifurcated shape has stronger stability.How to Use1.First, connect the connector of the manual pump to the jack.2.Select the position and tighten the drain screw of the hydraulic pump to work.SpecificationModel: CP-180Material: Alloy SteelColor: YellowSafe Load: 10T/22046.23lbsThread Connection: ZG3/8''Maximum Output Pressure: 10000PsiHigh Pressure Output: 700KG/CM²Low Pressure Output: 60KG/CM²Oil Storage: 400cc/24.41cu inTubing Length: 1M/39.37inHandle Length: About 34cm/13.39inGross Weight: 4kg/ 8.82 lbs Net Weight: 3.3kg/ 7.28 lbsProduct Size: 33*11*11cm/12.99*4.33*4.33inPackage Size: 17*22*38cm/6.69*8.66*14.96inPackage Included1 * Manual Hydraulic Pump1 * Steel Ball1 * Sealing RingNotes1.This product is applicable to vertical and horizontal directions, but cannot be tilted or inverted.2.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

• ♛【High-quality Material】The product made of alloy steel have high hardness and strong compression resistance, which can effectively extend the service life of products.
• ♛【High Safety】The pressure-reducing valve inside the product can effectively prevent pressure overload. In addition, the safety bleed valve effectively improves your use safety.
• ♛【High Efficiency】Under the condition of constant power, low pressure and large flow oil supply and high pressure and small flow oil supply can save time and improve efficiency. Its 10000Psi maximum output pressure and 10T safety load also promote its work efficiency.
• ♛【Large Oil Storage】The large oil storage capacity of 400cc allows you to use it easily without frequent refueling.
• ♛【Wide Application】It can be used with most split hydraulic equipment with a ZG3/8'' threaded interface, such as a hydraulic jack, hydraulic crimping machine, hydraulic punching machine, hydraulic pipe bender, etc.
• ♛【Good Sealing】The pump body is well-sealed and is not easy to leak oil. The steel ball and sealing ring in the package can also prevent oil leakage and can be replaced.
• ♛【Integrated Structure】The product with an integrated structure can be directly used with jacks without an additional installation.
