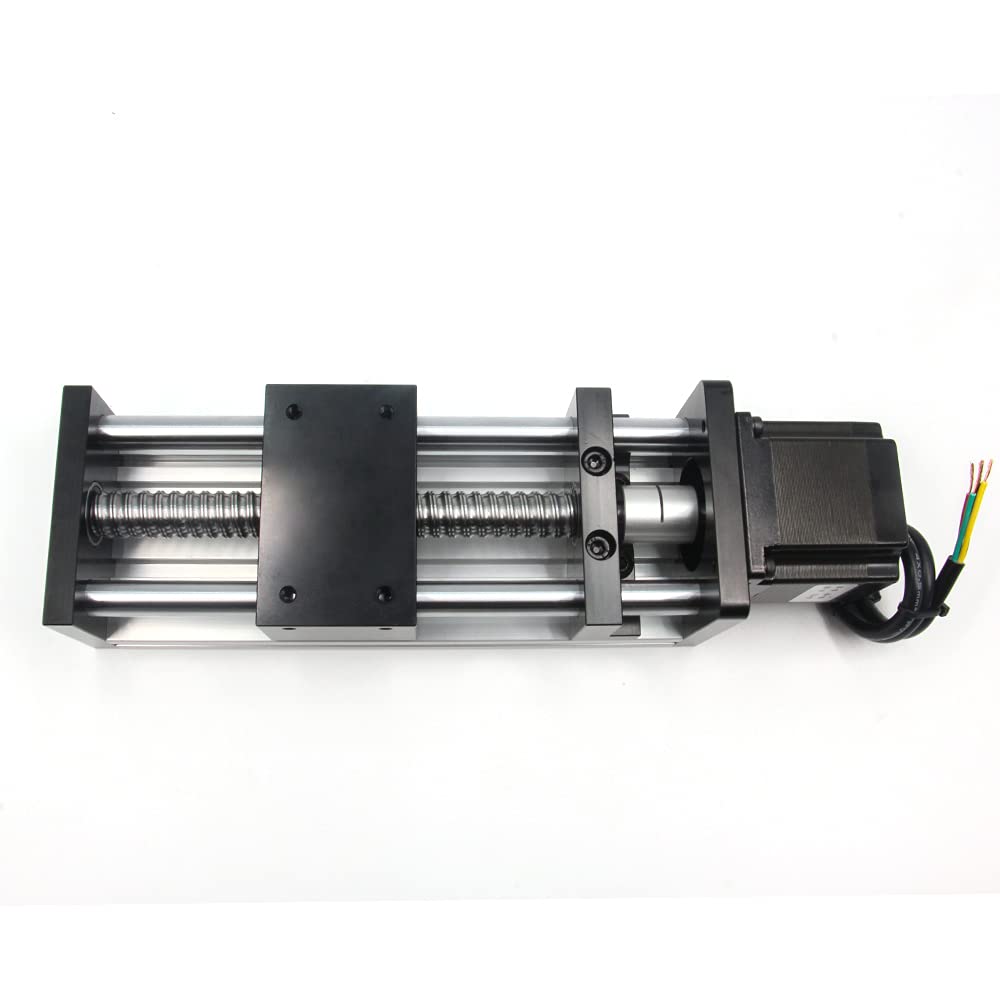

Zeberoxyz 1PCS 100mm Length Effective Travel Dual Optical Axis Guide Ballscrew SFU1605 with NEMA23 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuators and 3D Printer (Size:100mm)
4.9 (44 items)
Limited Time Sale$57.48 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219314769 | Release Date | 2026/05/03 | List Price | $38.32 | Model Number | 219314769 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Product Name: 100mm Effective Travel Length Double Optical Axis Guide Ballscrew SFU1605 with NEMA23 Stepper Motor Install: 4pcs M5 threaded hole to fix the workpiece Stepper motor Parameter: Step angle: 1.8 degree Motor flange size: 57mm Motor length: 56mm Holding torque: 1.2N.m Current: 3A Resistance: 0.8 ohm Inductance: 2.4 mH Rotor Inertia: 440g.cm Lead wire: 4pcs Wiring: Red: A+ Green: A- Yellow: B+ Blue: B- Linear Stage Actuator Parameter: Effective Travel Length: 100mm/3.9inch Total length :276mm/10.8inch Type: Dual Optical axis system moulde Ballscrew type: SFU1605 (diameter:16mm, pitch of screw:5mm) Level ballscrew: C7 Weight: about 2317g Package Content: 1PCS Dual Optical Axis Actuator with NEMA23 Stepper Motor PLEASE NOTE: Please allow 0-3mm error due to manual measurement. Due to different display screens and lighting effects, the actual color of the item may be slightly different from the color shown. Any question or problem, do not hesitate to contact or QA us,we will try our best to service you with in 24 hours.
- Good quality Brand new products
- Material: Made of good quality metal, fine workmanship, stable performance and high work efficiency, and is an essential part of linear motion
- High Accuracy: Repeat positioning accuracy is ±0.03mm; Load:Maximum horizontal load capacity: 30kg; Maximum vertical load capacity: 15kg; Speed: 0-100mm/s
- Effective stroke: 100mm/3.9inch effective stroke,Lead:5mm ( lead screw can moves 5mm in one turn)
- Package Content: 1PCS Dual Optical Axis Actuator with NEMA23 Stepper Motor
| UPC | 785382223468 |
|---|---|
| Brand Name | Zeberoxyz |
| Item Weight | 2317 Grams |
| Part Number | ZE093-3 |
| Manufacturer | Zeberoxyz |
| Material Type | Metal |
