CU571 Aluminum Radiator for 1964-1987 Chevy Camaro Chevelle El Camino Monte Carlo, 3 Row Core Radiators + Shroud/Fan + Relay Kit

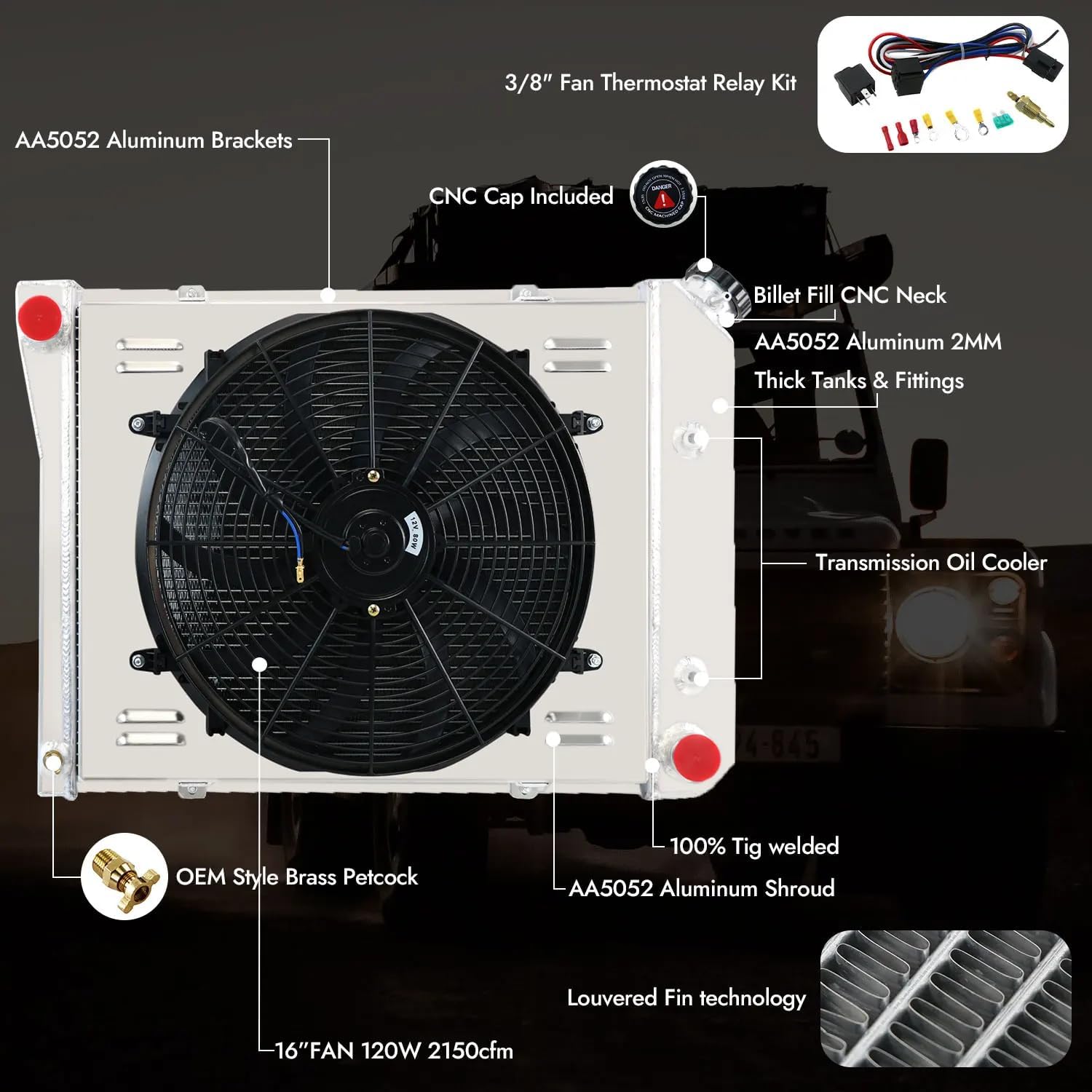

Product Includes: 1 X 3 Row Aluminum Radiator (includes radiator cap) 1 X Aluminum Shroud 1 X 16inch Fans (Includes mounting kits) 1 X Thermostat Relay Kits Radiator Specs: Upper Inlets: Located on the driver side Lower Outlets: Located on the passenger side Core Material: Full Aluminum Tank Material: AA5052 Aircraft Grade Aluminum Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap Transmission Oil Cooler: Included Engine Oil Cooler: No Flow Type: Crossflow Fan Details: Maximum Fan CFM: 1730 cfm Fan Diameter (inch): 16.050 Thickness (inch): 2.500 Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature 180'F/165'F turn on/off temperature RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans OEM/Substitute Numbers: CC571, AE571, EC571, MC571, 21369, RA1213, PRO569F, CU571, PR0571, 899571, 21369, A571, REA41-571A, 8010331, 571, 1605-560203, 213-69, 9147, 43-3571 This Radiator Compatible with: Chevy series 1969-1979 Chevy Nova 3.8L 4.1L 4.3L V6 5.0L 5.7L V8 1979-1987 Chevy Monte Carlo 3.3L 3.8L 4.3L V6 1975-1983 Chevy Malibu 3.3L 3.8L 4.1L 4.3L V6 1971-1985 Chevy Impala 3.8L 4.1L 4.3L V6 1975-1984 Chevy El Camino 3.8L 4.1L V6 1968-1973 Chevy Chevelle 3.8L 4.1L V6 5.0L V8 1972-1980 Chevy Caprice 3.8L 4.1L V6 1974-1981 Chevy Camaro 3.8L 4.1L V6 5.0L 5.7L V8 1971-1973 Chevy Bel Air 4.1L V6 1971-1972 Chevy Biscayne Brookwood 4.1L V6 GMC SERIES: 1978-1987 GMC Caballero 3.8L 4.3L V6 OLDS SERIES: 1977-1987 Olds Cutlass Supreme 3.8L 4.3L V6 1979-1985 Olds Delta 88 3.8L V6 1973-1979 Olds Omega 4.1L 5.0L 1981-1983 Olds 98 4.1L 1979-1981 Olds Cutlass 3.8L 4.3L V6 PONTIAC SERIES: 1968-1981 Pontiac LeMans 3.8L 4.1L V6 1979-1987 Pontiac Grand Prix 3.8L 4.3L V6 1980-1986 Pontiac Bonneville 3.8L 4.3L V6 1980-1981 Pontiac Catalina 3.8L 4.3L V6 1970-1976 Pontiac Firebird 4.1L V6 1979-1981 Pontiac Grand LeMans 3.8L V6 1977-1979 Pontiac Phoenix 5.0L 5.7L 1968-1970 Pontiac Tempest 4.1L 1972-1976 Pontiac Ventura 4.1L V6 PLS check core/overall/inlet/outlet SIZE carefully before you order

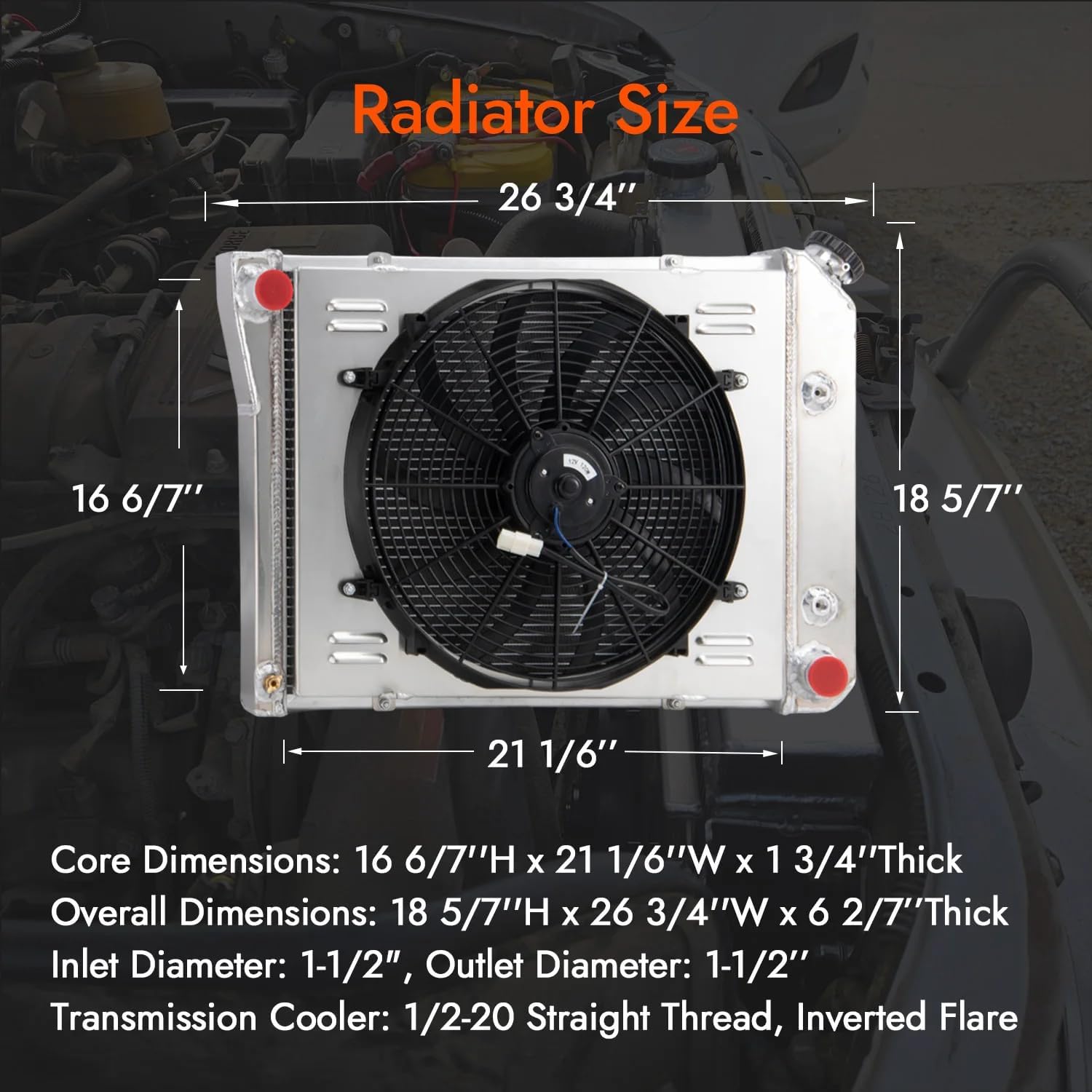

• Rows: 3 Core Radiator Electric Fan ; Core Size:16 6/7''H x 21 1/6''W x 1 3/4''Thick ; Overall Size: 18 5/7''H x 26 3/4''W ; CNC machined filler neck and cap ; OEM Style Brass Petcock Drain
• Inlet: 1 1/2'' Driver Side ; Outlet: 1 1/2'' Passenger Side ; Transmission Oil Cooler Fitting Type: 1/2-20 Straight Thread, Inverted Flare
• 3 Rows aluminum radiator with Fan Compatible For 1969-1973 Chevy Chevelle 3.8L 4.1L L6 5.0L 5.7L V8 GAS; Fits For 1970-1979 Chevy Nova 3.8L 4.1L 4.3L L6 5.0L 5.7L V8 GAS; Fits For 1975-1983 Chevy Malibu 4.1L L6 3.3L 3.8L 4.3L V6 GAS; Fits For 1971-1985 Chevy Impala 4.1L L6 3.8L 4.3L V6 GAS; Fits For 1974-1981 Chevy Camaro 4.1L L6 3.8L V6 5.0L 5.7L V8 GAS; Fits For 1972-1987 Chevy Monte Carlo 3.3L 3.8L 4.3L V6 5.7L V8 GAS; Fits For 1975-1984 Chevy El Camino 3.8L V6 4.1L L6 GAS; Fits For 1972-1980 Chevy Caprice 3.8L V6 4.1L V6 GAS; Fits For 1971-1973 Chevy Belair 4.1L L6 Gas; Fits For 1971-1972 Chevy Biscayne Brookwood 4.1L L6 GAS
• 100% aluminum construction provides greater heat and pressure tolerance
• Vehicle test-fitted prior to market release, ensuring perfect drop-in fit
• 100% Leak Tested backed, High performance racing design, improves cooling by 35 -45% Temp
