SG-003A SG-004A Multifunctional Signal Generator4-20mA PT100 Thermocouple Resistance Pressure Transmitter(NEW SG-004A-YE)

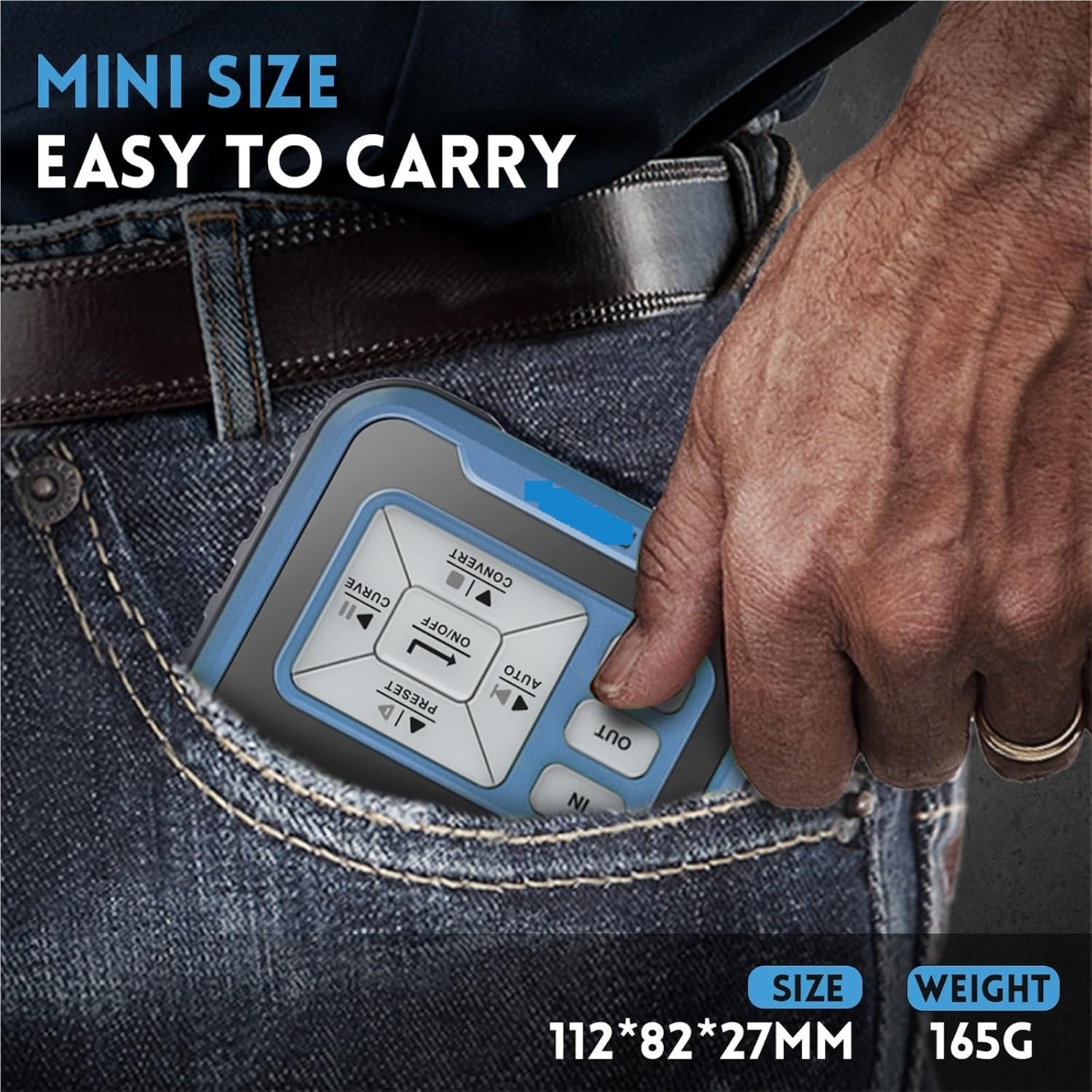

Digital Signal ProcessorsSG-003A signal sources is mainly used for debugging of industrial field , process instrumentation, electric valve and so forth. Friendly operation interface is easy to use.The SG-003A signal sources is small and light but has a long standby time and high precision.Easy to carry when you go out to work.Adjustable button backlight and high-definition TFT color screen make it more convenient for users to operate at night and during the dayFeatures :1. Expect with the conventional signal input and output functions2. Voltage and current have automatic output function,it can choose a single rise,three modes of single drop and cycle.3. With input to output conversion,voltage conversion active current mode,passive mode and current conversion voltage mode.4. The output has a custom function,the upper and lower output limits can be set arbitrarily.6. Voltage input diagram,current input diagram,the frame rate is 10 frames.7. PWM output can set frequency and duty cycle respectively.8. Real-time curve:Real-time observation of changes in voltage and current9. It is powered by a large-capacity lithium battery and is charged with a Type-c interface (5V).The capacity of the lithium battery is 3000mHA,Super long working hours10. The high-definition TFT color screen makes the reading more eye-catching.The resolution is 240*320.Low power consumption,Maximum power consumption: 0.32W1. Active current output: range: 0~24mA; resolution: 0.01 mA; maximum load: 750;Precision:±(0.1%+0.005)2. Passive current output: range: 0-24 mA; resolution: 0.01 mA; external power supply up to 30V;Precision:±(0.1%+0.005)3. Voltage output: range: 0-24 V; resolution: 0.01v; maximum current 30mA;Precision:±(0.1%+0.005)4. 24V voltage output: drive current: 24mA;resolution: 0.01 mA;Precision:±(0.1%+0.005)5. Current input measurement: range: 0-24 mA; resolution: 0.01 mA; input impedance:100;Precision:±(0.1%+0.05)6. Voltage input measurement: range: 0-30 V; resolution: 0.01 V; input impedance: 2M;Precision:±(0.1%+0.05)7. PWM output (frequency):Range: 0-9999Hz8. A sngle 3.7V 3000mAh lithium battery power supply; Standby time is 26 hours;the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)9. Operating environment: 0 °C - 50 °C.10. Internal reverse and overcurrent protection; protection voltage:30V11. Output automatically12. Size: 92mm*72mm*30mm13. Weight:165g1* SG-003A Multifunctional Signal Sources Calibrator4*Test Clip1*Type-C Charging Cable1*EU Charger==========High-concerned chemical : NoneElectronic : YesModel Number : SG-003ADIY Supplies : ElectricalCertification :
