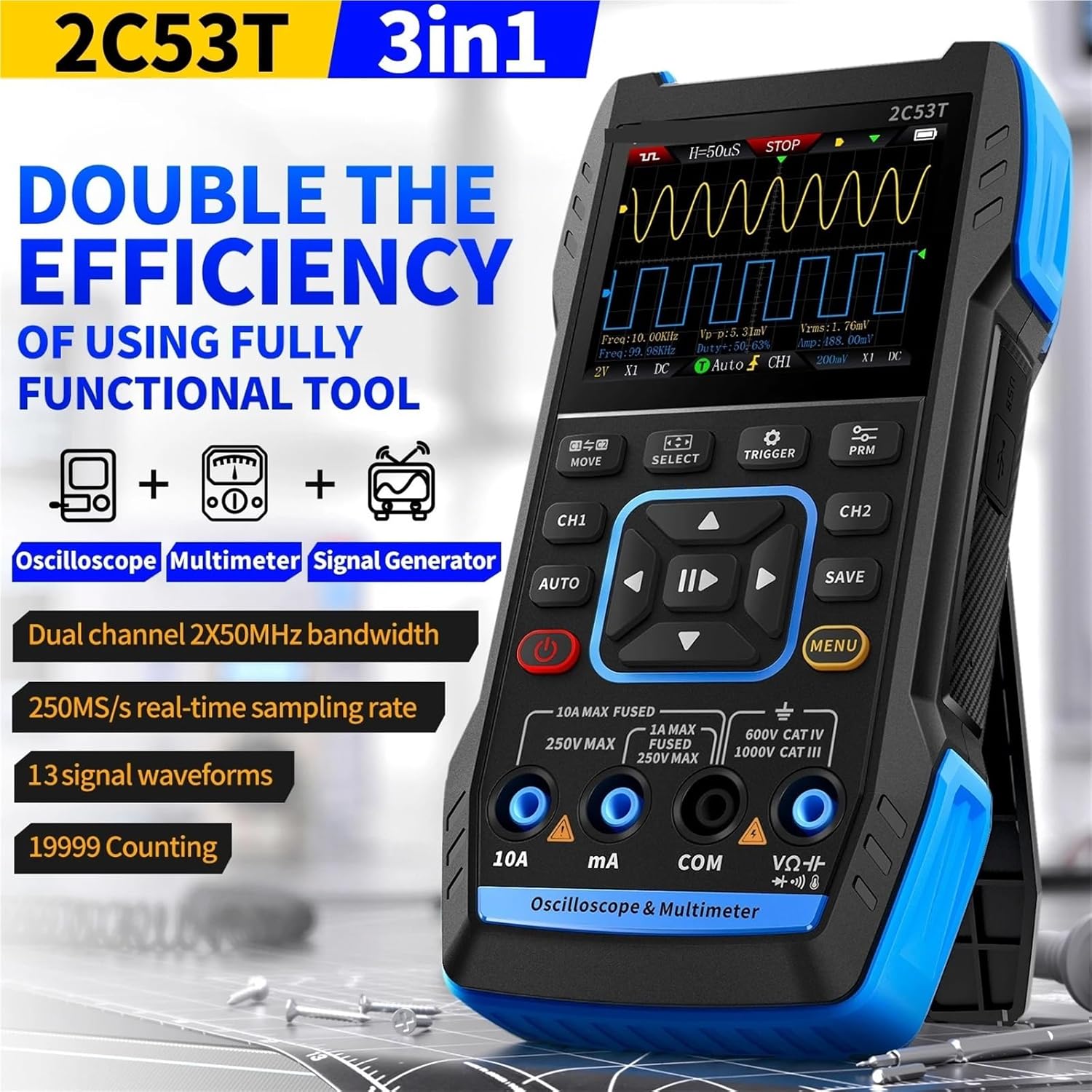

2C53T Digital Oscilloscope Multimeter Signal Generator 3 in 1 Dual Channel 50MHz 250MS Sampling Rate 20000 Count True RMS(2C53T with P6100x2)

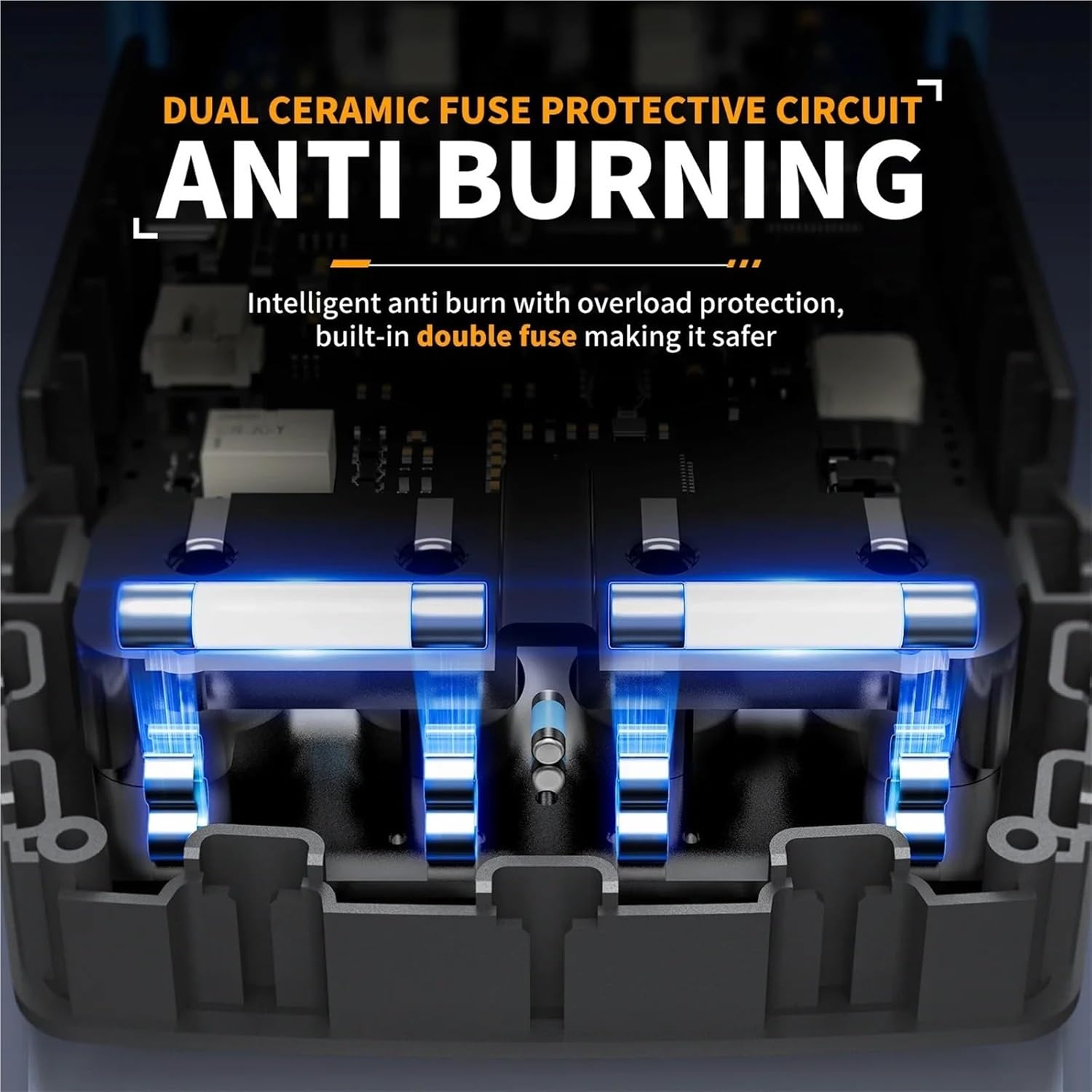

Digital Signal ProcessorsThe multimeter function offers 4.5 digits with 19999 counts true RMS, supporting AC/DC voltage and current measurements, as well as capacitance, resistance, diode, and continuity measurements, making it an ideal multifunctional instrument for professionals, factories, schools, enthusiasts, or home use.The built-in DDS function signal generator can output 13 types of function signals, with a maximum output frequency of 50KHz and a step size of 1Hz. The output frequency, amplitude, and duty cycle are adjustable. It features a 2.8-inch 320*240 resolution high-definition screen and a built-in 3000mAh rechargeable lithium battery with a standby time of up to 6 hours. Its compact size provides users with more powerful practical functions and excellent portability.Key Features:1.Anti-burning:Dual ceramic fuse protective circuit. Intelligent anti-burn with overload protection, and built-in double fuse making it saferExcellent performance: The hardware architecture adopts the same ARM+FPGA+high-speed ADC scheme as desktop computers, with high cost. it is not an ordinary CPU direct acquisition scheme, and has a powerful triggering system with super strong waveform capture ability, without losing waveform details.2.Waveform detail analysis: It supports advanced functions such as XY mode, cursor measurement, persistence measurement, mathematical operations, etc., making it easy to capture abnormal signals. Supports waveform saving and exporting for convenient secondary analysis.3.Waveform saving and viewing: Save a screenshot of the waveform with one click. The saved image can be viewed in an oscilloscope or exported to a computer facilitating secondary analysis.Basic Parameter:Product Model:2C53TDisplay:2.8 inch HD color screenCharging specifications: TYPE-C (5V/1A)Battery: 3000mAh lithium batteryOscilloscope Parameter:Channel: Dual channelSample Rate: 250MS/sAnalog Bandwidth: 50M(dual channel independent 50M)Storage Depth: 1KptsImpedance:1MTime Base Range:10ns-20sVertical Sensitivity:10mV/div-10V/div(X1)Maximum Measured Voltage:±400VTrigger Mode:AUTO/Normal/SingleTrigger Type:Rising edge, Falling edgeDisplay Mode:Y-T/Rolling/X-YCoupling Method:AC/DCPersistence:OFF, 500ms, 1s, Math:8 Basic Operations + FFTWaveform Screenshot Save:SupportedExport Waveform Image:SupportedCursor Measurement:SupportedMultimeter Parameter:DC Voltage:1.9999V/19.999V/199.99V/1000VAC Voltage:1.9999V/19.999V/199.99V/750.0VDC Current:19.999mA/199.99mA/1.9999A/9.999AAC Current:19.999mA/199.99mA/1.9999A/9.999AResistance:19.999M/1.9999M/199.99K/19.999K, 1.9999K/199.99Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mFTemperature: (-55~1300)/(-67~2372)Diode: YESContinuity test: YESSignal Generator Parameter:1. 13 Signal waveforms: Output waveform: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, reverse step wave, exponential rise, exponential fall, DC, multi-audio, Sinker pulse, Lorentz wave2. Output frequency: 0-50KHZ3. Output amplitude: 0-3V4. Output duty cycle: 0-100%Package Inclued:NO.1 2C53T Standard1 x 2C53T Oscilloscope1 x P6100 Probe(10X )1 x Alligator Clip Probe1 x Multimeter Probe1 x Charging Cable1 x Storage Bag1 x User Manual1 x Packing BoxNO.2 2C53T Full Set1 x 2C53T Oscilloscope2 x P6100 Probe( 10X )1 x Alligator Clip Probe1 x Multimeter Probe1 x Charging Cable1 x Storage Bag1 x User Manual1 x Packing Box==========Battery Included : YesHigh-concerned chemical : NoneIS Battery Demountable : YesRecord Length : 1KptsModel Number : 2C53T 3 in 1 OscilloscopeCertification : Real Time Sampling Rate : 250MS/sDIY Supplies : ElectricalBand Width : 50MHzDigital Channels : 2 Model : 2C53TDisplay Resolution : 320*240 Pixels Model : 2C53TDisplay : 2.8'' HD Color ScreenCharging : TYPE-C (5V/1A)Battery : 3000mAh lithium batterySupport functions : Oscilloscope+Signal generator+MultimeterImpedance : 1MTime Base Range : 10ns-20sVertical Sensitivity : 10mV/div-10V/div (X1)Max Measured Voltage : ±400VTrigger Mode : AUTO/Normal/SingleTrigger Type : Rising edge, Falling edgeDisplay Mode : Y-T/Rolling/X-YCoupling Method : AC/DCMath : 8 Basic Operations & FFTCursor Measurement : SupportedWaveform Screenshot Save : SupportedExport Waveform Image : SupportedOutput Waveforms : 13 typesFrequency output : 1Hz-50KHzAmplitude : 0.1-3.0VDC Voltage : 1000VAC Voltage : 750.0VDC Current : 9.999AAC Current : 9.999AResistance : 19.999MCapacitance : 99.99mFTemperature : -55~1300/-67~2372Diode Test : YESContinuity Test : YES
