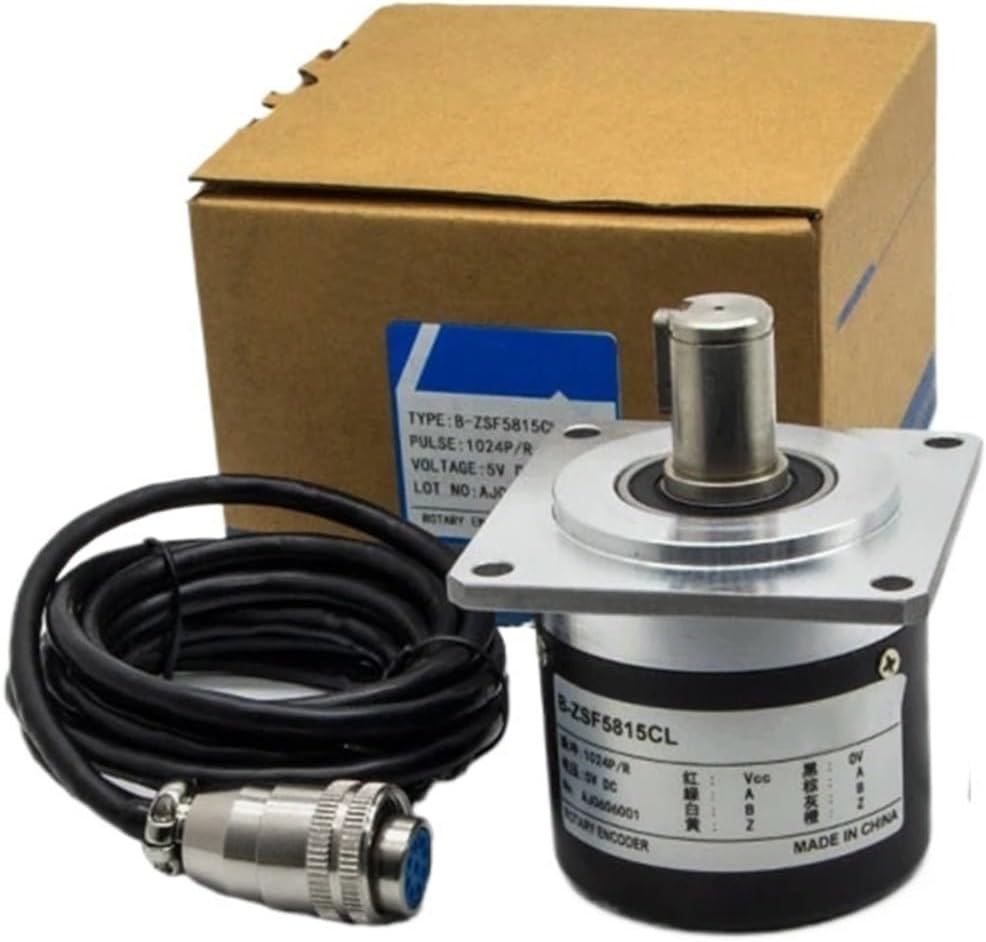

58mm Incremental Rotary Encoder 15mm Flange Shaft Optical Switch AB 2 Phases 10-1024-2048-3600 PPR 5-24VDC(ZSF5815-2048PPR,Drive Output(5V))
5.0 (121 items)
Limited Time Sale$85.50 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220367160 | Release Date | 2026/05/03 | List Price | $57.00 | Model Number | 220367160 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Encoders58mm Incremental Rotary Encoder 15mm Flange Shaft Optical Switch AB 2 Phases 10-1024-2048-3600 PPR 5-24VDCReminder:1.As the wiring standards of each are different, please strictly follow the wiring diagram2.If you are not a professional, please do not connect the wires randomly If you have any questions, please contact our customer service3.The outer core (shield) of the shielded wire shall not be linked with the inside and the shellZBP3808G C / PULSEB M Model: (Z: incremental B:Half Hollow Shaft P: Universal type)Outer diameter: 38mmShaft diameter: 8mmOutgoing mode: ( G: Cable side out,E:Cable back out)Model output mode:(C: open collector output E: voltage output F: Pushpull output L:Drive output(5V) T: Drive output(8-24V))Pulse number:20.25.30.40.50.60.80.90.100.200.240.250.256.300.360.400.500.600.720.800.1000.1024.1200.1500.1800.2000.2048.2500.3000.3600(special specifications can be )Output model: B = a, phase BVoltage selection: (M: 8-24, blank: 5V)Positive and negative zero position: (blank: positive zero position F: negative zero position)Cable length: Standard 2m (other sizes can be )Electrical parametersMechanical parametersNumber of pulses:Maximum 3600P/RStarting force cabinet:2x10-3N .M(±25)Current consumption:100mAAllowable load of shaft:Axial 9.8N, radial 9.8NResponse frequency:0~100KHZMoment of inertia:4x10-8KGM²working temperature:-20~+70Maximum revolutions:5000r/minStorage temperature:-20~+80Protection level:IP65Output item:Anti vibration:50m/S²(10~200Hz x,y,z 2 hours in each of the three directions)Output voltage VH:VCC-2.5VImpact resistance:980m/S²Output voltage VL:0.5VMaterial Science:Shaft: stainless steelEnd face: aluminum alloy1.0VShell: aluminum alloy spray powdersupply voltage:DC5Vweight:220gDC8V-24VRise / fall time:5V driver 0.1us24V
- Encoders
- 58mm Incremental Rotary Encoder 15mm Flange Shaft Optical Switch AB 2 Phases 10-1024-2048-3600 PPR 5-24VDC
| Item Weight | 1.76 ounces |
|---|---|
| Manufacturer | NXYHZ |
| Item model number | NXYHZ |
| Batteries required | No |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
