Industrial Managed 8 Port PoE Ethernet Switch with 2 SFP Slot, Gigabit Networking Switch with Web Management, Supporting Din-Rail

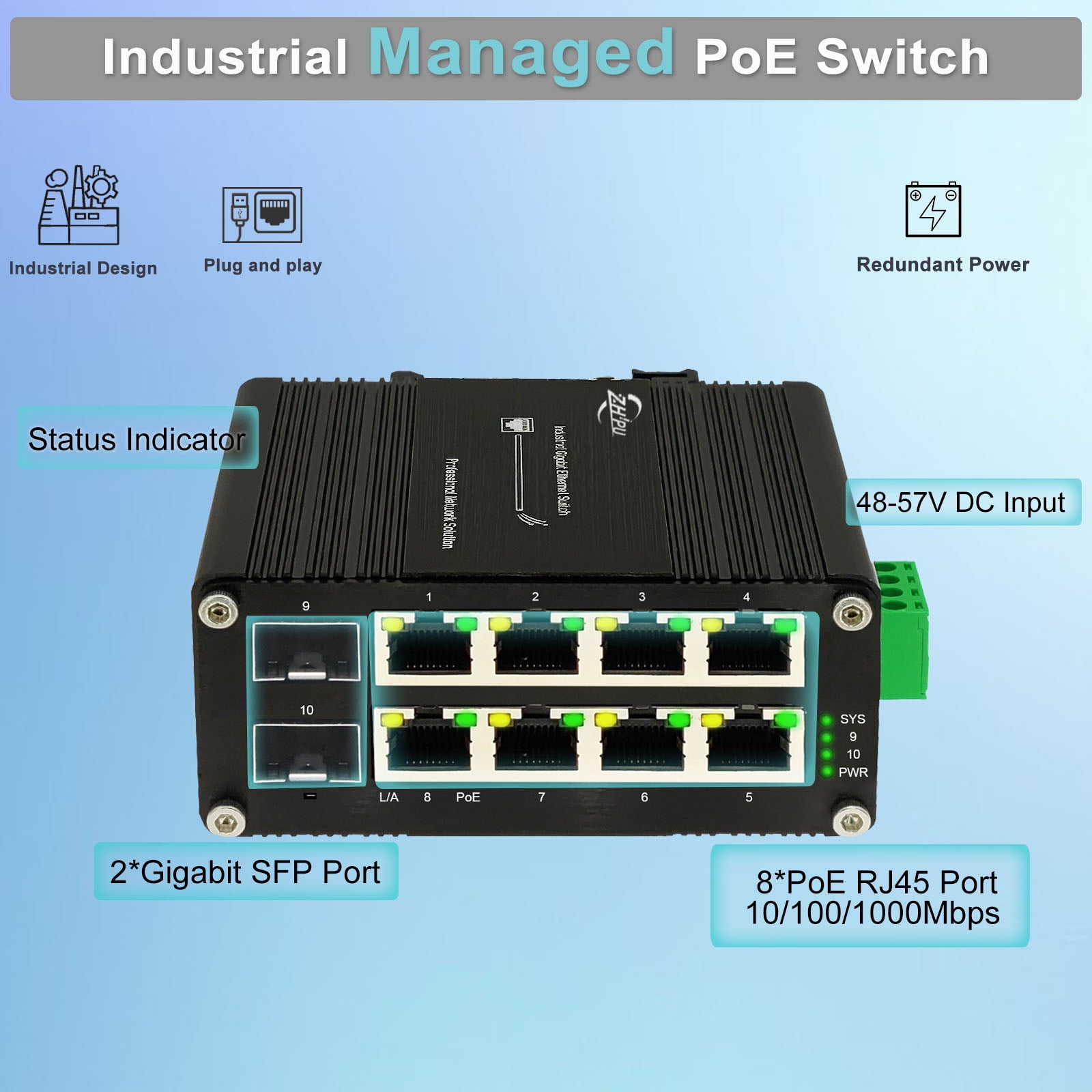

<p><b>Overview:</b></p><p>The industrial Managed Switch has <b>Easy Network Management</b>, supporting <b>Web management, VLAN, STP/RSTP.</b> Besides, Its all 10 ports support gigabit transmission, and 8 RJ45 ports support <b>IEEE802.3af/at PoE supply</b>, Total PoE Budget can up to 240W. Meanwhile, Industrial IP40 Al case can make it work under the hashed environment (-40°C to 80°C). It’s a good choice for outdoor installations and industrial applications.</p><p>&nbsp;</p><p><b>Features:</b></p><ul> <li>8x10/100/1000Base-TX + 2x100/1000Base-X SFP</li> <li>Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX</li> <li>Supports WEB Management</li> <li>Supports IEEE 802.3at PoE+ (30W per port)</li> <li>Supports 802.3x Flow Control</li> <li>Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode</li> <li>Support IEEE 802.3D/W/S standard STP/c protocol</li> <li>IEEE 802.3az Energy Efficient Ethernet (EEE)</li> <li>Redundant Power Inputs</li> <li>-40°C to 80°C operating temperature</li></ul><p>&nbsp;</p><p><b>Specification:</b></p><p>Connector: 8xRJ45, 2xSFP</p><p>SFP modules: single/multi-mode fiber, 1or 2 core</p><p>PoE Standard:&nbsp;IEEE802.3af/at</p><p>Backplane bandwidth：20Gbps</p><p>Packet Buffer: 9216bits</p><p>Packet Length: 9K bytes</p><p>MAC Address Table:&nbsp;4K </p><p>Forward &amp; Filtering Rate:14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)</p><p>Software Features：<b>VLAN，QOS，STP/RSTP, IGMP Snooping V1/V2/V3</b></p><p>Management Function: <b>WEB</b></p><p>Security: <b>Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint</b></p><p>Input Power(PoE):&nbsp;48~57VDC, Redundant Power (4-pin Terminal Block)</p><p>Power PIN Assignment:<b>&nbsp;4,5(+);7,8(-)</b> (Alternative B Mode)</p><p>Certification:&nbsp;CE,FCC</p><p>Dimensions (WxDxH):&nbsp;5.45 x 4.17 x 1.61 inches</p><p>&nbsp;</p><p><b>Packages: </b></p><p>1*10-port Managed PoE switch</p><p>1*4-pin&nbsp;terminal block</p>1*User&nbsp;Manual<p></p>

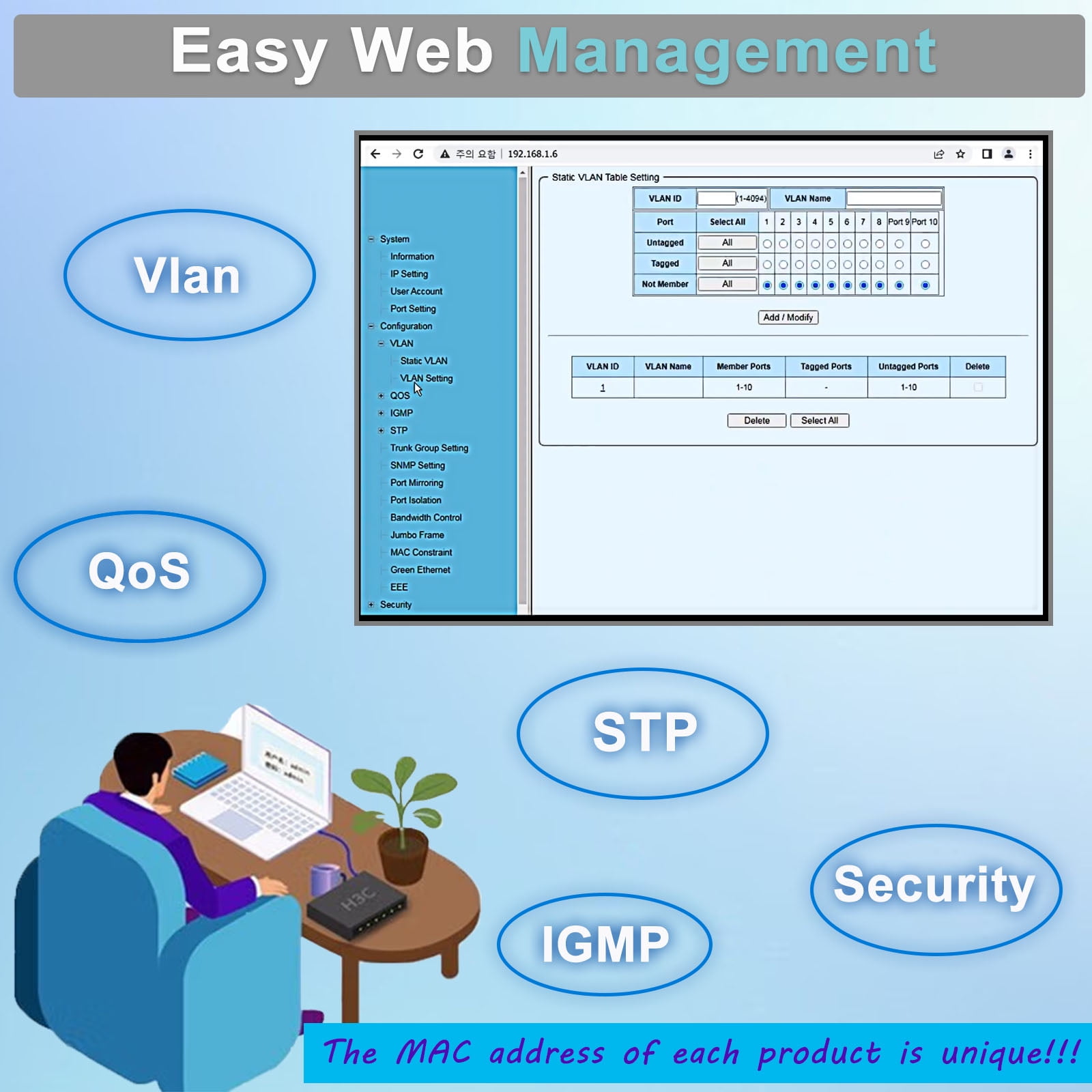

• [𝗘𝗮𝘀𝘆 𝗡𝗲𝘁𝘄𝗼𝗿𝗸 𝗠𝗮𝗻𝗮𝗴𝗲𝗺𝗲𝗻𝘁]--The switch supports Web Management, VLAN, STP/RSTP, helping you easily achieve the management of the switch.
• [𝗘𝗮𝘀𝘆 𝗡𝗲𝘁𝘄𝗼𝗿𝗸 𝗠𝗮𝗻𝗮𝗴𝗲𝗺𝗲𝗻𝘁]--The switch supports Web Management, VLAN, STP/RSTP, helping you easily achieve the management of the switch.

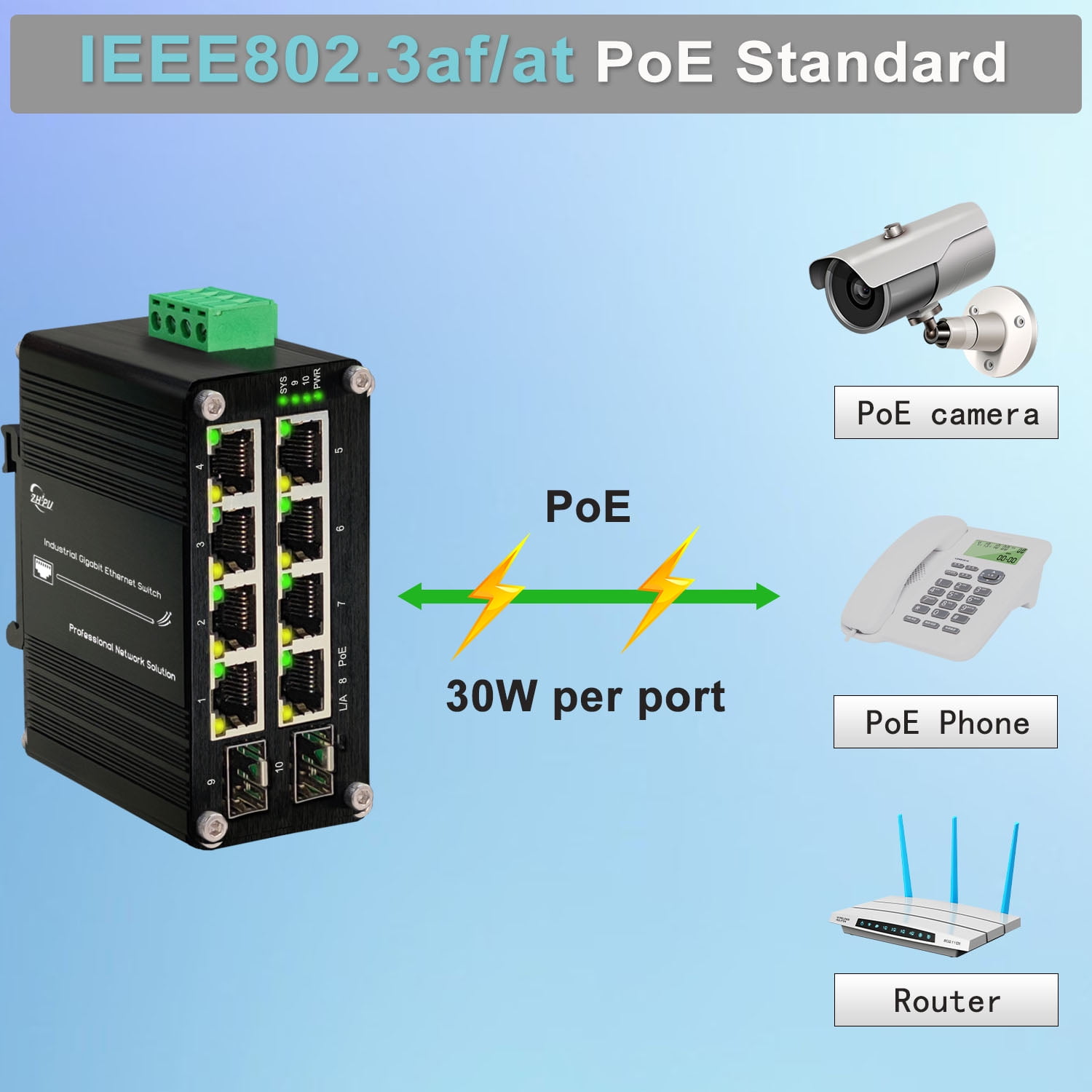

• [𝗣𝗼𝗘 𝗙𝘂𝗻𝗰𝘁𝗶𝗼𝗻]—This Switch supports IEEE802.3af/at PoE (30W), can easily power multiple devices, reducing the need for additional power cables or adapters.

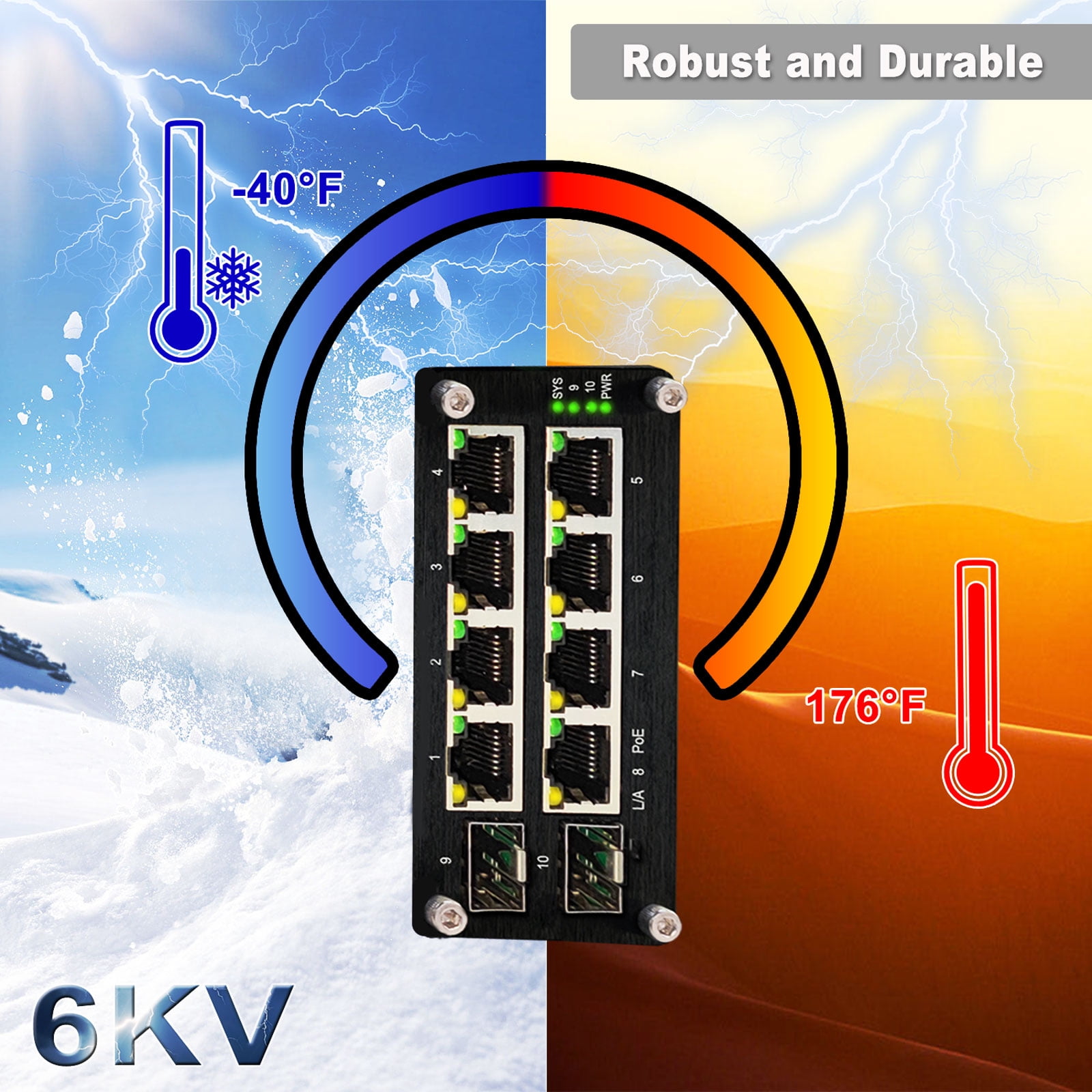

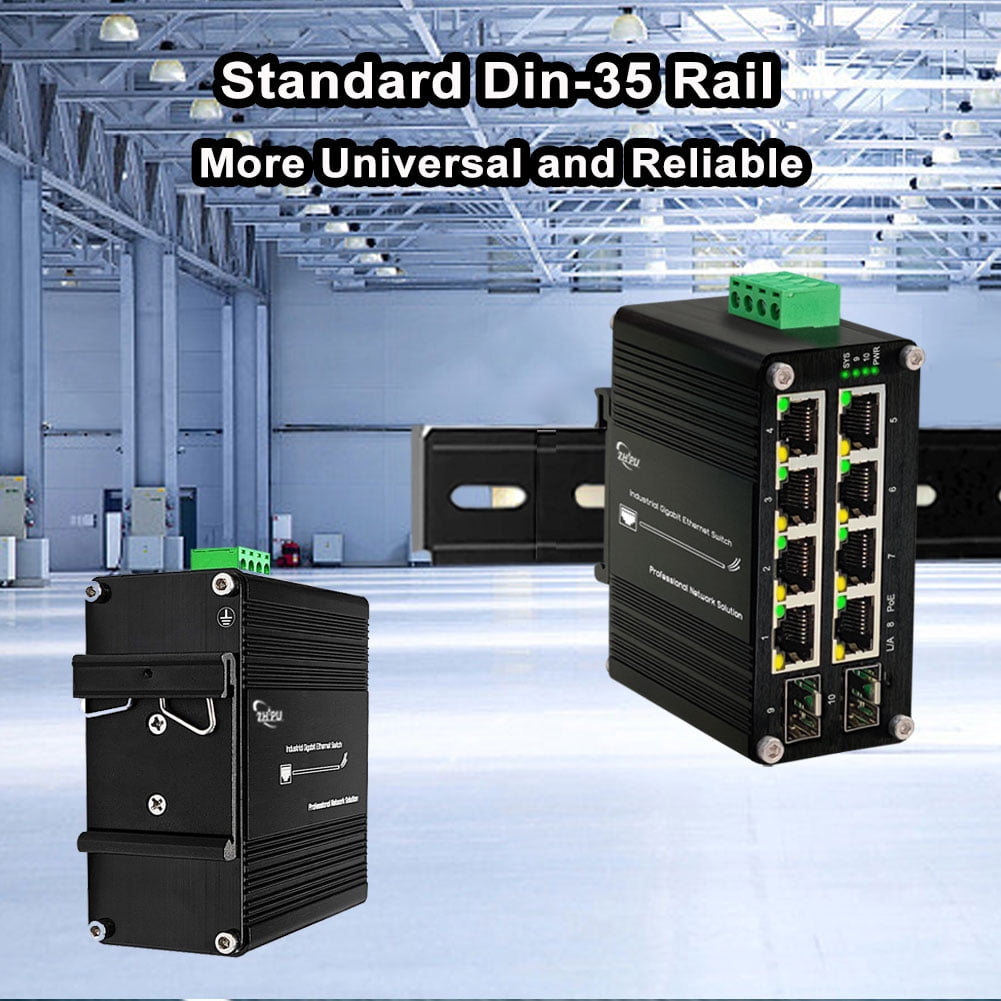

• [𝗥𝗼𝗯𝘂𝘀𝘁 𝗮𝗻𝗱 𝗗𝘂𝗿𝗮𝗯𝗹𝗲 𝗗𝗲𝘀𝗶𝗴𝗻]—Featuring the industrial-grade case and supporting for DIN Rail, it can work in harsh conditions(-40°F to 176°F).
• [𝗔𝗳𝘁𝗲𝗿-𝗦𝗮𝗹𝗲-𝗦𝗲𝗿𝘃𝗶𝗰𝗲]—We offer a 2-year warranty and lifetime technical support，committed to providing you with a reliable networking solution.
• [𝗡𝗼𝘁𝗲!!!]—The Web address of the product is unique, can't be modified.
