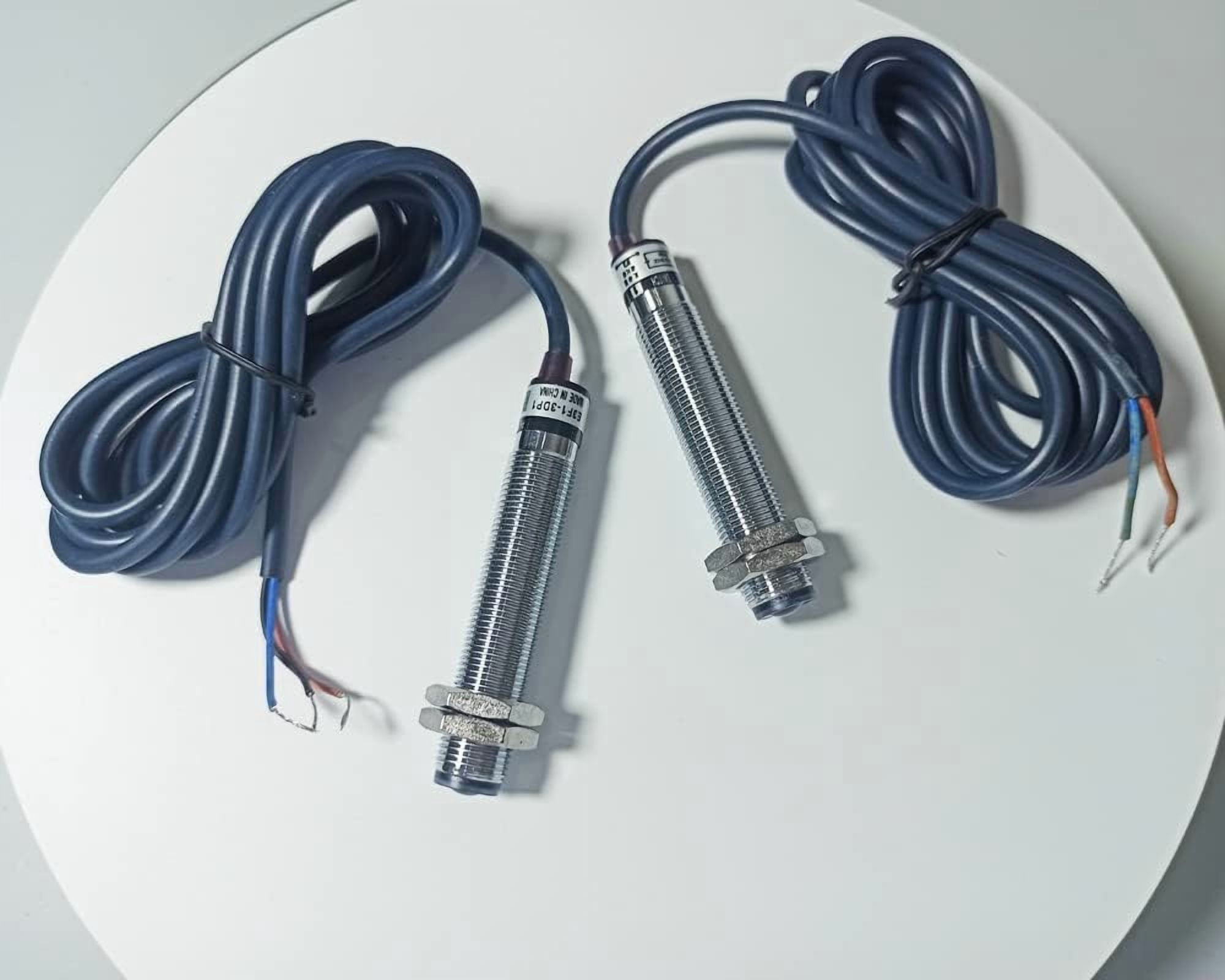

ATO Photoelectric Switch Sensor, M12 Through-Beam Reflection Optical Photoelectric Beam Sensor,PNP NO 6-36VDC ,Infrared light 660nm

<p>ATO photoelectric sensor that includes a separate light projector and receiver for optimal performance. This sensor operates on a flexible range of supply voltages, including DC 12V-24V and AC 110V-220V. Utilizing infrared technology, it can effectively identify opaque reflective objects and offers detection distances of 5, 15, or 50 meters, catering to various operational needs. Additionally, the sensor is designed to resist interference, ensuring long-lasting, reliable operation. Ideal for automation and industrial applications, ATO through beam photoelectric sensor provides precise, dependable detection you can count on.</p>

• Detection target：Opaque object Detection range regulation：Fixed Response time：1ms Connection delay：1.5ms Power supply：DC 12-24V (6-36V), impulse (p-p) 10% below Withstand voltage：AC1000V 50/60Hz 1min between charging part and housing Voltage influence：Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance Consumption current：N/P type: ≤20mA, A type: ≤1.7mA Control output：N/P type: ≤300mA, A type: ≤400mA, J type: ≤2A (contact service life: 0.1 million times) Loop protection：N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption Ambient temperature & humidity：Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH Temperature influence：Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance Insulation impedance：≥50MΩ (DC500 megameter) between charging part and housing Material：Housing: Nickel plated brass (ABS), Detection surface (lens): PMMA Cable length：1.2m Protection class：IP67
• safety：reverse power protection, short circuit protection, and current overload protection. These features ensure that the sensor will not be damaged in cases of incorrect wiring, short circuits, or overloads, thereby enhancing the system's reliability and durability. compatibility：The sensor can be directly connected with a PLC, simplifying the system integration process without the need for additional converters or intermediary devices, reducing costs and complexity. applications：sensors are suitable for various areas including position detection, liquid level control, product counting, width discrimination, speed detection, fixed-length cutting, hole recognition, signal delay, automatic door sensing, color scale detection, punching and cutting machines, and security areas for burglar alarms.
• Customer Satisfaction：If you have any questions about the specifications, product, or service, please feel free to email us. We'll respond to you within 12 hours.
