Inline PCIe x1 Card with 8X RS-232, D-Sub 9, Serial Interface Card, Industrial, Multi-Card Operation, Stable Data Transmission, 76660Z

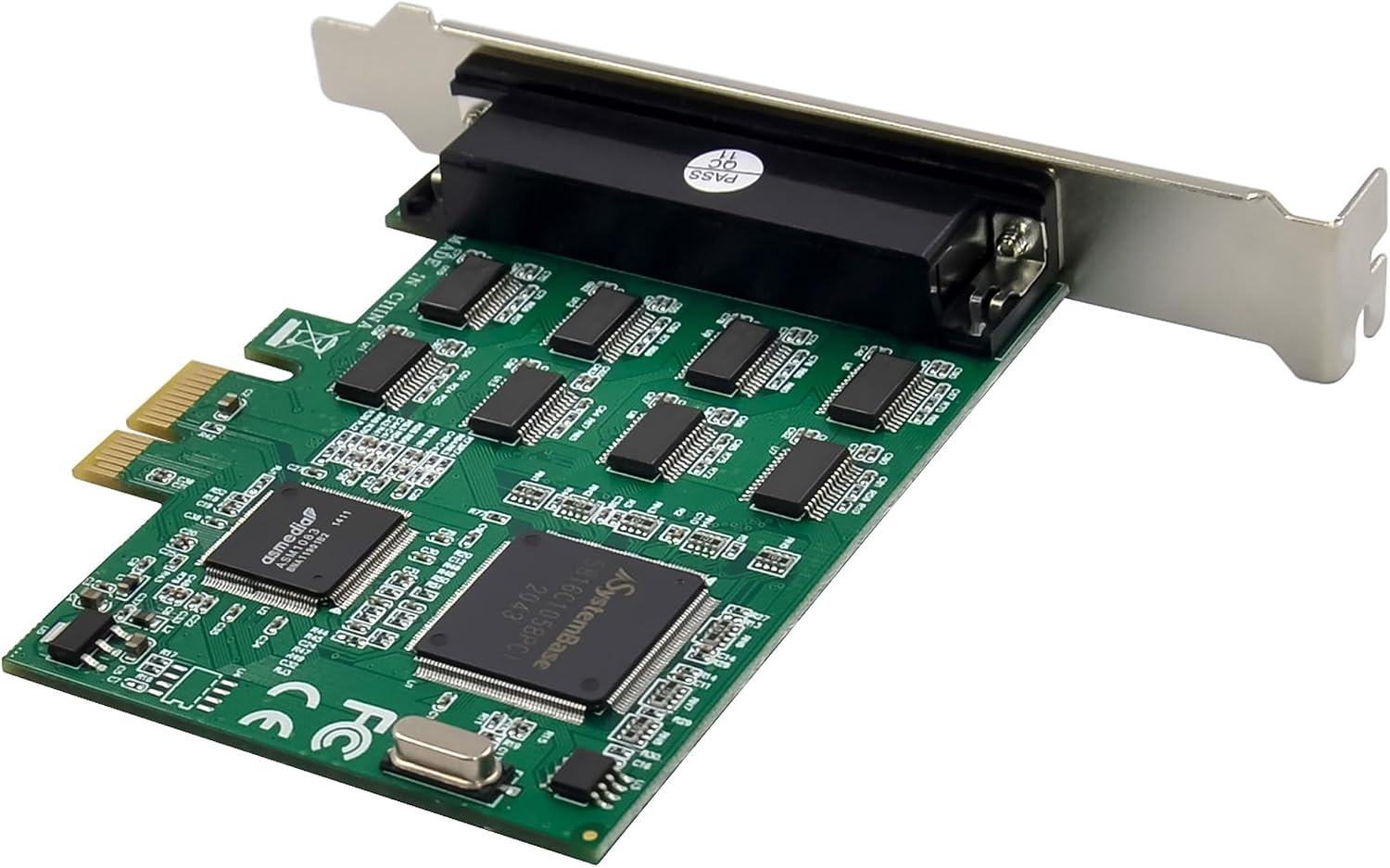

The InLine PCIe x1 8-Port RS-232 interface card is the ideal solution for expanding systems with serial ports. Equipped with the SB16C1058 controller, it offers eight independent D-Sub-9 ports for simultaneous connection of multiple devices. Each port has its own FIFO buffer with 256 bytes for transmitting and receiving, which allows reliable communication even under high data loads. The PCIe x1 connection complies with PCI Express 1.1 standard and is backward and upward compatible with PCIe 2.0 and above. This means that the card can be used universally in modern PCs, industrial PCs and embedded systems. It supports various data and stop bit settings, parity checking as well as hardware and software flow control. Features such as IRQ sharing and multi-card operation make the card particularly flexible in complex IT environments. With wide driver support for Windows and Linux systems and a robust design, the card is suitable for a wide range of professional applications, from POS systems to industrial controls to laboratory environments. It is ready to use and comes with driver CD and instructions. Additional Technical Specifications: PCIe standard: PCIe v1.1 x1-Lane (compatible with PCIe 2.0 and above) Interfaces: 8× RS-232, D-Sub 9 male connector Chipset: SB16C1058 Baud rates: up to 230.4 kb/s (maximum transfer speed per port) FIFO buffer: 256 bytes send/256 bytes reception per port (stable transmission). Data bits: 5, 6, 7 or 8 bits (user data bits per character). Stop bits: 1, 1.5 or 2 (marking of the end of the drawing). Parity: None, straight, odd (error detection by test bit). Flow Control: Hardware (RTS/CTS) and Software (XON/XOFF) IRQ sharing: supported. Multi-card operation: supported. Operating temperature: 0°C to 55°C. Storage temperature: -40°C to 70°C. Maximum humidity: 90%, non-condensing Windows 98 / ME / 2000 / XP / Server 2003 / Vista / 7 / Server 2008 Linux Kernel 2.6.14 or later Package includes: 1 x InLine PCIe x1 8-Port RS-232 interface card (with mounted slot bracket). 1 x driver CD. 1 x user manual in German/English.

• Advanced serial connectivity: Eight independent RS-232 ports allow parallel operation of a wide range of D-Sub 9 terminal devices.
• Reliable data transmission: 256 bytes of FIFO send and receive buffers per port ensure stable communication even under high loads.
• Versatile and compatible: Supports a wide range of operating systems from Windows 98 to Windows Server 2008 and Linux from Kernel 2.6.14.
• Industrial-grade flexibility: Hardware and software flow control, IRQ sharing and multi-card operation allow for use in complex systems.
• Easy integration via PCIe x1: The modern PCI Express 1.1 interface is compatible with current PC architectures and industrial setups.
